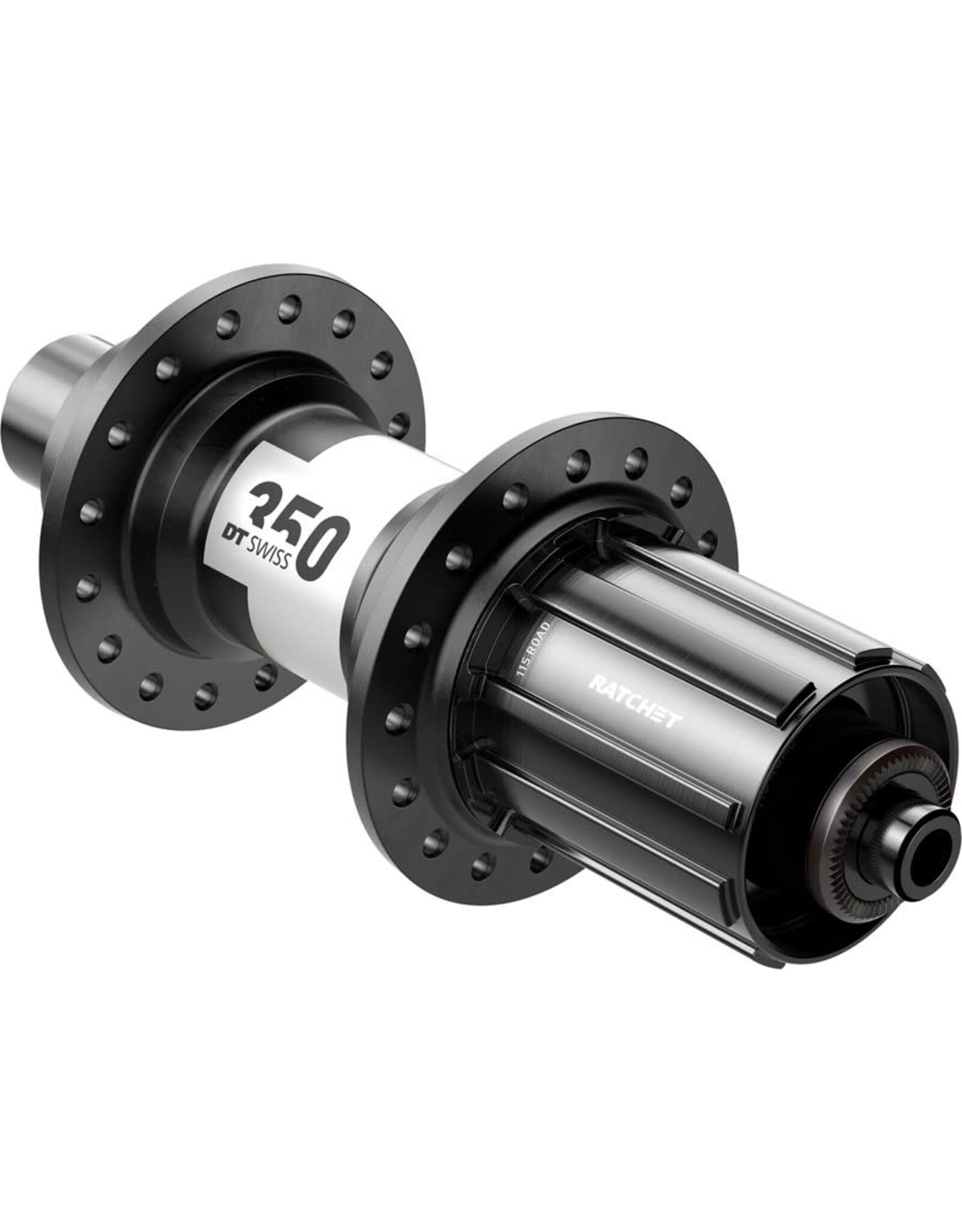

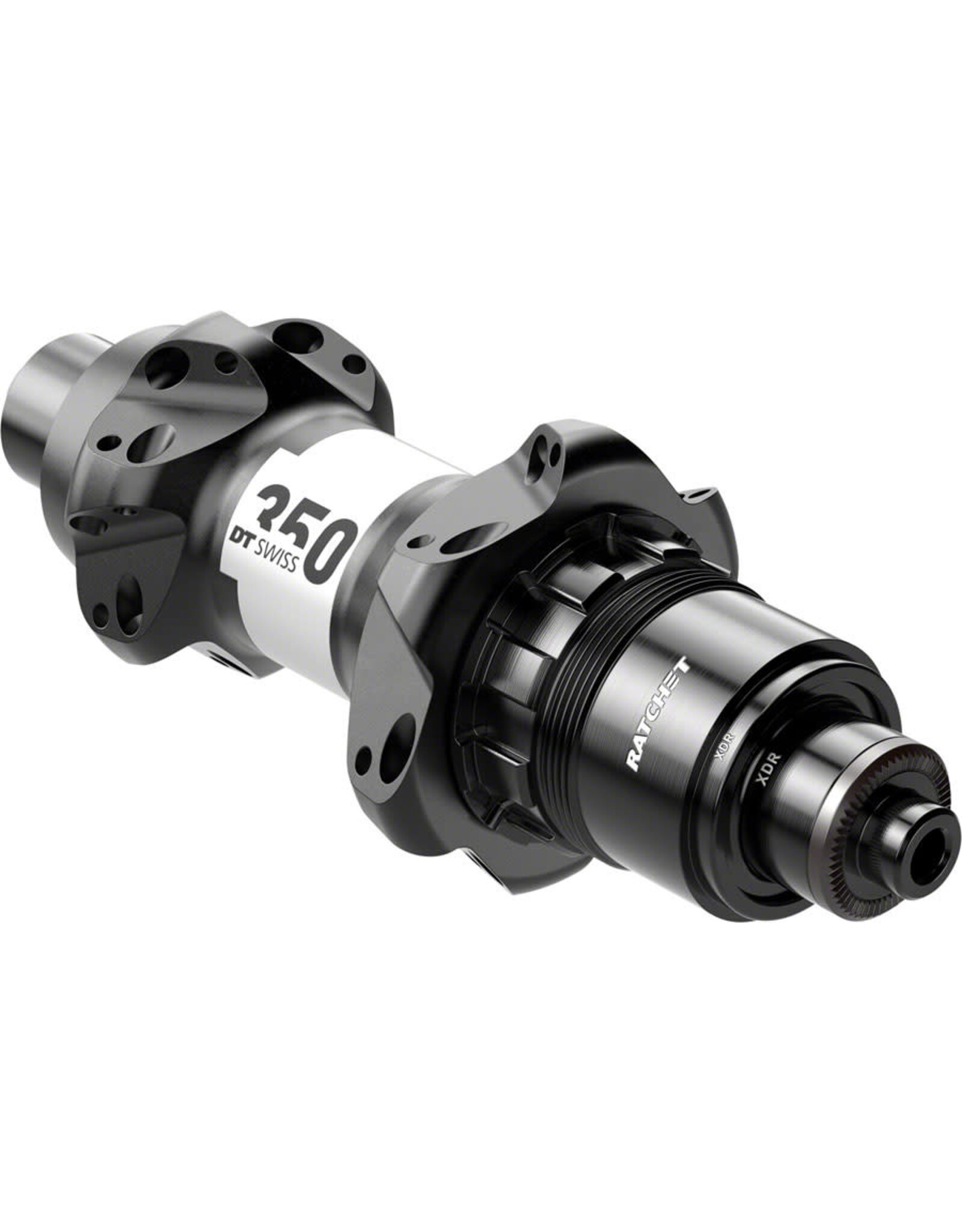

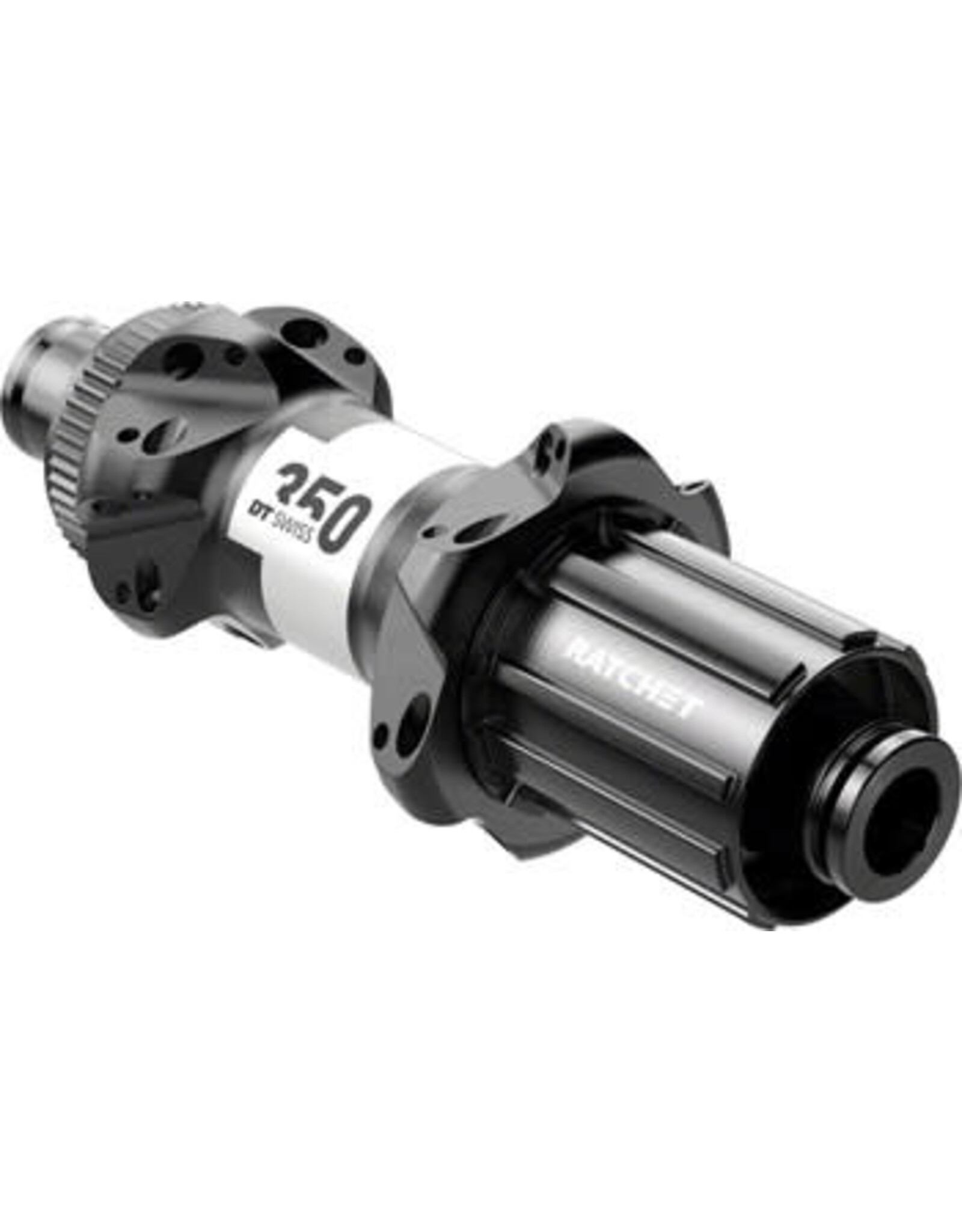

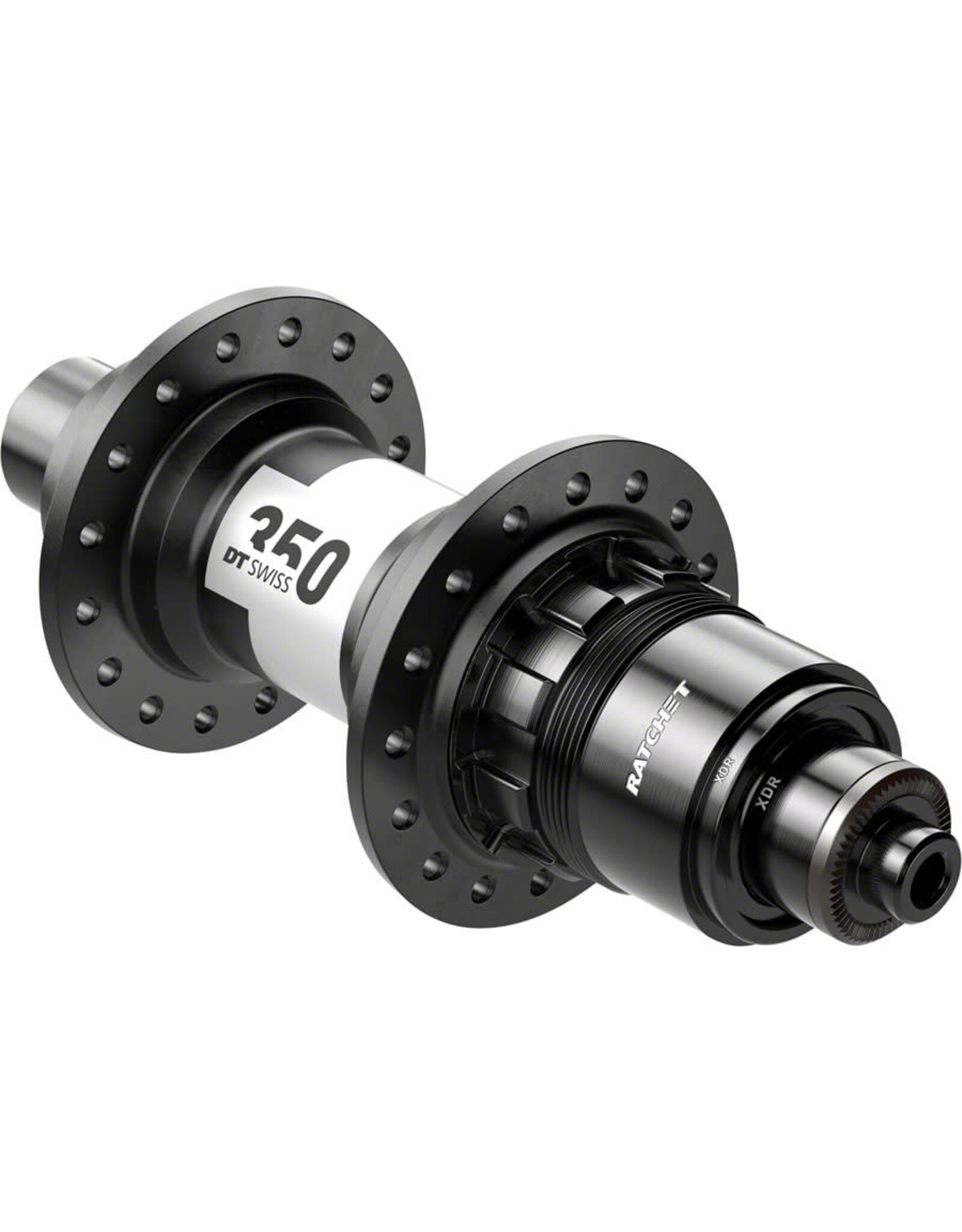

DT Swiss 350 Road Rear Hub
| Article number: | 09-01-05 |
| Availability: | In stock (4) |
The updated DT Swiss 350 hub is lighter, thanks to a redesigned shell, axle, and Ratchet SL freehub. Reliability and simplicity are its core, making maintenance easy. It inherits DT 240 features at a budget-friendly price, with standard bearings and spoke pattern for easy servicing. Opt for the 54-tooth ratchet for quick engagement or the Rapid Drive rings for a performance boost.
Backed by a 2 year warranty against defects in materials and workmanship, DT hubs are some of the best available at a very reasonable price.
WHEEL BUILDING
Trust a skilled wheelbuilder for DT Swiss hub wheels. Please contact us for expert service and rim/spoke advice.
| J-Bend | Straight-Pull | |||||
| Weight | ~238g | ~232g | ||||
| Spoke Holes | 24 / 32 | 24 | ||||
| Axle Standard | 5 mm x 130 mm | |||||
| Bearings Size | 6902 - (2) | |||||
| Brake Interface | Rim Brake Only | |||||
| Freehub Body Options | Shimano 11 / SRAM XDR | |||||
| Freehub System | 36t SL Ratchet | |||||
| -- Wheel Building Dimensions -- | ||||||
| Flange Diameter Left | 46 mm | 38.7 mm | ||||
| Flange Diameter Right | 46 mm | 46.2 mm | ||||
| Center to Left Flange | 34.1 mm | 33.9 mm | ||||
| Center to Right Flange | 16.3 mm | 15.3 mm | ||||
| Spoke Hole Diameter | 2.6 mm | 2.5 mm | ||||
| Spoke Hole Offset L / R | 1.8 mm | 0.4 mm | ||||
