Extralite QRC 3 Crankset
| Article number: | 025-01-01 |
| Availability: | Out of stock |

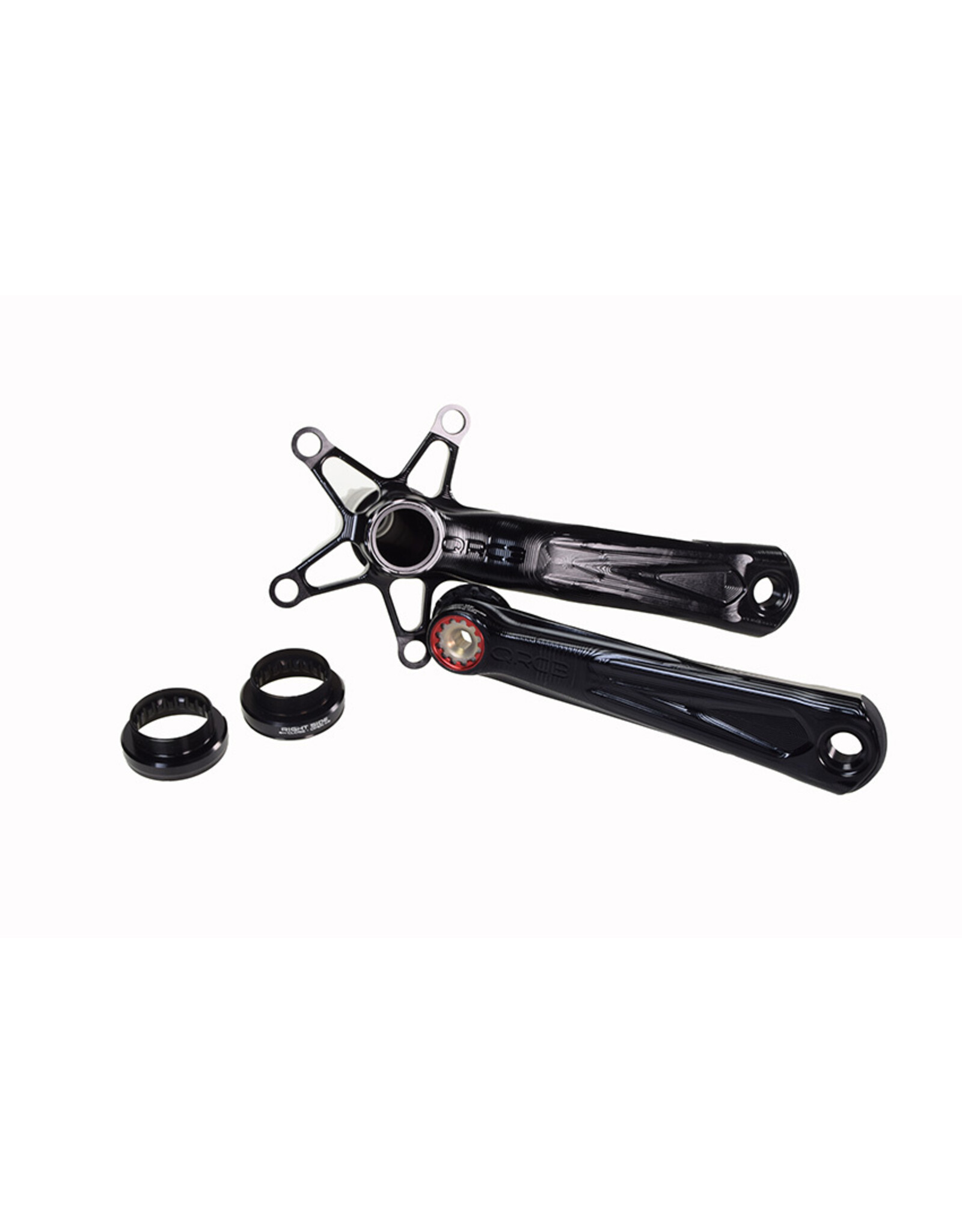

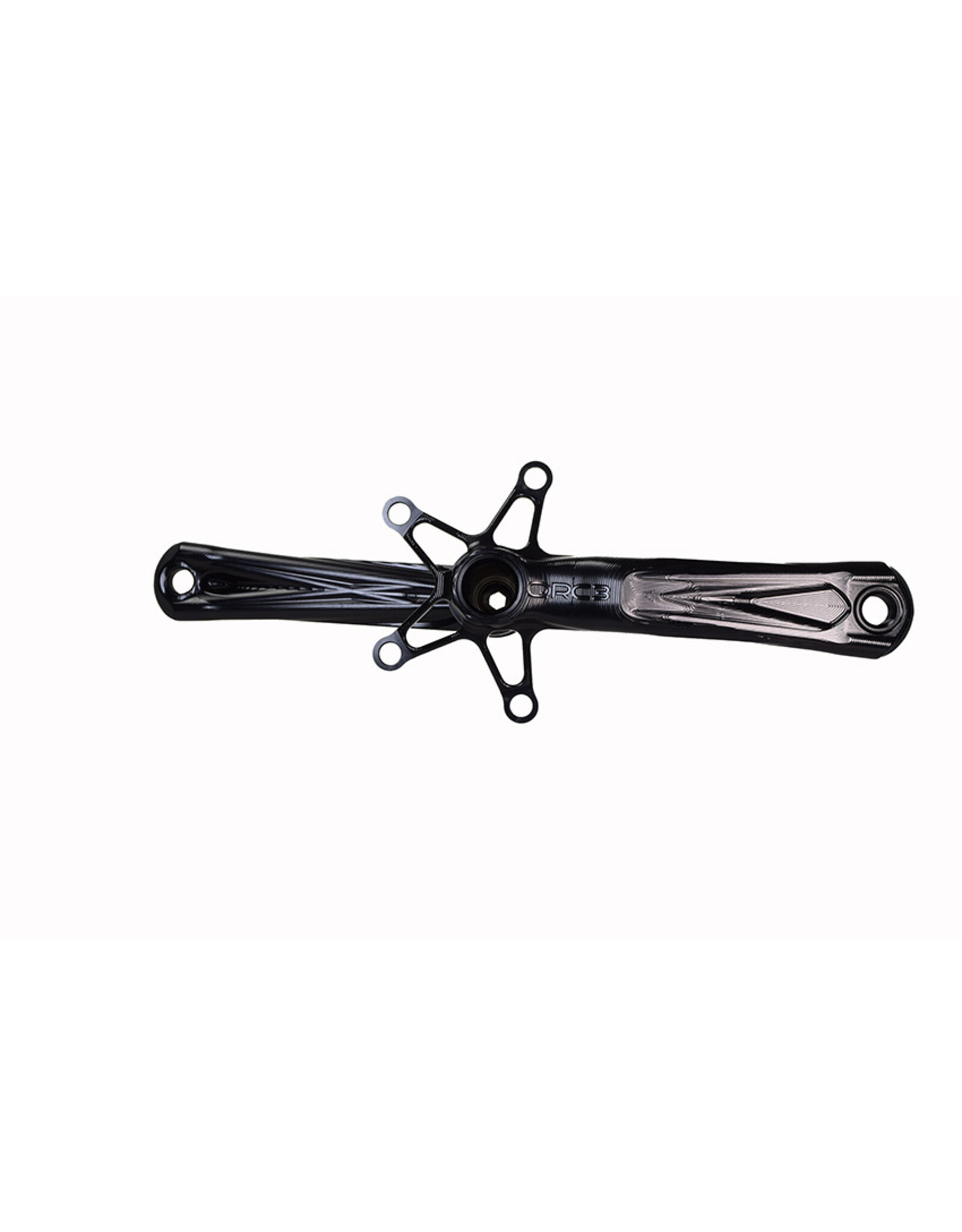

The Extralite QRC 3 is designed and developed with the meticulous skill and precision that Extralite is known for. Each crank is carefully made using a time consuming point-to-point 5-axis 3D milling technology, allowing more freedom in multi dimensional design. This leaves us with highly refined cranks that are the perfect marriage between lightness, elegance, and art.
Aero-Nose

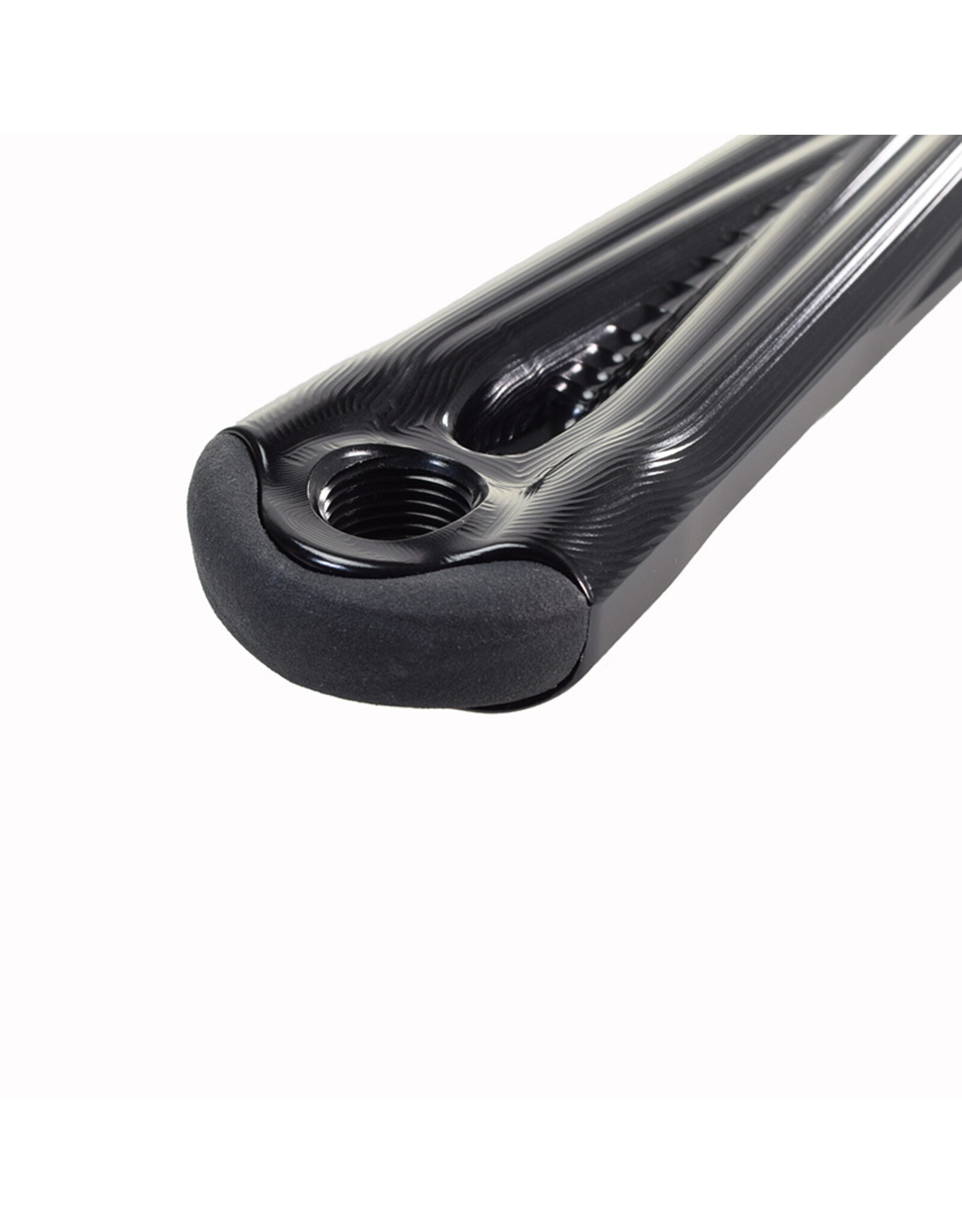

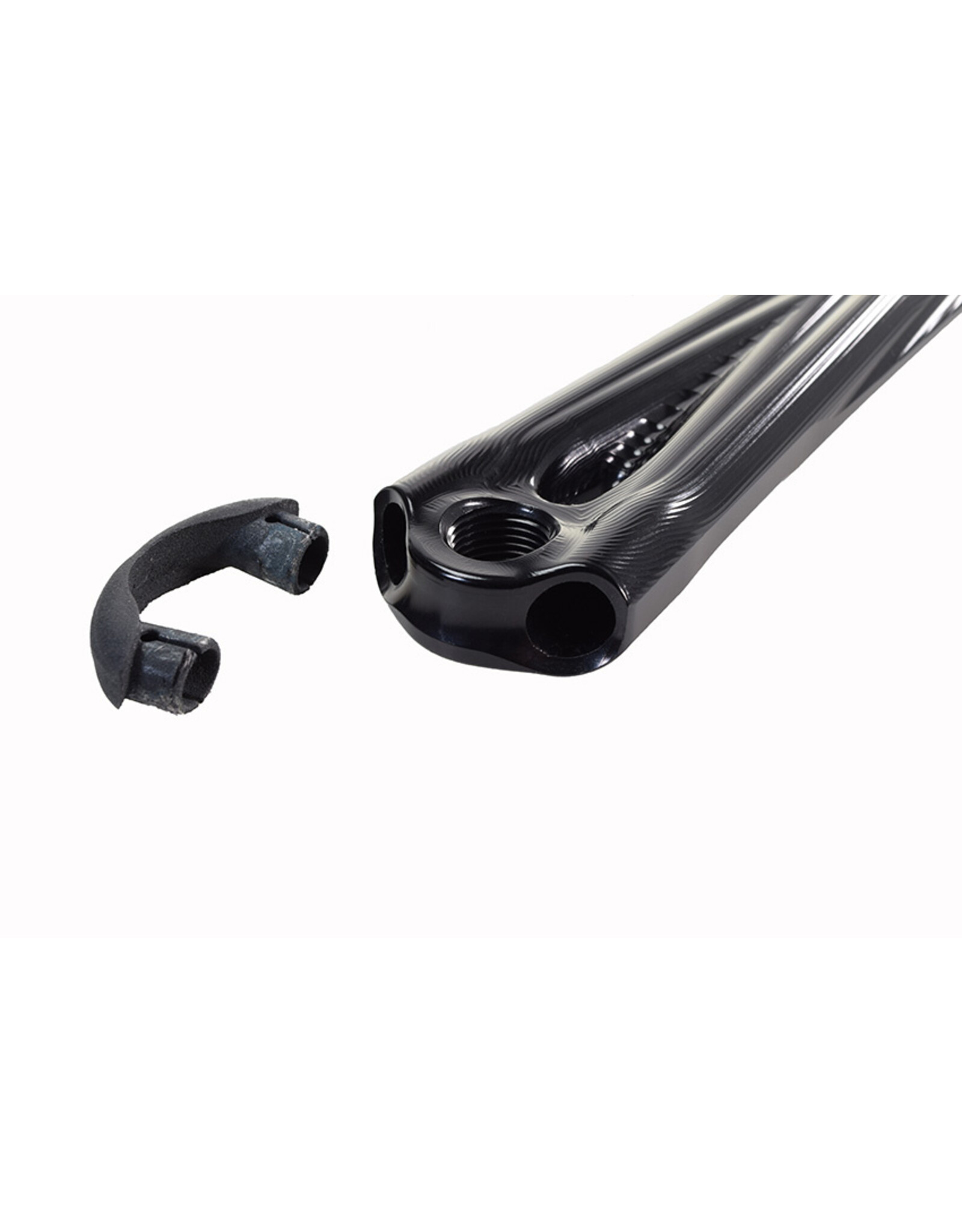

The Aero-Nose is a 3D printed nylon cover that is specific to QRC 3 cranks. It is not essential, but is useful to increase aerodynamics, and help prevent dirt intrusion.
Bottom Bracket

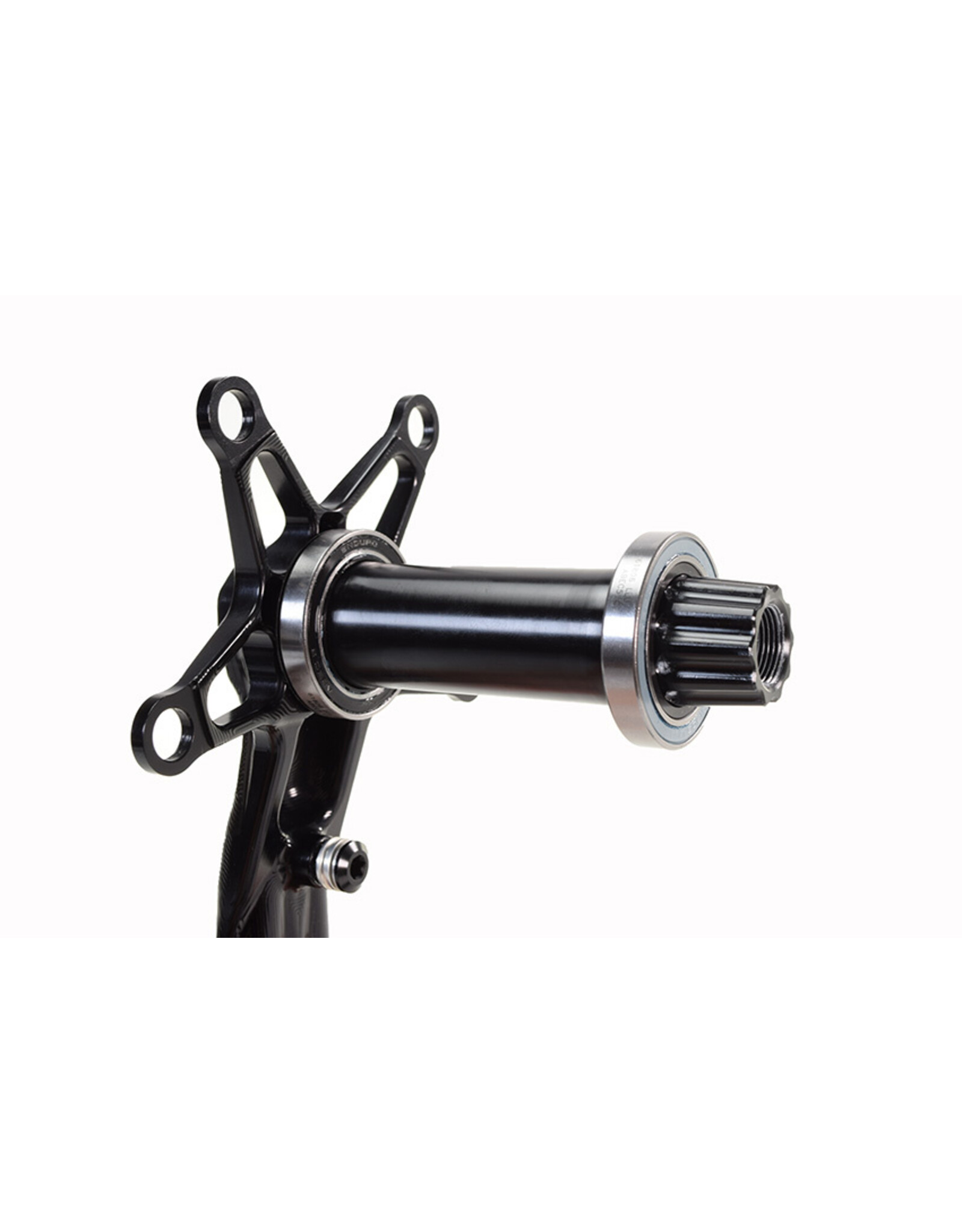

QRC 3 cranksets come stock with two 6806 steel bearings, but without bottom bracket cups. Go here to choose the cup set that works with your set up. Need help figuring out which bottom bracket you need? Contact us, and we will be happy to assist you.
Extralite QRC 3 Crankset is currently only available in the 170mm length
| Crankset | 170 mm |
| Weight | ~359g (w/o Bottom Bracket & Aero-Nose) |
| BCD | 110 mm |
| Q-Factor | 142 mm |
| Chainline | 44 mm |
| Spindle | 30 mm (Drive / Non-Drive) |
| Bottom Bracket | 30-42 mm Low Friction Seals, Steel |
| Finish | Black Anodized |
| Aero-Nose | ~1.8g per side |
