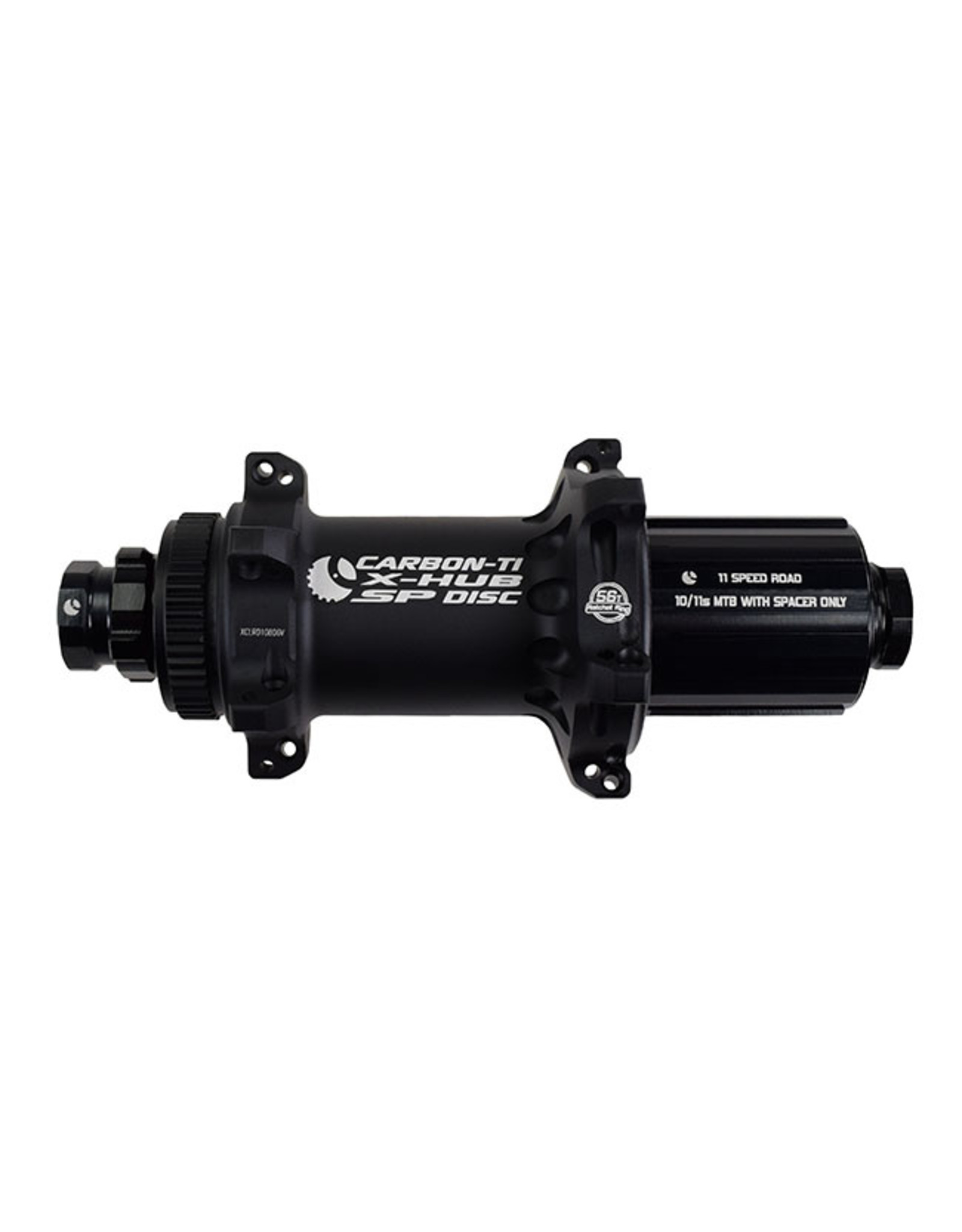

Carbon-Ti X-Hub SP Centerlock Rear Disc Hub
| Article number: | 008-05-01 |
| Availability: | In stock |
The Carbon‑Ti Rear SP Centerlock X-Hub delivers ultra-lightweight performance engineered for modern disc-brake road, gravel, and cyclocross wheel builds. Machined entirely from 7075-T6 aluminium in Italy, the body and axle integrate precision CNC construction with a toolless external preload ring for effortless bearing preload adjustment. Paired with a 56-tooth titanium engagement ring and 4 pawl system, it offers rapid engagement and durable reliability. The hub accepts multiple freehub options (Shimano/SRAM standard 11-speed, SRAM XDR, Campagnolo N3W, Shiumano MicroSpline) making it a highly flexible choice for high-end builds.
Technical wheel-builder specs include left flange 48 mm / right flange 54.5 mm, centre-to-flange 36/18 mm, straight-pull 2.5 mm ― all optimized for stiffness in a lightweight package. With a claimed weight of ~189 g, this hub allows elite wheelbuilders to minimise rotational mass without compromising serviceability or longevity.
WHEEL BUILDING
Trust a skilled wheelbuilder for your Carbon-Ti built wheels. Contact us for custom wheels, we offer expert service and rim / spoke advice.
| Weight | ~189g | |
| Spoke Holes | 24h | |
| Axle Standard | 12 x 142 mm | |
| Bearing Size | 6903 - (1) / 6803 - (1) | |
| Brake Interface | Centerlock | |
| --Wheel Building Dimensions-- | ||
| LEFT | RIGHT | |
| Flange Diameter | 48 mm | 54.5 mm |
| Center to Flange | 36 mm | 18 mm |
| Spoke Hole Offset | 2.0 mm | |
| Spoke Hole Diameter | 2.5 mm | |
For the matching front version, see the Carbon-Ti X-Hub SP Centerlock Front Hub
or
Check out the hubset for easier ordering
| ___________________: | ________________________ |
| Spoke Hole: | • 24 |
| Axle Standard: | • 12 mm x 142 mm |
| Hub Interface: | • Straight-Pull |
| Brake Interface: | • Centerlock |
| Material: | • 7075-T6 Aluminium |
