ENVE Fray Frameset / Chassis / Bike
ENVE Fray Consultations
Our Park Avenue Studio helps riders confirm ENVE Fray sizing, check availability, and plan complete all-road builds.
Call our Park Ave. Studio to discuss fit, drivetrain configuration, cockpit sizing, wheel and tire selection, and build direction.
• Contact & hours for our Park Avenue Studio and 6th Street Location
The ENVE Fray is an all-road platform built for riders who want road-bike speed without limiting where a route can go. Its aero-influenced carbon chassis combines endurance-oriented fit, responsive handling, wider tire clearance, integrated storage, and mounting options for rides that move between fast pavement, rough roads, and light gravel.
Geometry is optimized around 31–35 mm tires, while additional clearance allows substantially larger mixed-surface setups. Combined with ENVE’s integrated cockpit options, SES wheels, Cargo Bay storage, and size-specific fork rake, the Fray can be configured anywhere from a fast endurance road bike to a capable all-road machine.
ENVE Fray Overview
Ride Character
- Fast, composed all-road handling
- Road efficiency with added mixed-surface capability
- Designed for long rides, fondos, rough pavement, and fast gravel
Fit & Geometry
- Seven frame sizes from 47 through 60 cm
- Four size-specific fork rakes
- Endurance-oriented fit with responsive road handling
Clearance & Storage
- Optimized around 31–35 mm tires
- Up to 40 mm with 1x / 38 mm with 2x
- Integrated Cargo Bay plus top-tube and downtube mounts
Fray Fit & Build Setup
The Fray can be configured around a wide range of road and mixed-surface priorities. Frame size, cockpit dimensions, drivetrain choice, wheel depth, and actual inflated tire width should be considered together so the finished bike matches the rider’s position and intended terrain.
Cockpit & Fit
- ENVE IN-Route internal cable routing
- Handlebar, stem, and seatpost selected independently
- Seven frame sizes support detailed fit refinement
- Professional fit guidance recommended when between sizes
Drivetrain & Tire Setup
- Compatible with appropriate electronic and mechanical configurations
- UDH rear derailleur interface
- 1x setups allow the largest tire clearance
- Actual inflated tire width should always be confirmed
ENVE Fray Platform Notes
| Category | All-Road / Endurance / Mixed Surface |
| Frame Material | ENVE M.O.D. Carbon |
| Frame Weight | 900 g ±2%, Size 56, Painted, No Hardware |
| Frame Sizes | 47 / 50 / 52 / 54 / 56 / 58 / 60 cm |
| Minimum Tire Size | 27 mm |
| Optimal Tire Size | 31–35 mm |
| Maximum Tire Clearance | 40 mm 1x / 38 mm 2x |
| Bottom Bracket | T47 Inboard, 85.5 mm Shell |
| Derailleur Hanger | UDH Compatible |
| Seatpost | ENVE Aero |
| Routing | Internal |
| Storage | ENVE Cargo Bay with Two Included Storage Bags |
| Bottle Capacity | Up to 3 |
| Additional Mounts | Top Tube + Downtube |
| Fender Compatible | Yes |
| Maximum Rider Weight | 136 kg / 300 lb |
| Build Direction | Fast Road / Fondo / All-Road / Light Gravel |
Fair Wheel Bikes ENVE Fray Build
A real-world Fray setup from Fair Wheel Bikes with component choices, fit considerations, and build details.
ENVE Fray Colors
MY26: Perfect Purple | Clear Smoke | British Racing Green
Carry-forward: Agave Blue | Toffee Brown | GT Silver | Ash
MY26 Fray Colors

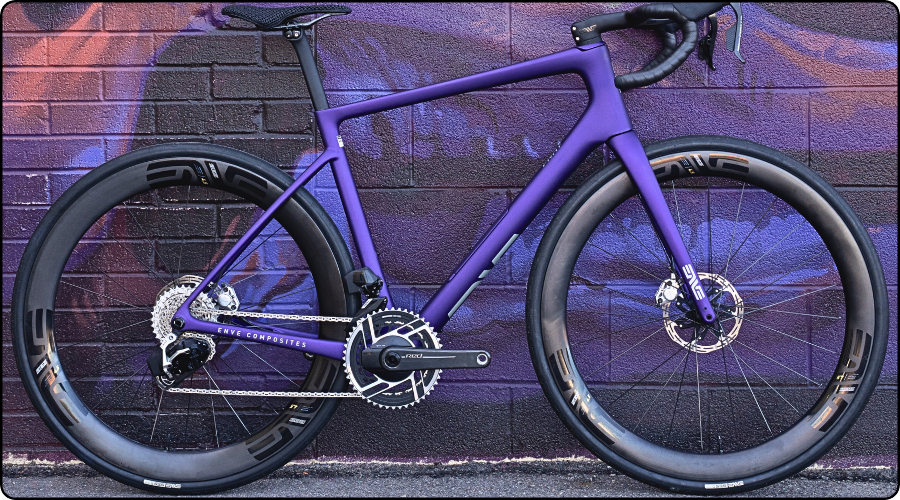

Perfect Purple
Clear Smoke

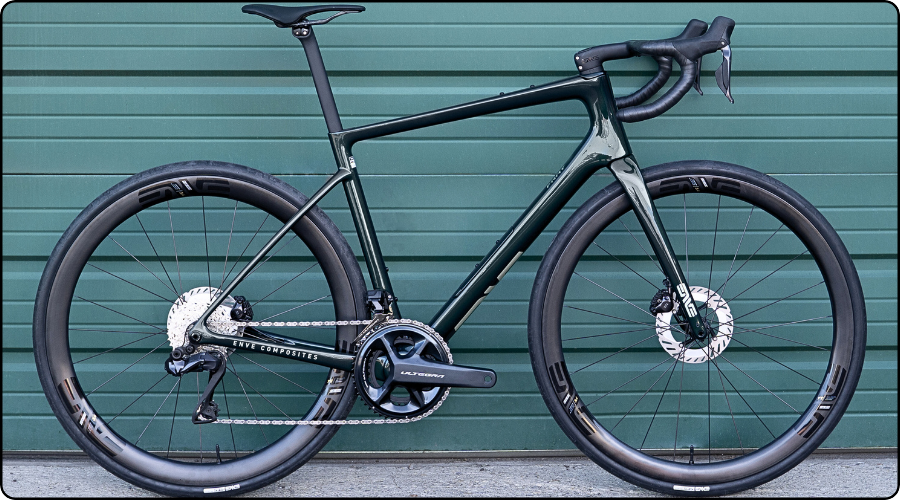

British Racing Green
Carry-Forward Fray Colors

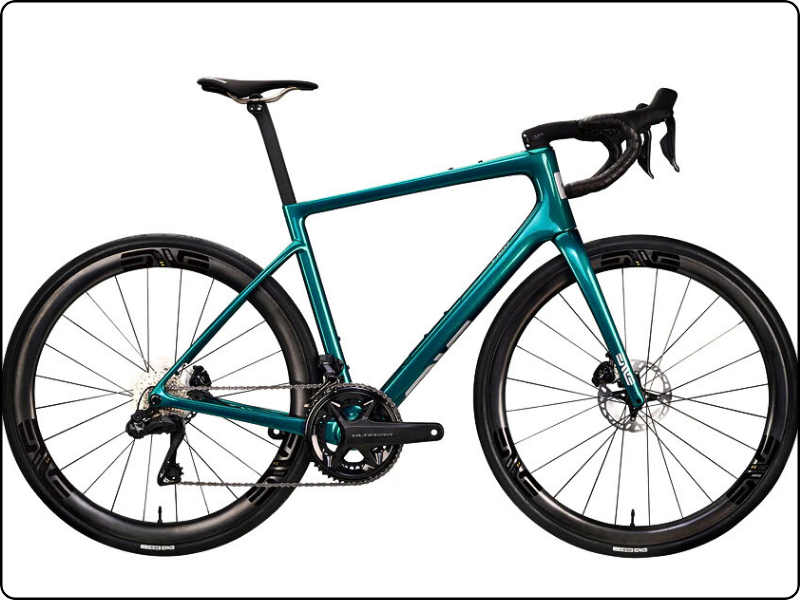

Agave Blue

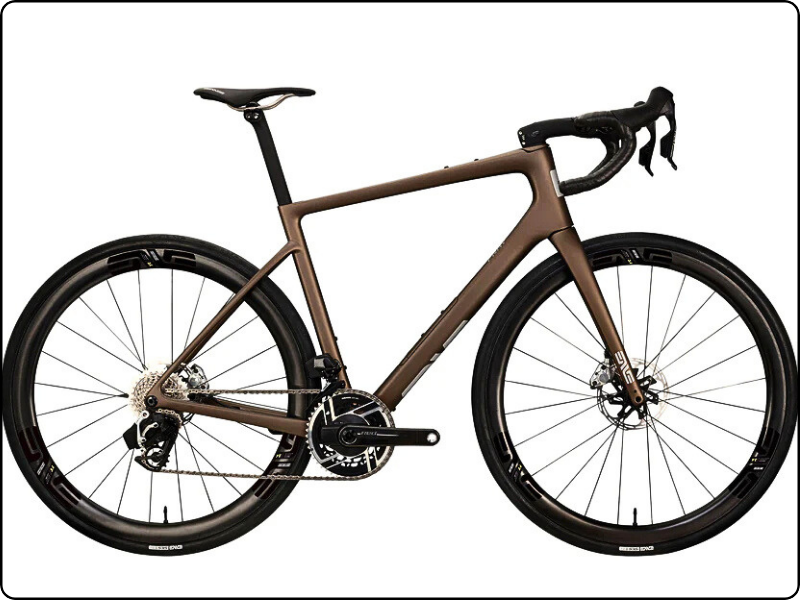

Toffee Brown

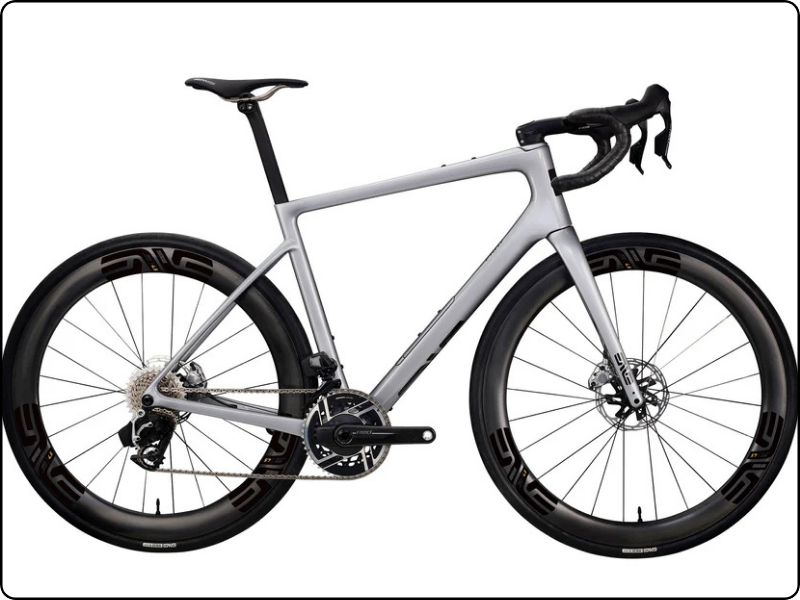

GT Silver

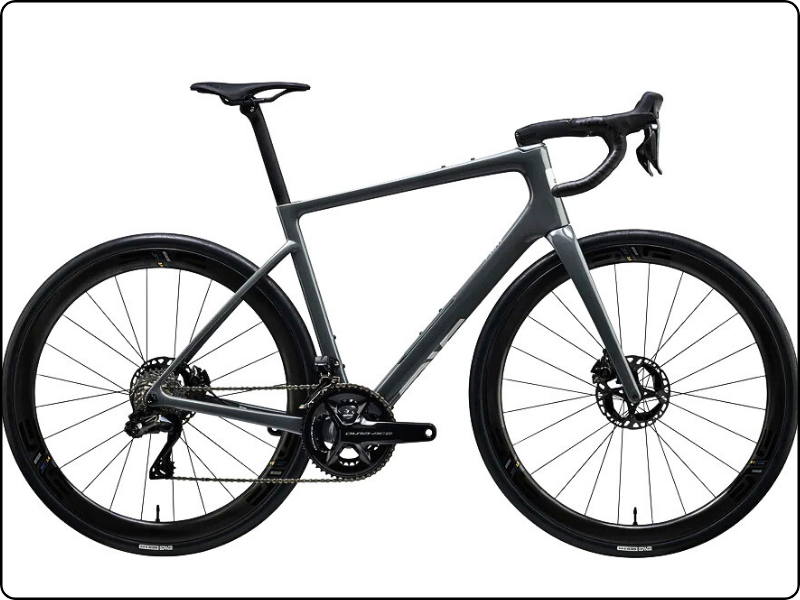

Ash
Fair Wheel Bikes ENVE Builds
ENVE Builds on the Blog
See Fair Wheel Bikes custom ENVE builds, component selections, and finished-bike features.
More Fray Videos
Watch additional Fair Wheel Bikes Fray builds and bike features on our YouTube channel.
Contact Fair Wheel Bikes to discuss ENVE Fray availability, sizing, drivetrain configuration, wheel and tire selection, and complete build options.
