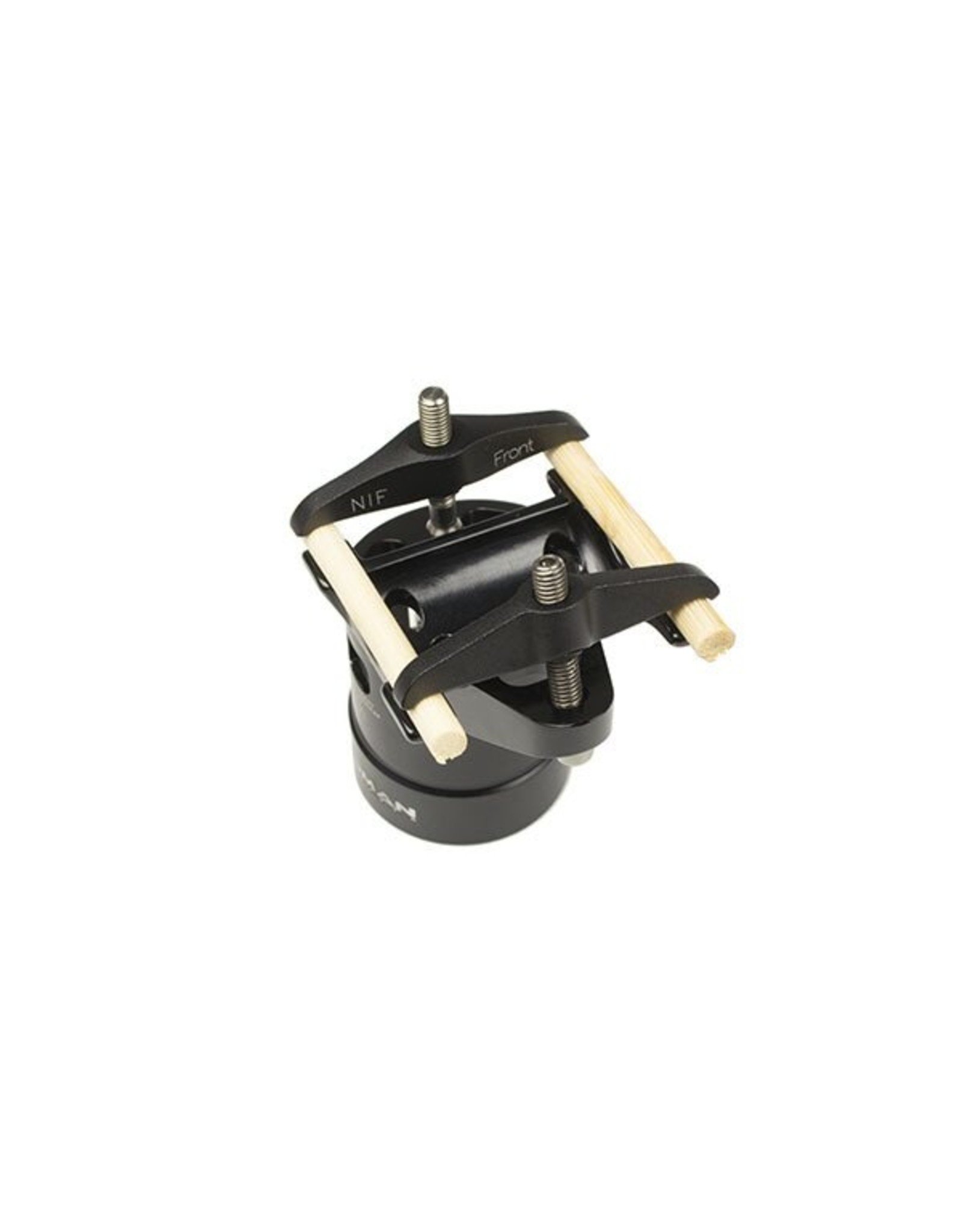

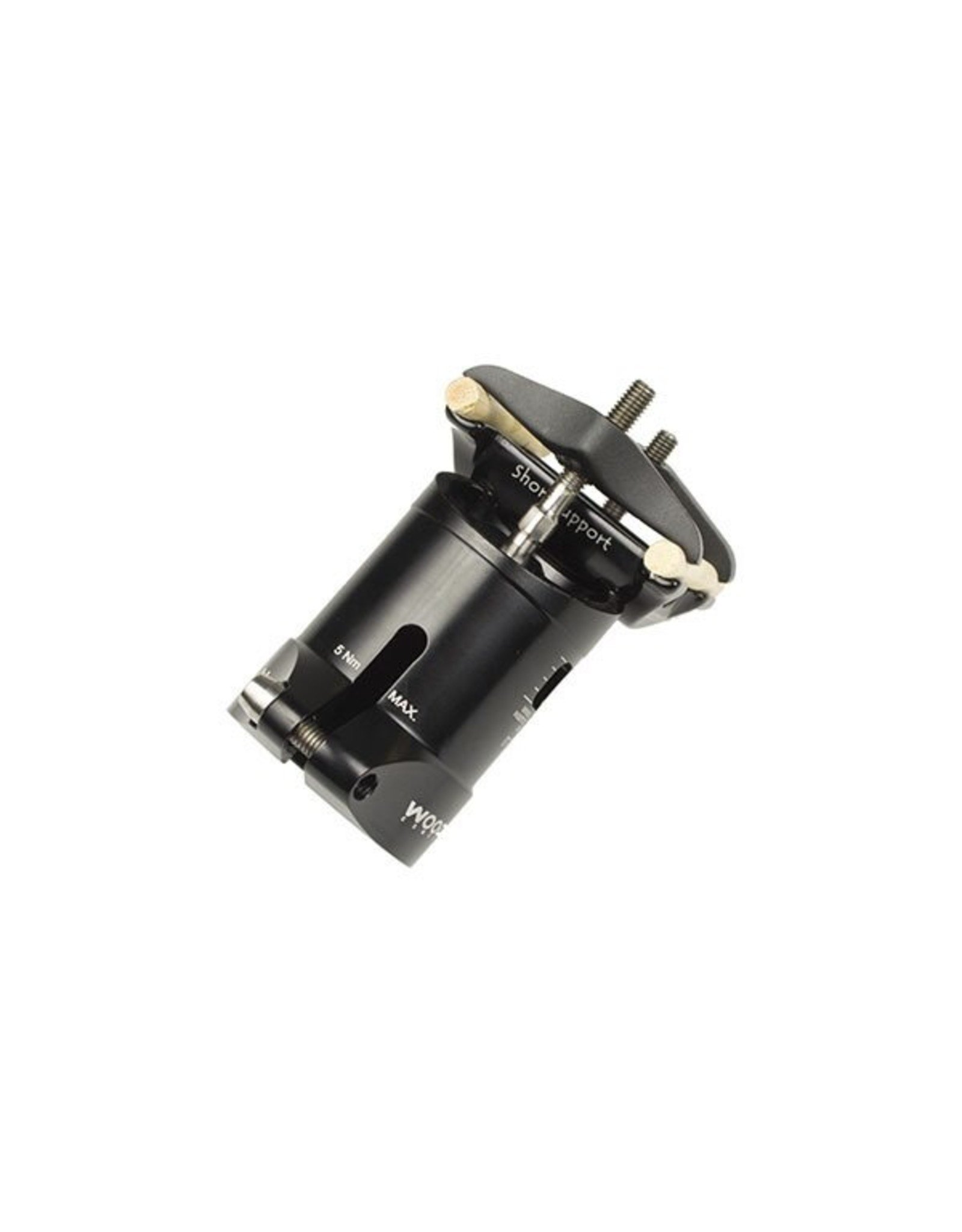

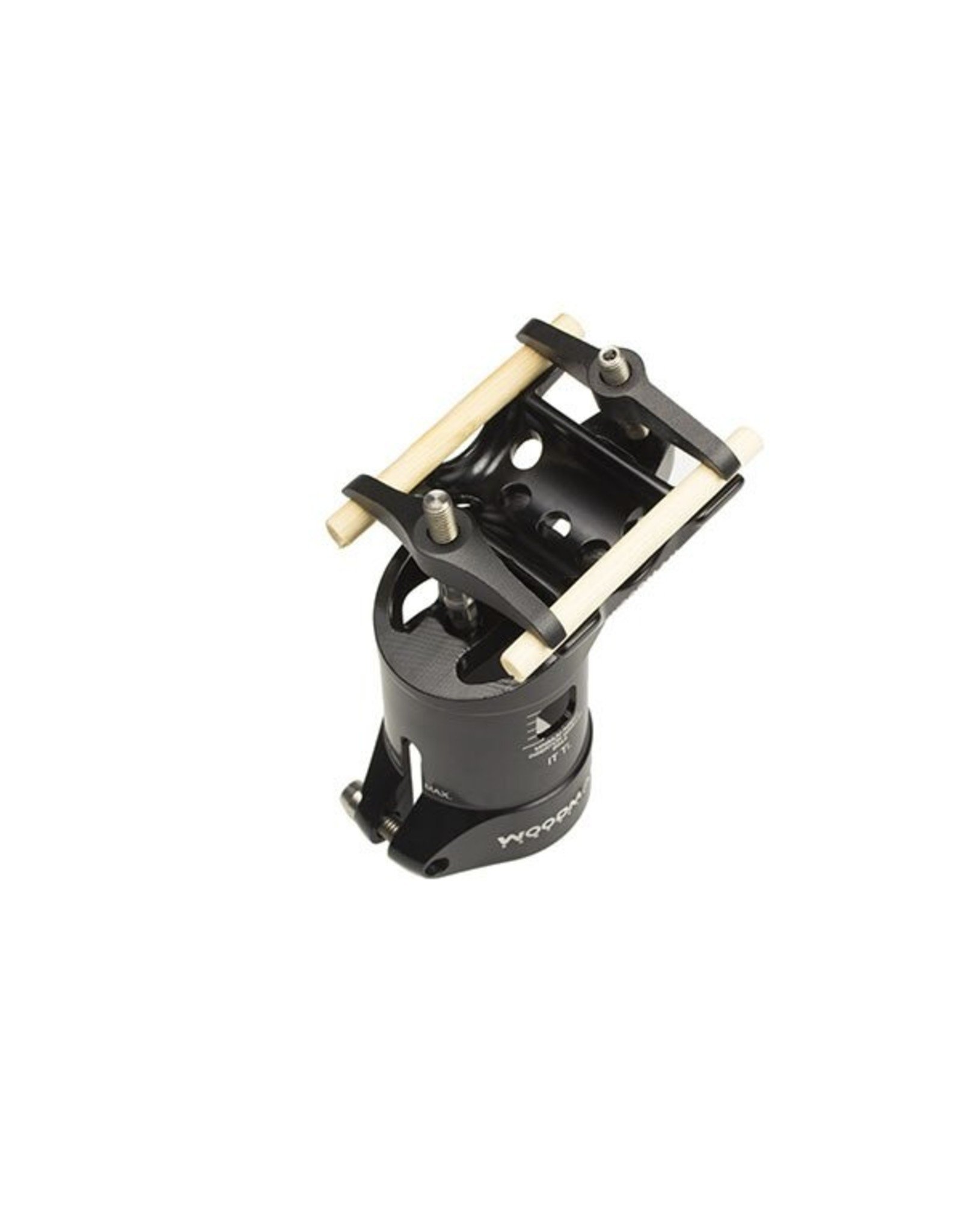

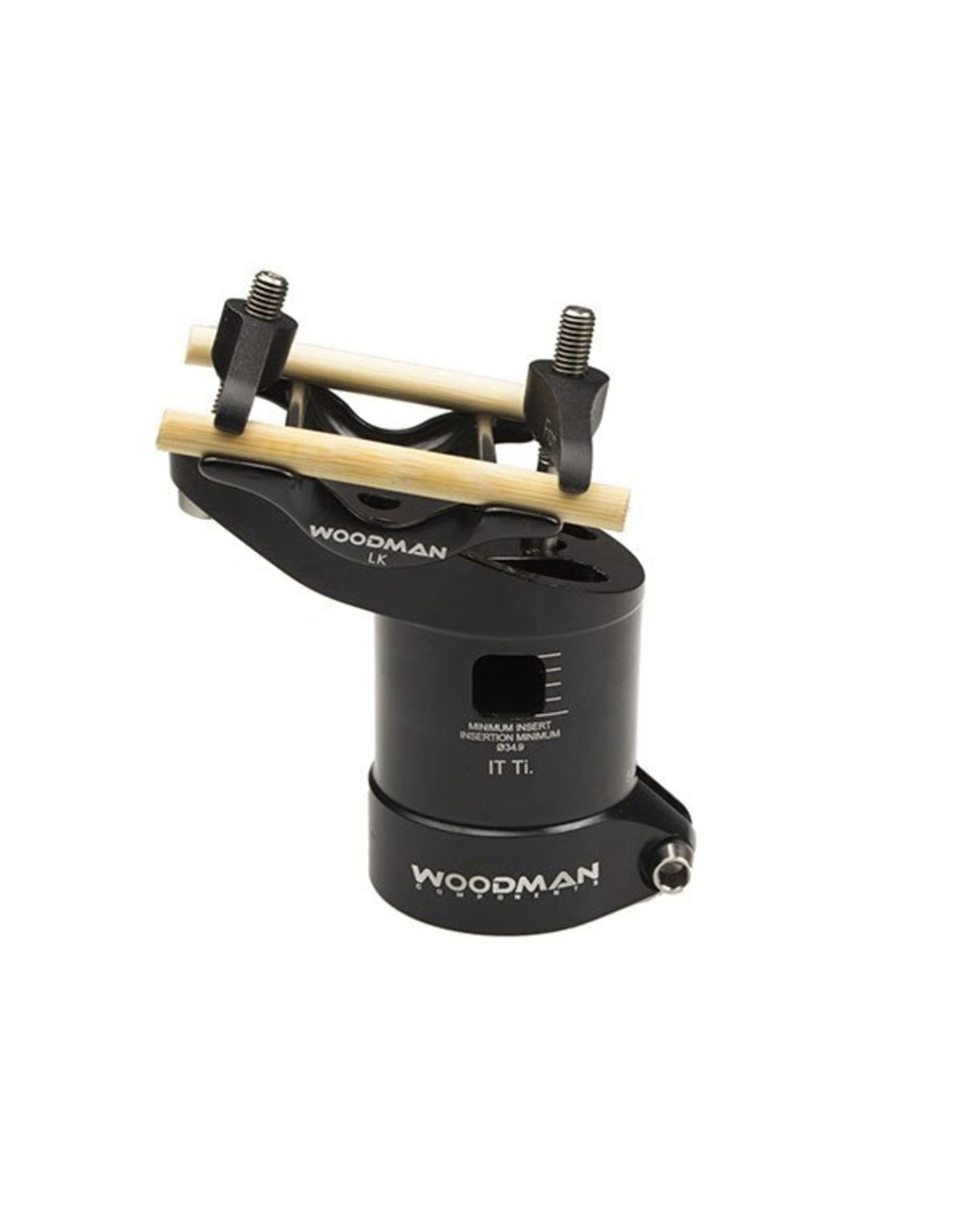

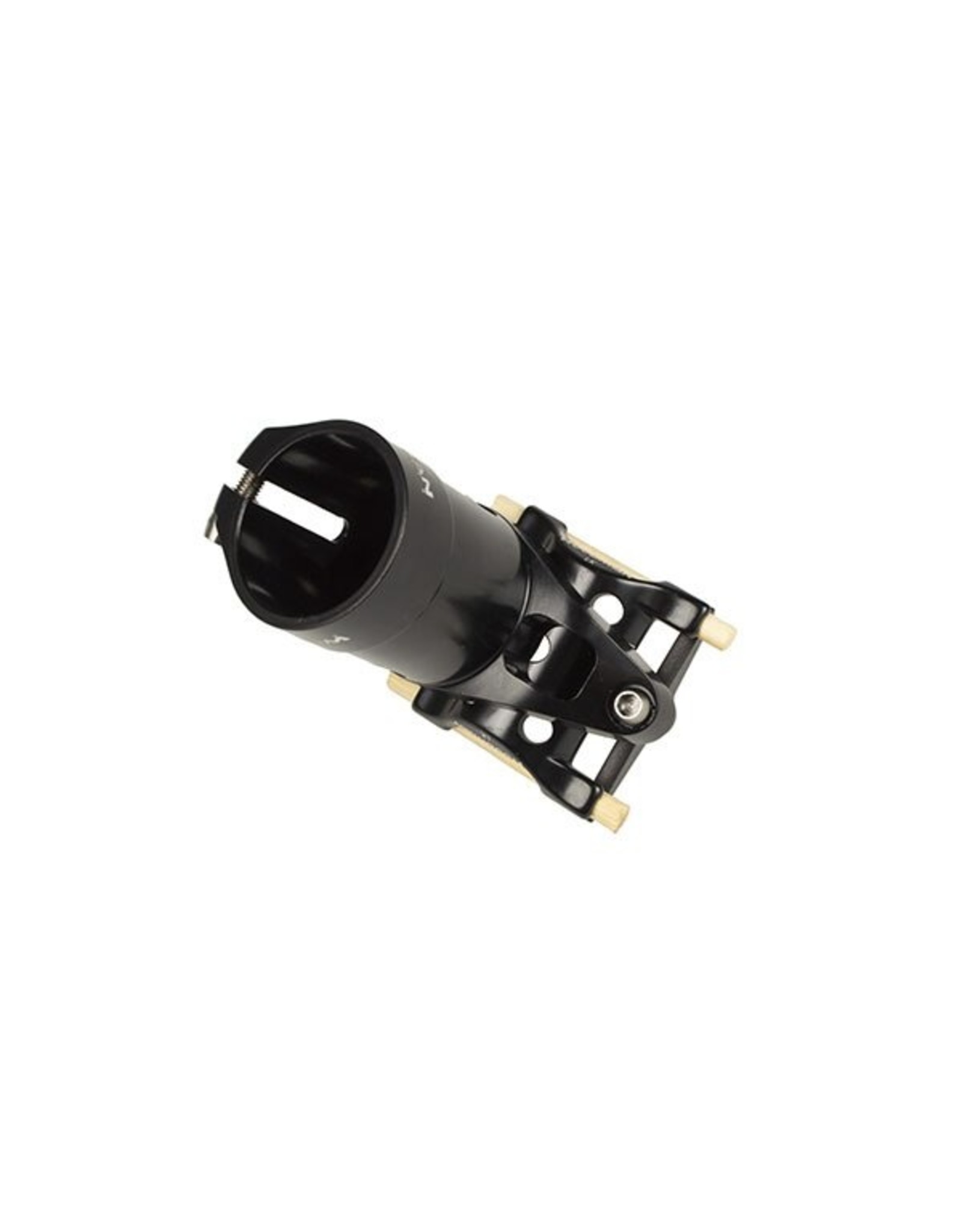

Woodman IT Integrated Setback Seat Mast
| Article number: | 012-03-03 |
| Availability: | In stock |
The Woodman IT Integrated Setback Seat Mast represents the brand’s precision-engineering heritage in its most refined form. Milled from a single billet of 6061-T6 aluminum, it integrates a 25 mm setback to provide ergonomic saddle positioning for riders needing additional reach or comfort tuning.
Using CNC-machined titanium hardware, the IT delivers lightweight strength and excellent corrosion resistance. The cradle-and-yoke clamp ensures even pressure across both carbon and metal rails (round or oval), protecting delicate components while maintaining rock-solid stability.
With a 26 mm stack height and 10 mm adjustment range, this seat mast head is compatible with a wide range of integrated mast diameters (27.2–38.3 mm). Weighing only ~86–101 g, it’s an ideal choice for performance-oriented road and gravel builds.
INSTALLATION
The IT features a cradle-and-yoke design that is compatible with metal or carbon rails in either round or ovalized design. The forward yoke bolt requires a 5.5 mm box end wrench, which is included along with installation instructions.
| Weight | ~86g - ~101g |
| Length | 60 mm |
| Stack Height | 26 mm |
| Setback | 25 mm |
| _____________________: | ____________________ |
| Material: | • 6061 T6 Aluminum | Ti Hardware |
| Rail Compatibility: | • 7 x 7 mm / 7 x 9 mm / 7 x 10 mm |
| Min. Insertion: | • |
| Clamping Area: | • |
| Max Torque: | • 5Nm |
| Saddle Offset: | • 25 mm |
| Rider Weight Limit: | • |
