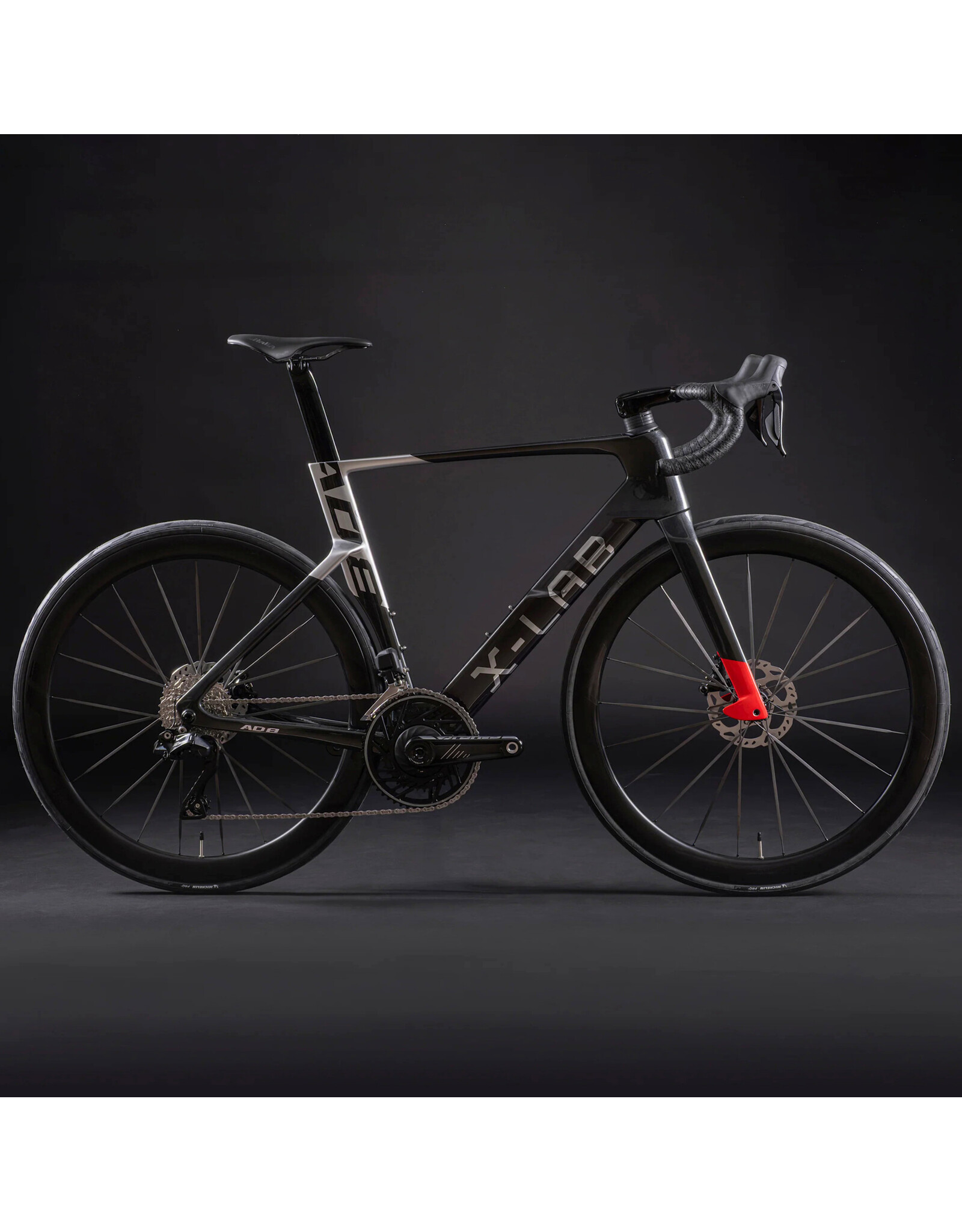

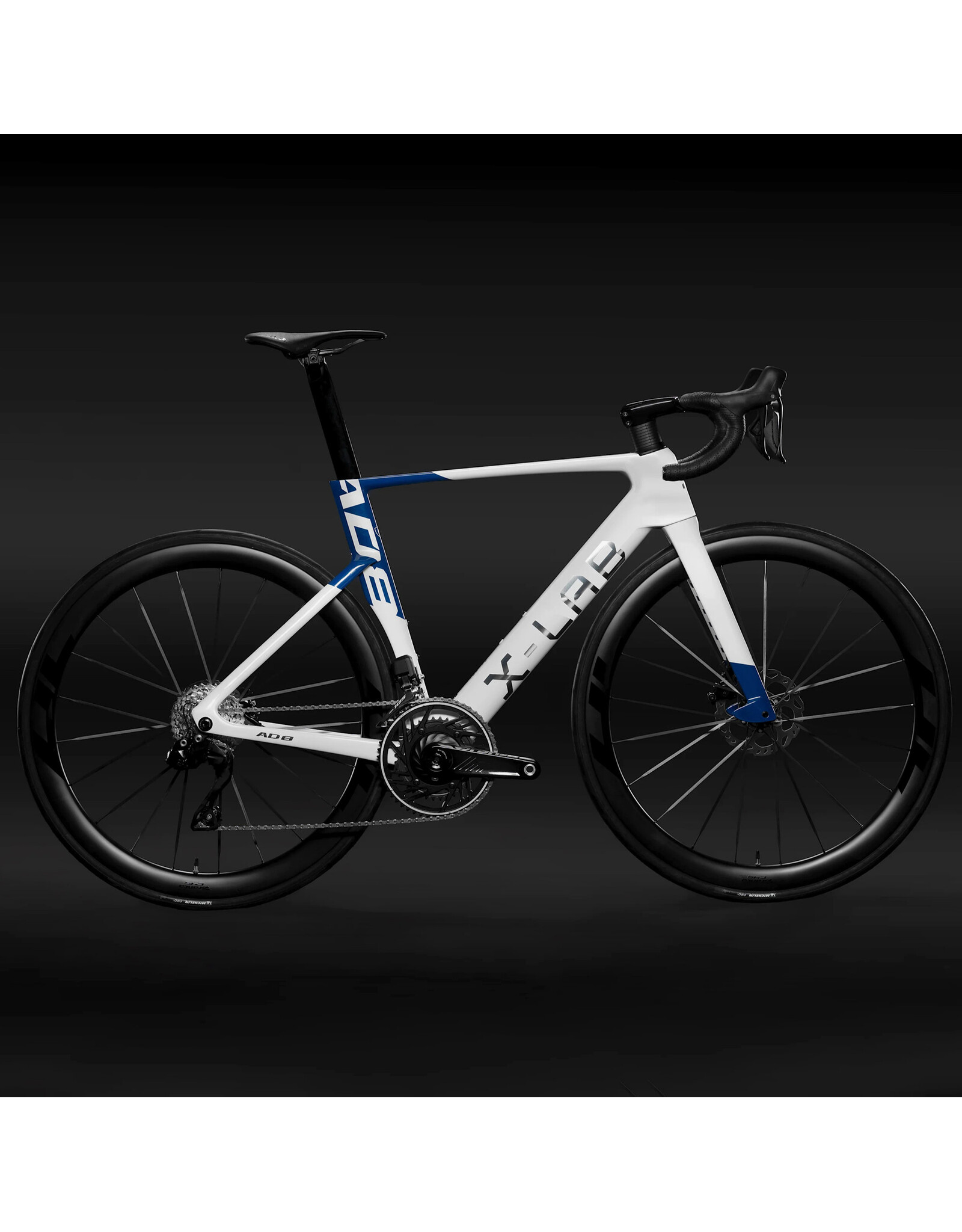

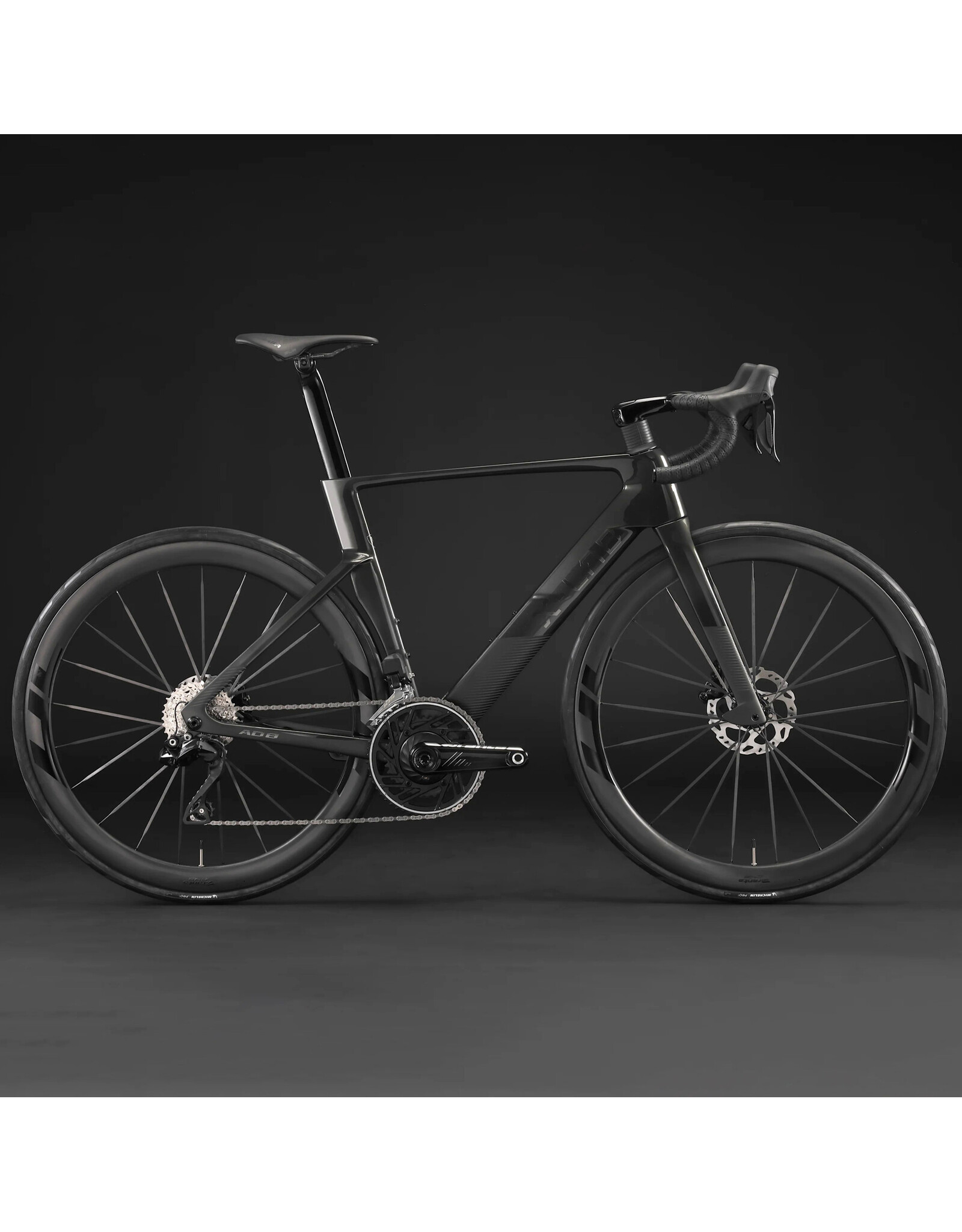

X-LAB AD8 Aero Road Bike / Frame
| Availability: | Out of stock |
X-LAB AD8 Consultations
Our Park Avenue Studio helps riders confirm X-LAB AD8 sizing, check availability, and select the appropriate complete-bike configuration.
Call our Park Ave. Studio to discuss fit, geometry, cockpit sizing, component options, and availability.
• Contact & hours for our Park Avenue Studio and 6th Street Location
The X-LAB AD8 brings the aerodynamic frame design and race geometry of the WorldTour-developed AD9 into a more accessible complete-bike package. Built with Toray T800 carbon and equipped with electronic shifting, carbon wheels, and an integrated power meter, the AD8 is designed for riders who want a fast, responsive race platform for everyday roads, competitive events, and high-speed group rides.
Ride Character
- Fast and responsive aero road feel
- Efficient during sustained high-speed efforts
- Built for racing, fast group rides, and performance road use
Fit & Geometry
- Same frame design and geometry as the AD9
- Five frame sizes from XS through XL
- Multiple integrated cockpit configurations
Complete-Bike Package
- Shimano 105 Di2 electronic groupset
- Branta carbon power-meter crankset
- Branta C45 UL carbon wheelset
AD8 Fit & Cockpit Options
The AD8 uses an integrated carbon cockpit available in multiple handlebar-width and stem-length combinations. This allows the front end to be selected around the rider’s proportions and position rather than relying on one cockpit dimension for every frame size. Professional fit guidance is especially valuable when choosing between sizes or refining an aggressive road position.
Integrated Cockpit
- Carbon one-piece handlebar and stem
- Multiple width and stem-length combinations
- Standard two-bolt underside computer-mount compatibility
Drivetrain & Power
- Shimano 105 Di2 electronic shifting
- Dual-sided Branta power-meter crankset
- Apple Find My anti-theft technology
X-LAB AD8 Platform Notes
| Category | Aero Road Race |
| Frame Design | AD9 Aero Frame Design and Geometry |
| Frame & Fork | Toray T800 Carbon |
| Groupset | Shimano 105 Di2 |
| Power Meter | Branta Dual-Sided Carbon Power-Meter Crankset |
| Wheelset | Branta C45 UL Carbon Rims and Spokes |
| Tire Clearance | Up to 32 mm |
| Bottom Bracket | T47 / 29 mm Spindle |
| Derailleur Hanger | UDH Compatible |
| Claimed Weight | 7.41 kg / 16.3 lb, Size Large |
| Frame Sizes | XS / S / M / L / XL |
| Availability | Complete Bike Only |
X-LAB Custom Builds & Bike Features
Explore Fair Wheel Bikes custom builds, bike features, product reviews, and performance component coverage on our YouTube channel.
Contact Fair Wheel Bikes to discuss X-LAB AD8 availability, sizing, cockpit selection, and complete-bike options.
