ENVE Mountain Fork
| Article number: | ENVE-6 |
| Availability: | Out of stock |

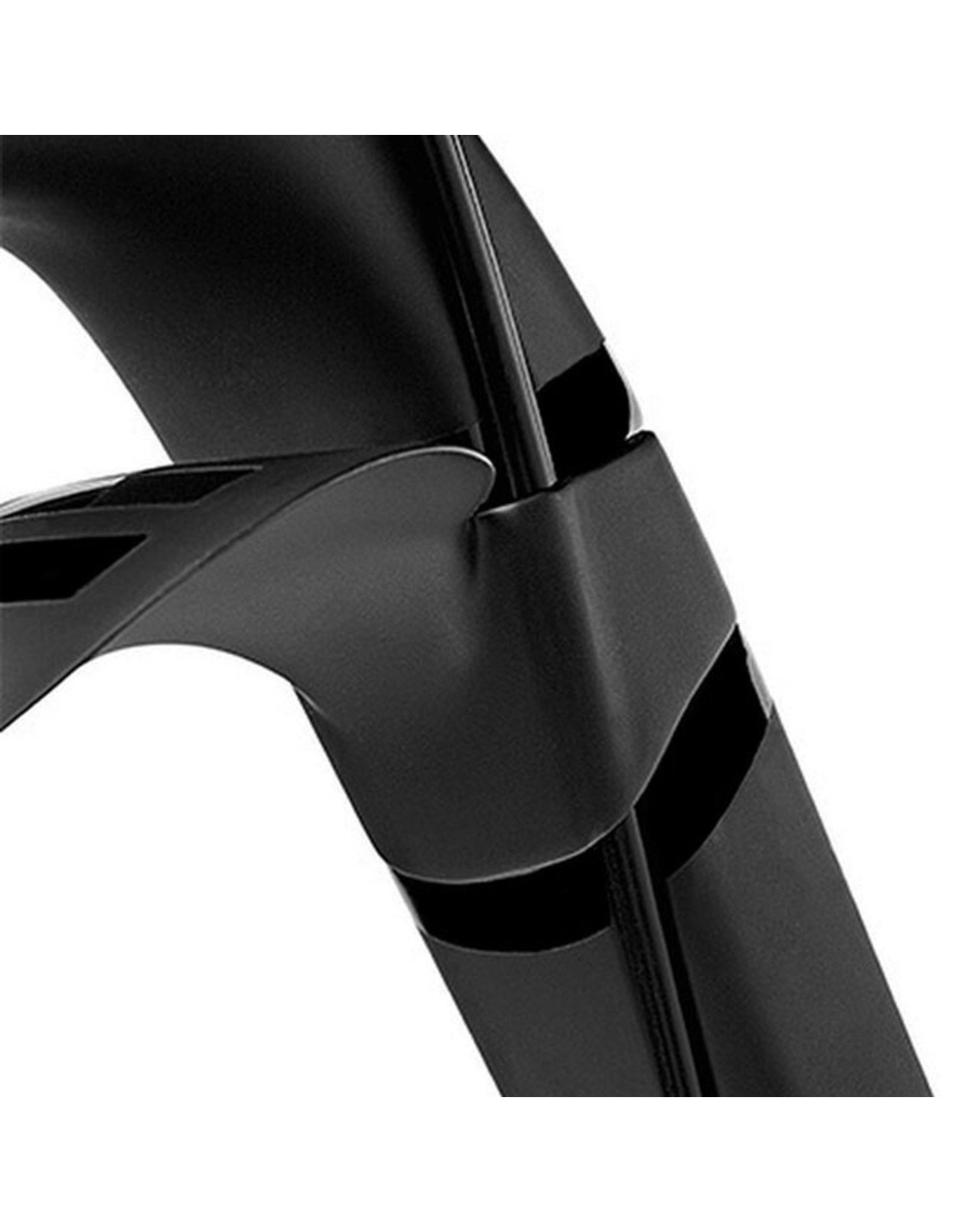

For riders who value functional simplicity, the ENVE Carbon Mountain Fork is a rigid 29" carbon fork built around modern mountain standards and real-world usability. Reversible dropout inserts let you tune handling by switching rake between 44mm and 52mm, while ENVE’s integrated carbon hose clip keeps the brake line tidy without zip ties. A removable mini fender is included for splash and debris control.
Handling tune via flip chips
- Adjustable rake: 44mm or 52mm (reversible dropout inserts)
- Designed around modern MTB geometry with rigid simplicity
Brake + tire compatibility
- Post mount disc brake
- Rotor sizes: 160mm / 180mm (max 180mm)
- Max tire clearance: 29" x 3.0" (with mini fender)
Boost vs Non-Boost (important)
- Boost: 15 x 110mm axle, accessory mounts included
- Non-Boost: 15 x 100mm axle, no accessory mounts
Installation note (carbon fork)
Correct steerer cutting, crown race installation, and brake setup require proper tools and technique. We strongly recommend installation by an experienced mechanic.
For riders who value functional simplicity, the ENVE Carbon Mountain Fork is a rigid 29" carbon fork built around modern mountain standards and real-world usability. Reversible dropout inserts let you tune handling by switching rake between 44mm and 52mm, while ENVE’s integrated carbon hose clip keeps the brake line tidy without zip ties. A removable mini fender is included for splash and debris control.
Handling tune via flip chips
- Adjustable rake: 44mm or 52mm (reversible dropout inserts)
- Designed around modern MTB geometry with rigid simplicity
Brake + tire compatibility
- Post mount disc brake
- Rotor sizes: 160mm / 180mm (max 180mm)
- Max tire clearance: 29" x 3.0" (with mini fender)
Boost vs Non-Boost (important)
- Boost: 15 x 110mm axle, accessory mounts included
- Non-Boost: 15 x 100mm axle, no accessory mounts
Installation note (carbon fork)
Correct steerer cutting, crown race installation, and brake setup require proper tools and technique. We strongly recommend installation by an experienced mechanic.
Boost (15 x 110mm) Specifications
| Spec | Boost |
| Axle compatibility | 15 x 110 mm |
| Rake (adjustable) | 44 mm / 52 mm |
| Axle to crown | 490 mm (44 mm) / 492 mm (52 mm) |
| Travel correction | 120 mm (frames designed for 100–140 mm forks) |
| Accessory mounts | Yes (M5 bolts) |
| Weight | ~719 g (with fender) / ~676 g (with clasps) |
| Steerer | 1-1/8" to 1-1/2" tapered • 350 mm length |
| Brake mount | Post mount (disc) |
| Rotor size | 160 mm / 180 mm (max 180 mm) |
| Max tire clearance | 29" x 3.0" (with fender) |
| Torque specs | Steerer: 5.5 Nm • Axle: 8 Nm |
| Material | Carbon |
Non-Boost (15 x 100mm) Specifications
| Spec | Non-Boost |
| Axle compatibility | 15 x 100 mm |
| Rake (adjustable) | 44 mm / 52 mm |
| Axle to crown | 470 mm (44 mm) / 472 mm (52 mm) |
| Travel correction | 100 mm (frames designed for 80–120 mm forks) |
| Accessory mounts | No |
| Weight | ~711 g (with fender) / ~686 g (with clasps) |
| Steerer | 1-1/8" to 1-1/2" tapered • 350 mm length |
| Brake mount | Post mount (disc) |
| Rotor size | 160 mm / 180 mm (max 180 mm) |
| Max tire clearance | 29" x 3.0" (with fender) |
| Torque specs | Steerer: 5.5 Nm • Axle: 8 Nm |
| Material | Carbon |
Build Notes
- Choose Boost vs Non-Boost to match your front hub spacing (15x110 vs 15x100).
- Flip chips let you change rake (44/52mm) to adjust steering feel without changing frames.
- Boost version includes accessory mounts for cages and fork-mounted gear; Non-Boost does not.
Reference: ENVE Mountain Fork specs
