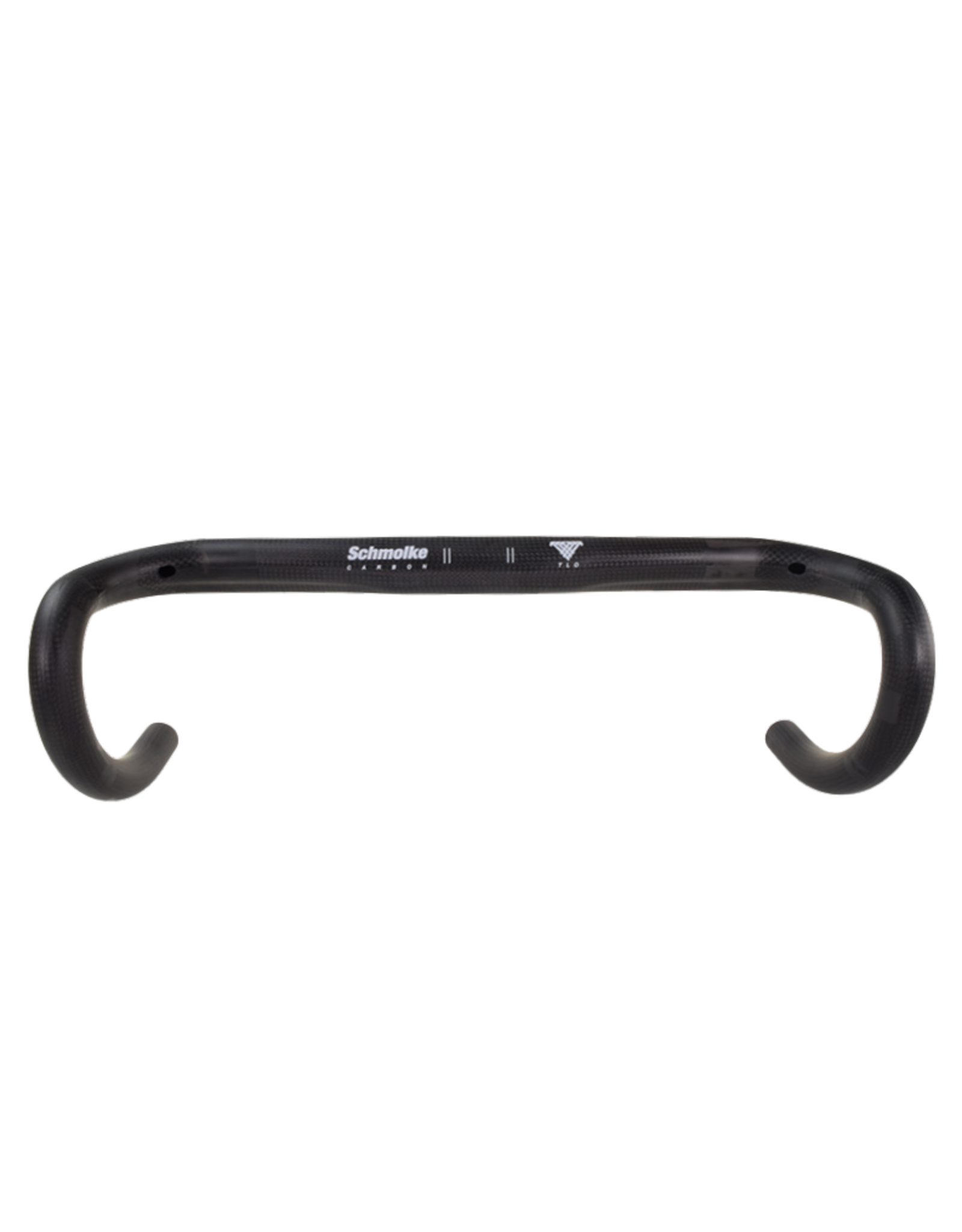

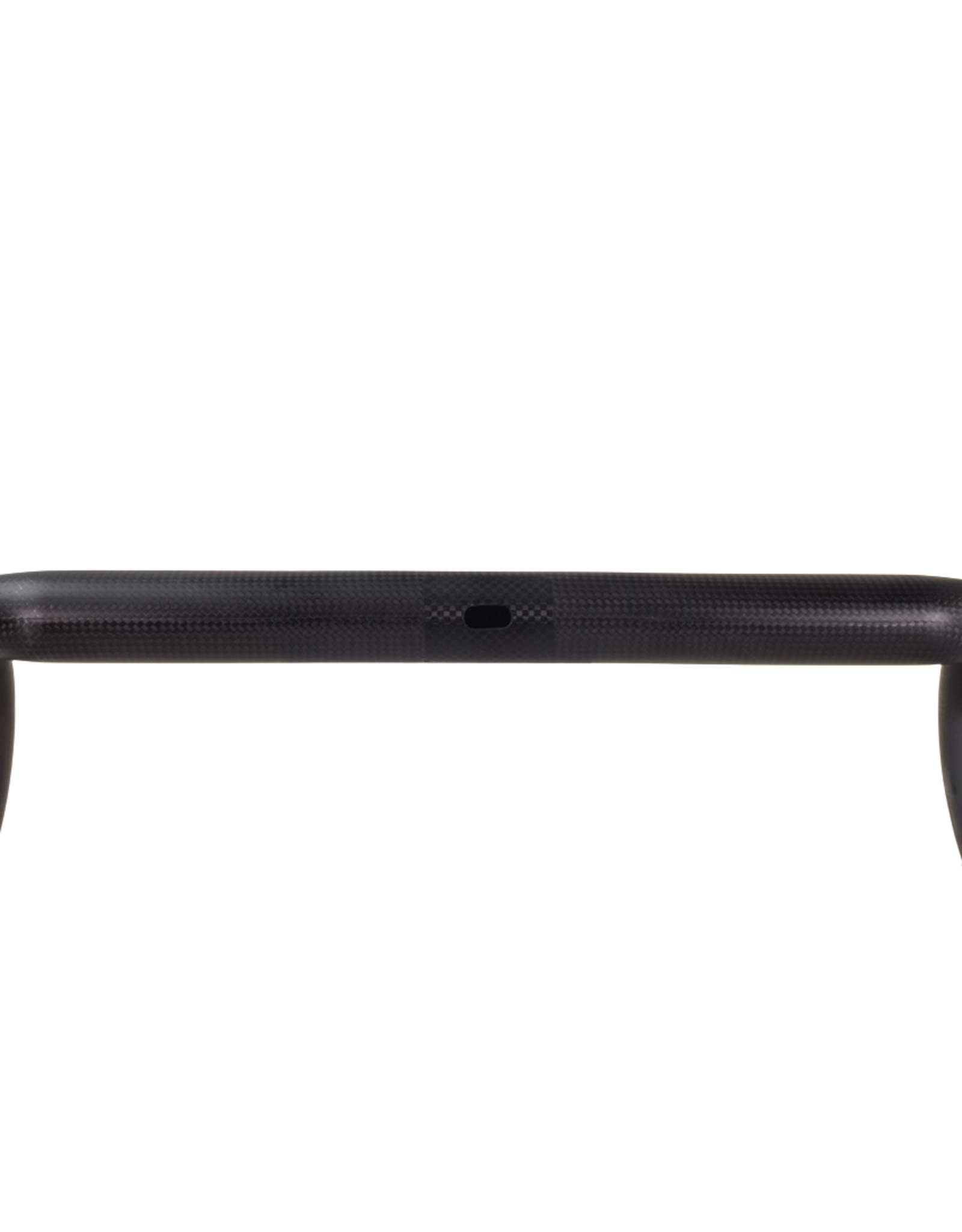

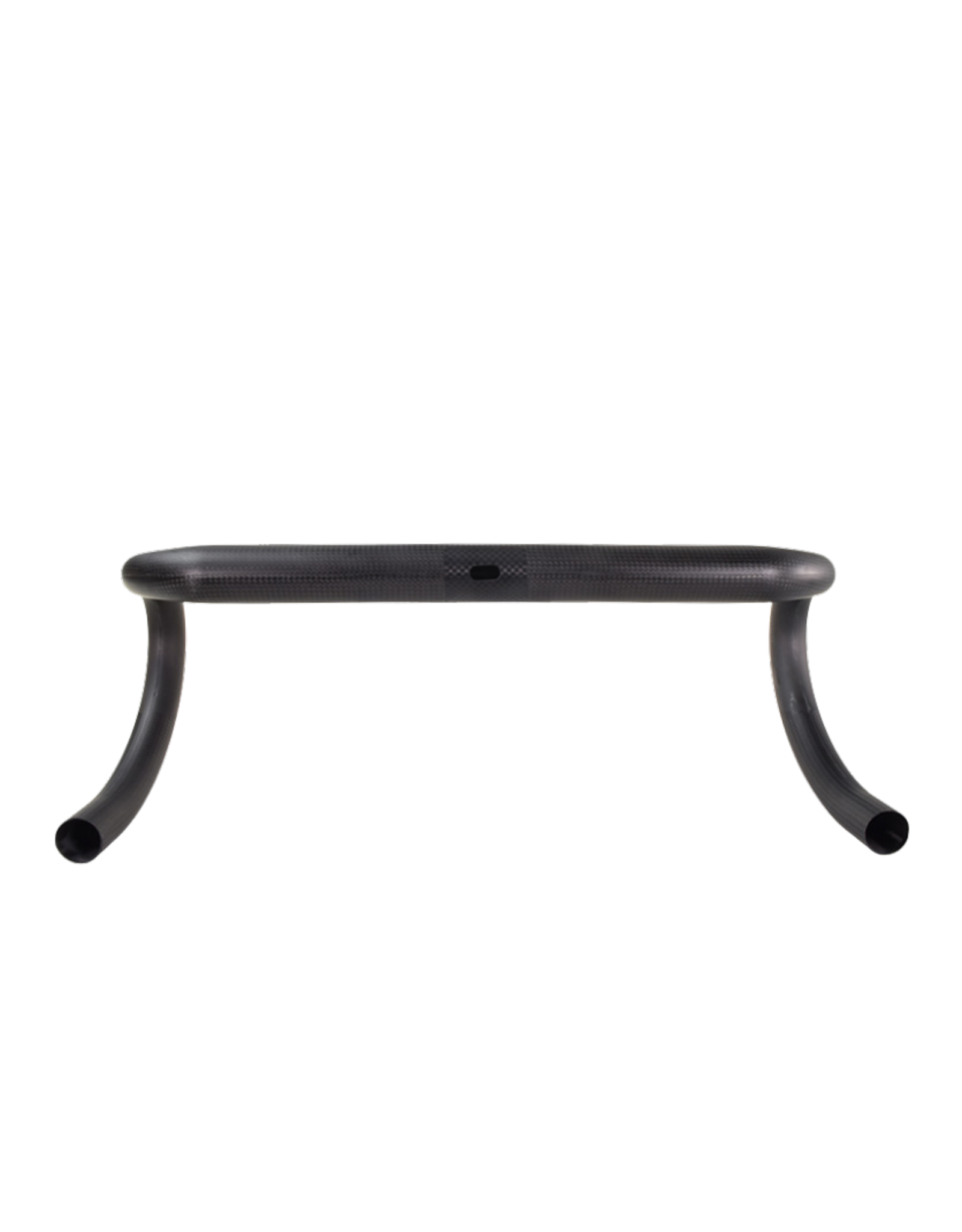

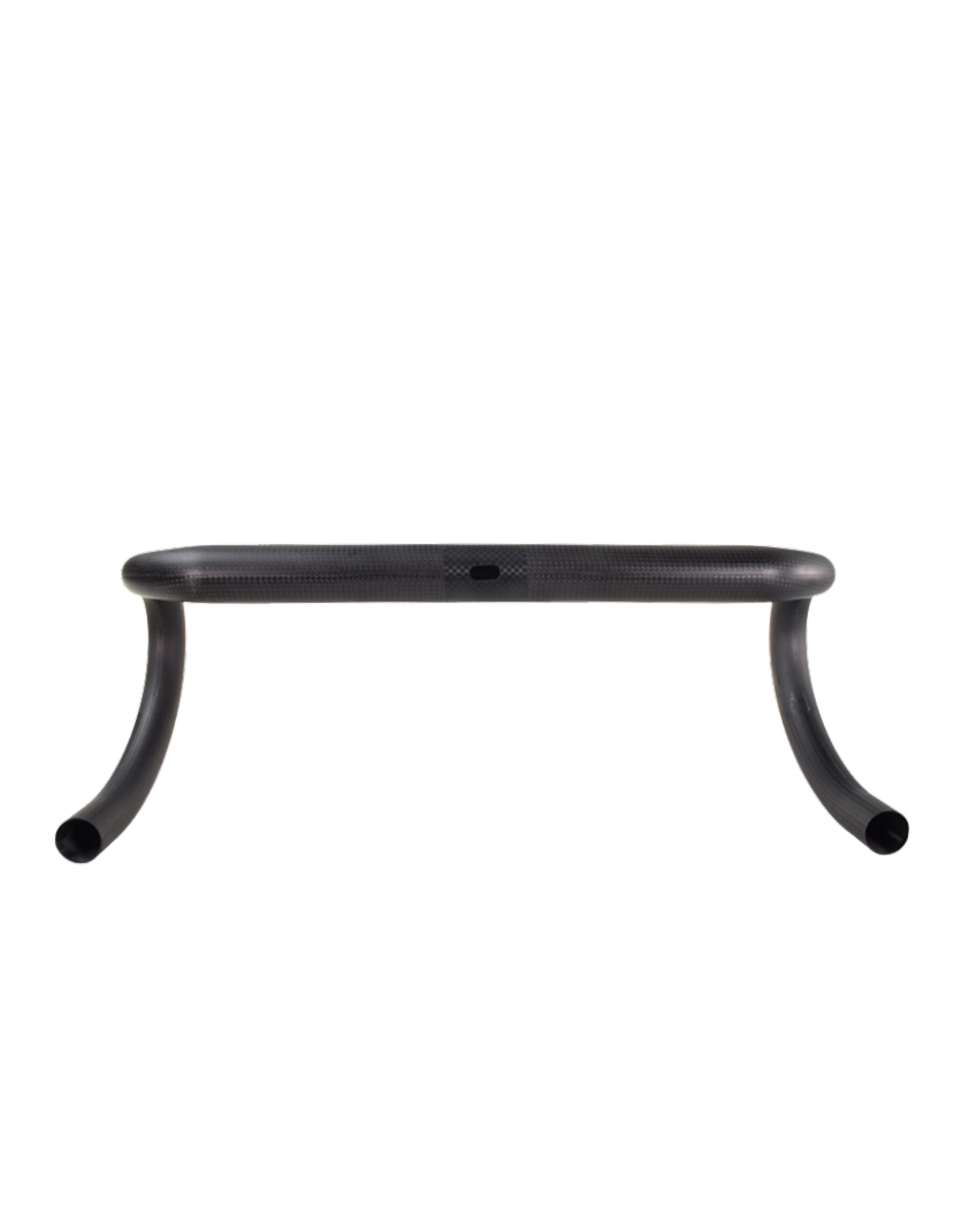

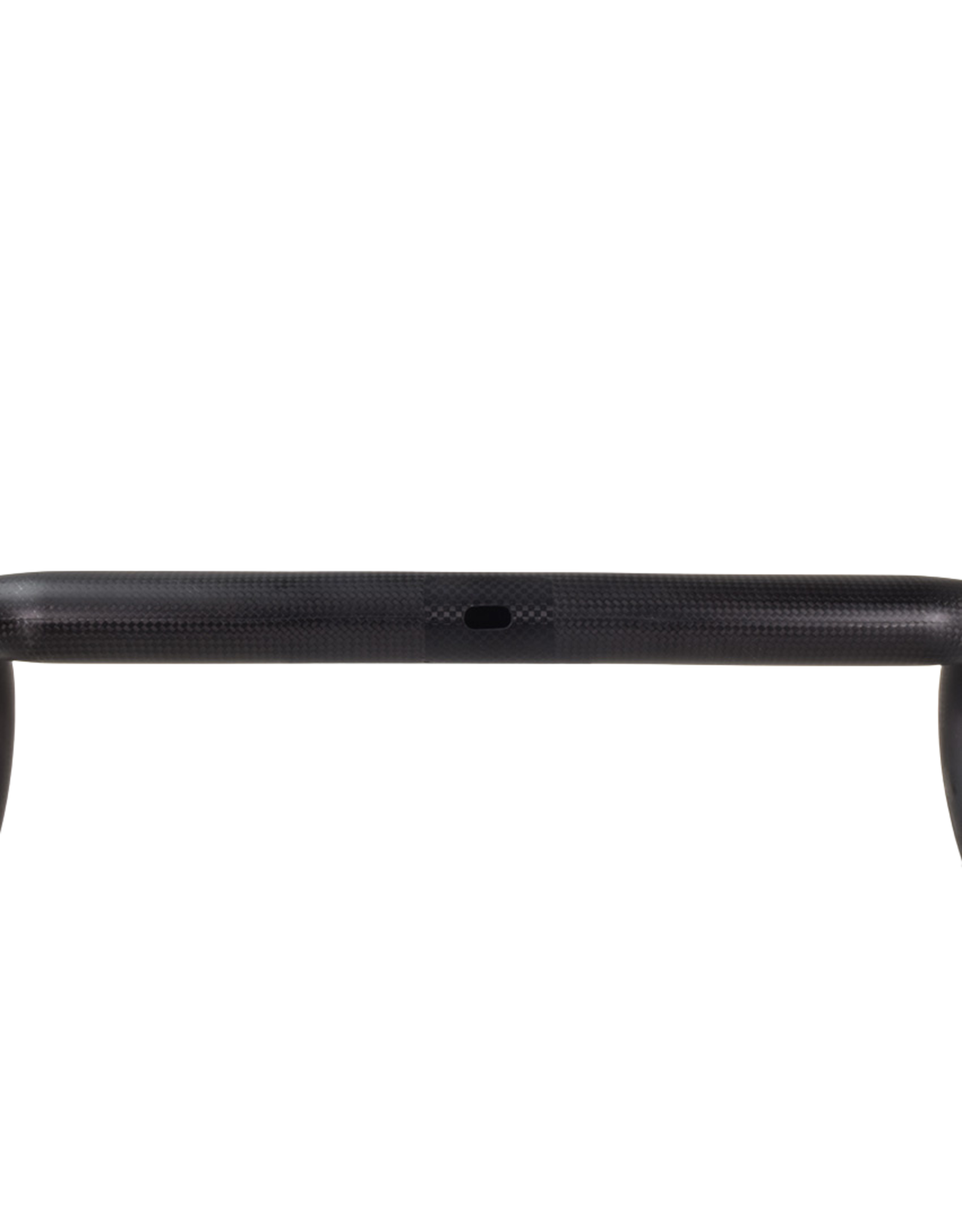

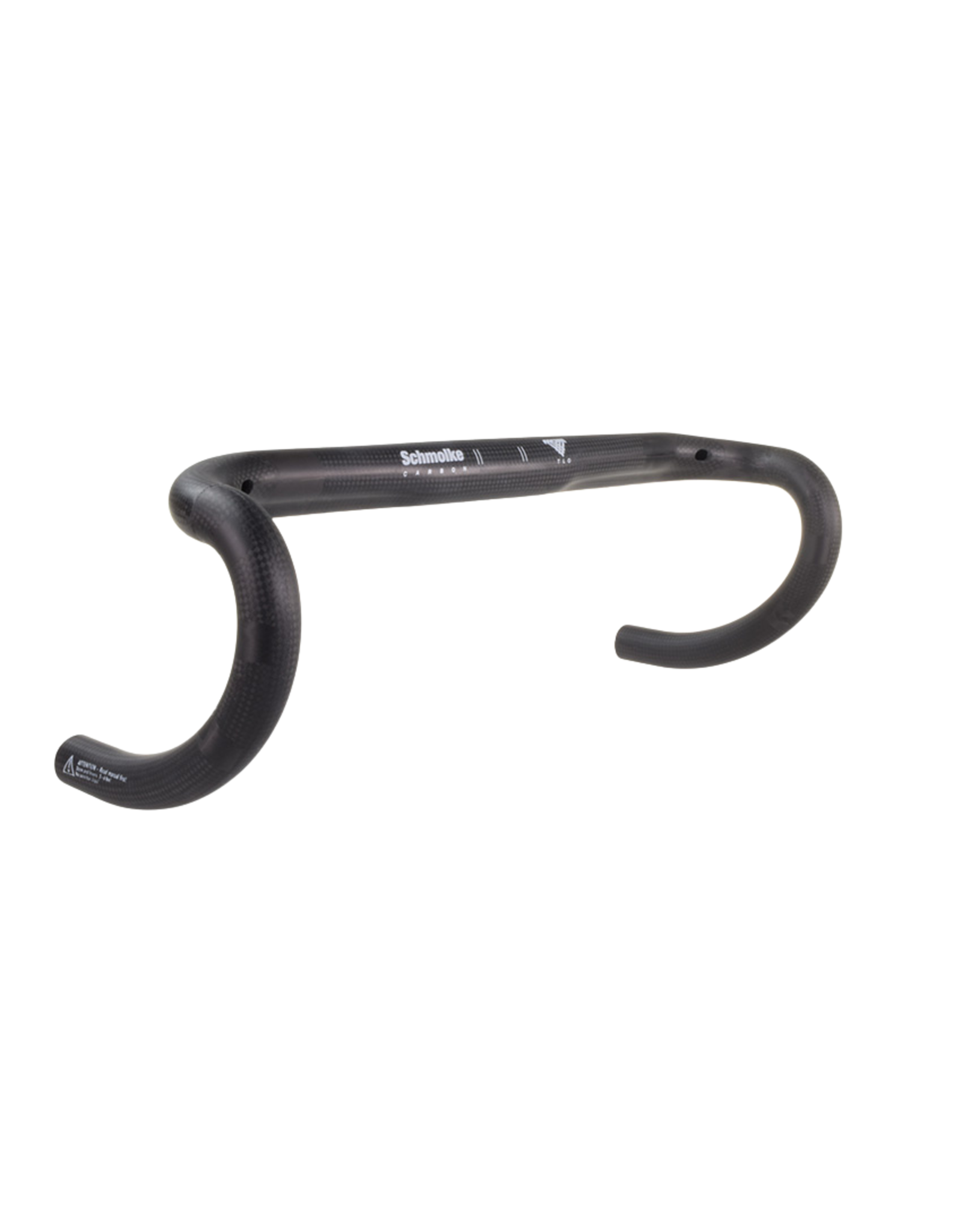

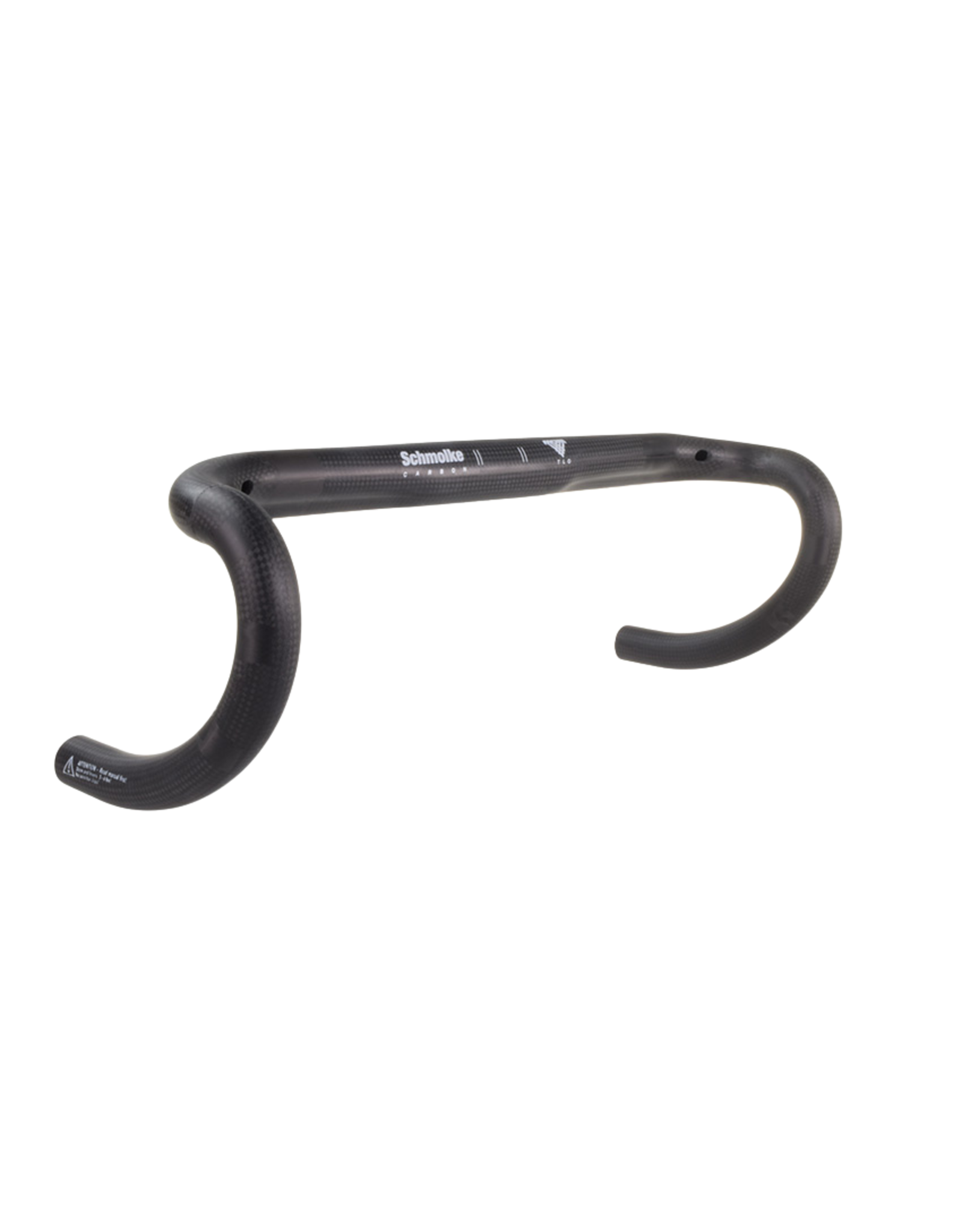

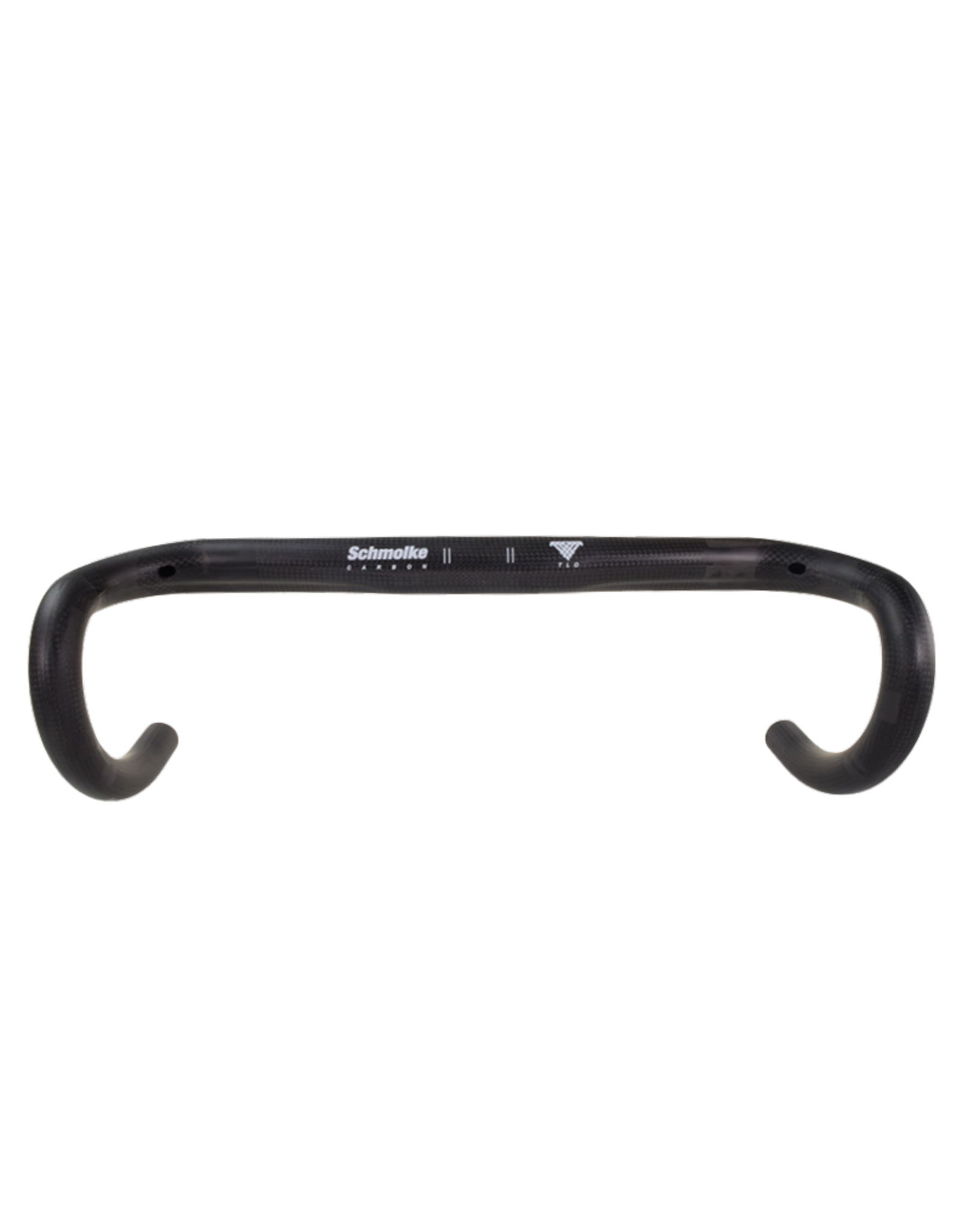

Schmolke Roadbar EVO TLO Handlebar
| Article number: | 011-05-04 |
| Availability: | Out of stock |
The Schmolke Roadbar EVO TLO is the pinnacle of ergonomic, ultralight cockpit design. Its involute drop curve provides an aerodynamic yet natural hand position, balancing performance with long-ride comfort. The nearly horizontal transition between the drops and brake hoods minimizes wrist strain, while the flattened tops offer an anatomically secure grip for extended climbing or cruising.
To maintain rigidity without excess bulk, the bar’s tops retain a subtle curvature that preserves structural integrity. Recessed cable grooves ensure straightforward external routing, while integrated porting expands options for internal cable routing (ICR). Three dedicated openings—one on each side at hood height and one centered at the back—allow seamless compatibility with modern fully integrated setups.
Handmade in Germany from high-modulus carbon, the TLO bar combines minimal weight with uncompromising strength, making it one of the lightest and most technically advanced drop bars available.
| Measured *(O - O) | 40cm | 42cm | 44cm |
| Weight | ~145g | ~147g | ~151g |
| Reach | 73 mm | 78 mm | |
| Drop | 125 mm | 126 mm | |
| Stem Clamp Diameter | 31.8 mm | ||
| Material | Carbon Fiber | ||
| Finish | 1k Weave | ||
| ICR Compatible | Yes (internal ports) | ||
| Rider Weight Limit | 243 lbs (110 kg) | ||
| *Outside to Outside | |||
- Pair the Schmolke Roadbar with the TLO Road Stem for a complete ultralight cockpit.
- For a matching seatpost, see the TLO Carbon Seatpost
- Riders looking for an ultralight saddle solution can choose the SL 79 Carbon Saddle
| __________________________: | ______________________________ |
| Measured: | • Outside to Outside |
| Reach: | • 73 mm (40) | 78 mm (42 / 44) |
| Drop: | • ~125 mm |
| Clamp Diameter: | • ⌀31.8 |
| Internal Routing: | • Yes |
| Material: | • Carbon Fiber |
| Torque: | • Faceplate - 3-3.5Nm | Shift / Brake Clamp - 3-3.5Nm |
