Extralite Cyber SPD-3+ Road 6-Bolt Disc Hubset

$815.00
Availability: Out of stock

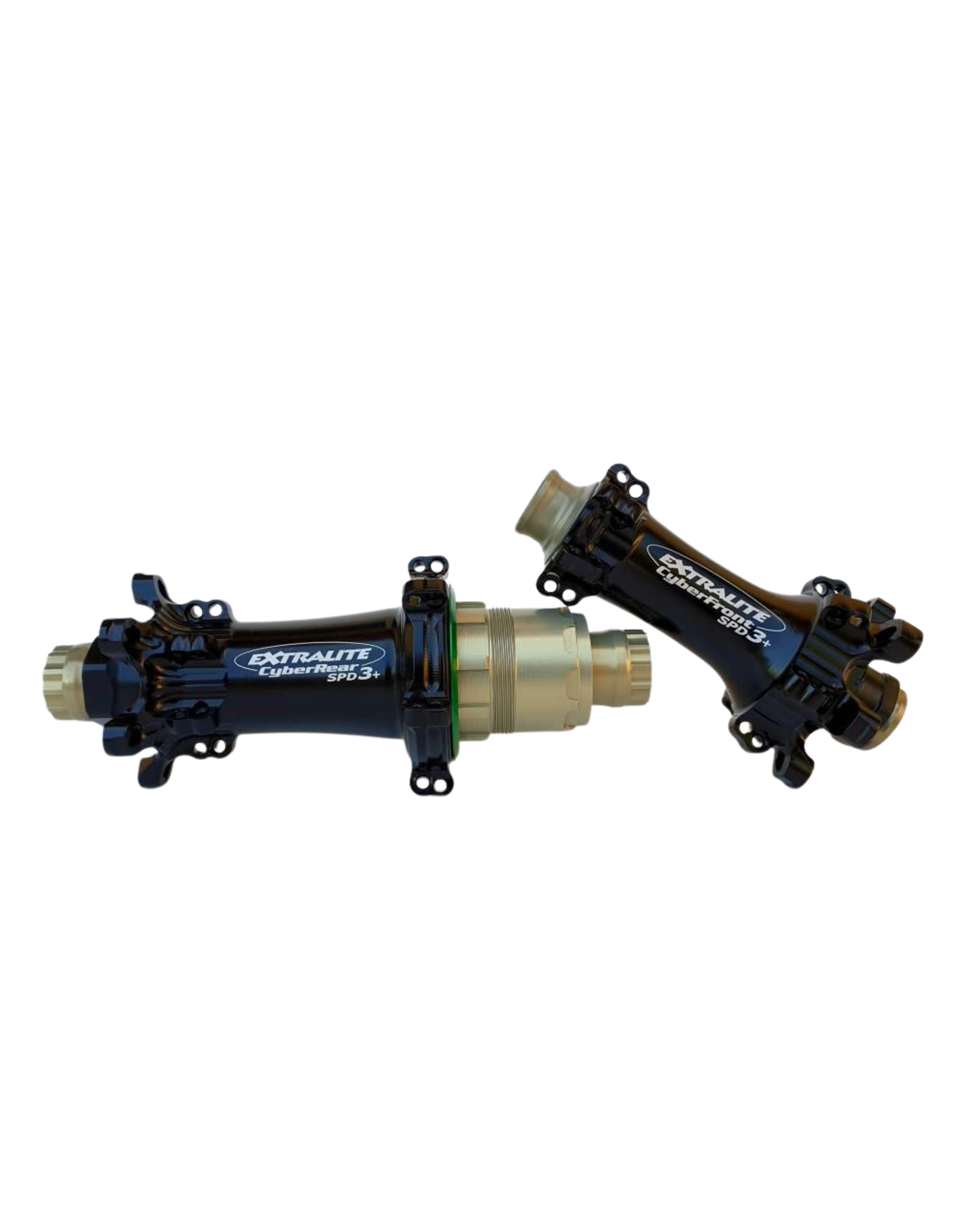

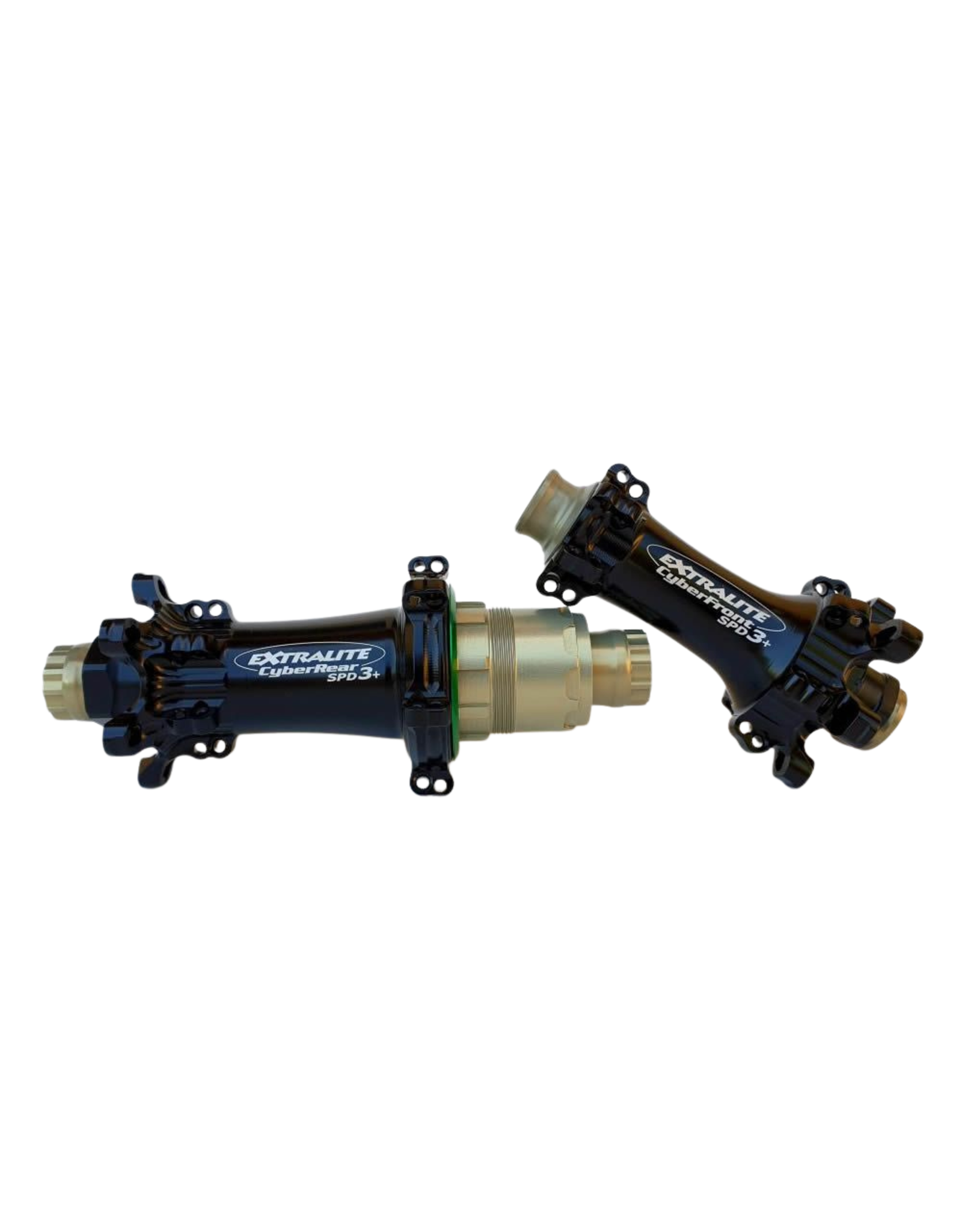

The Extralite Cyber SPD-3+ hubset pairs one of the world’s lightest road disc front and rear hubs into a complete system optimized for stiffness, weight savings, and precision. Machined in Italy from aerospace-grade 7075TX aluminum and Grade 5 titanium, the Cyber SPD-3+ hubs are engineered for competitive riders who demand every performance advantage.

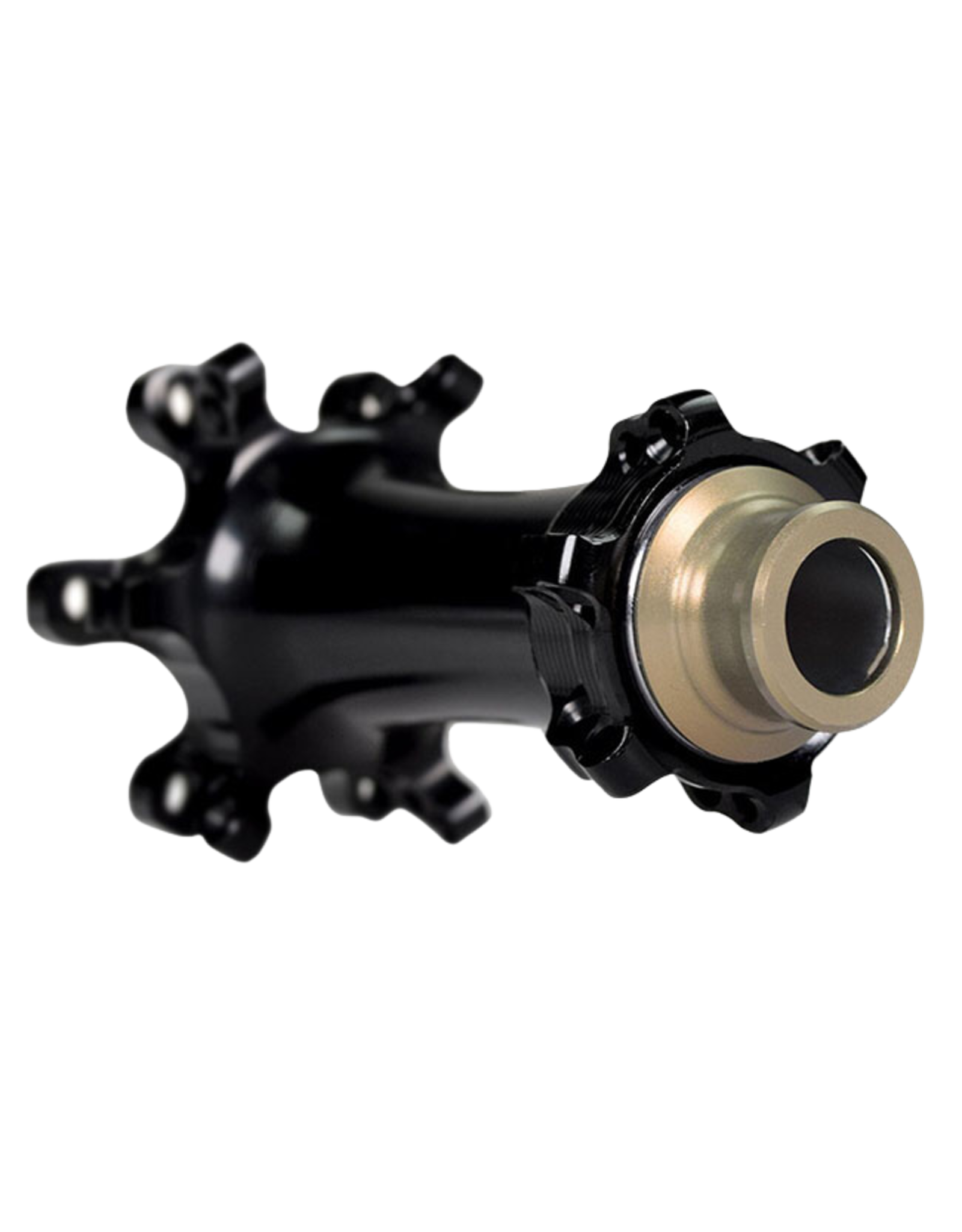

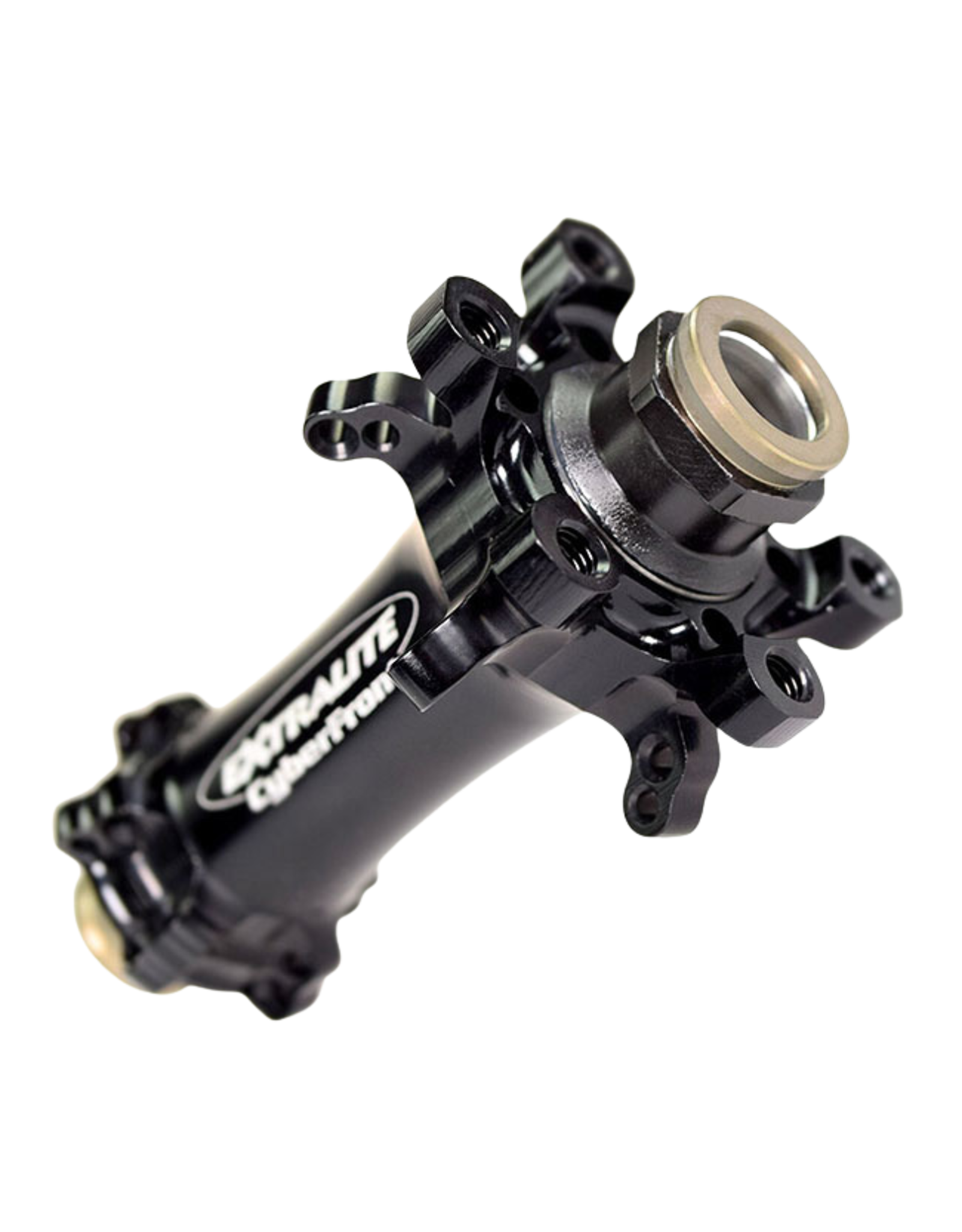

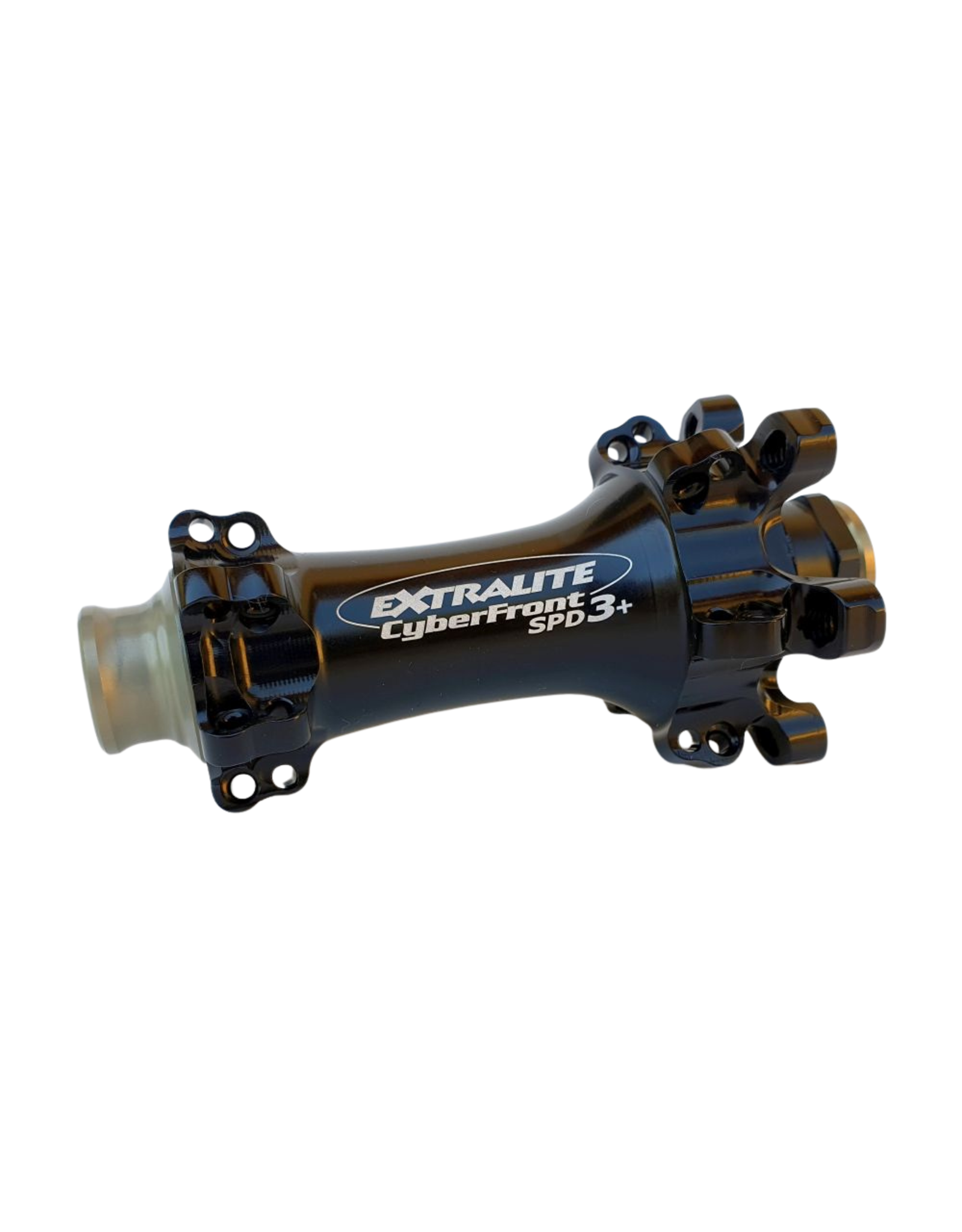

The CyberFront SPD-3+ weighs just ~66 g, using a one-piece shell and cross-laced straight-pull design for balanced tension and increased braking response.

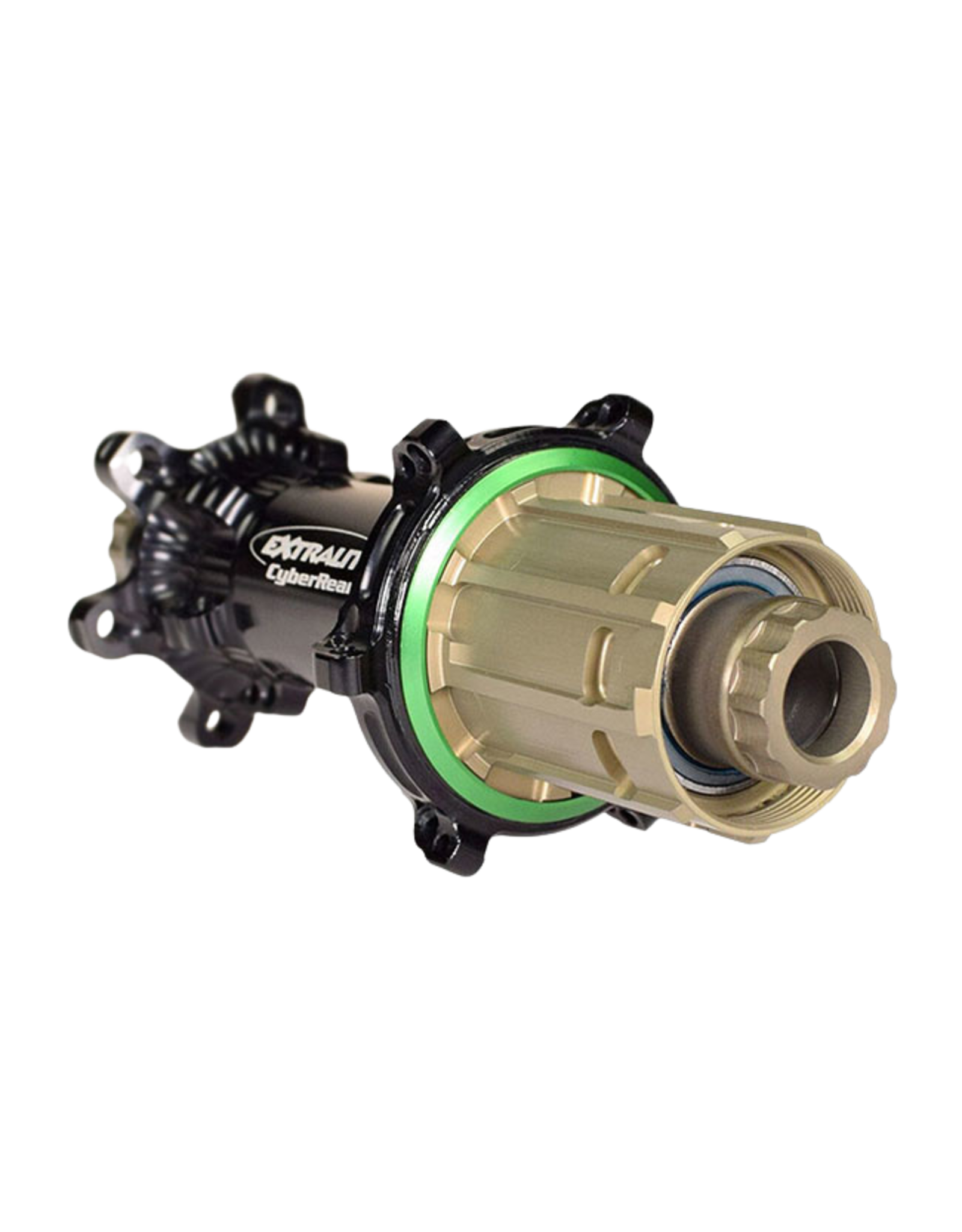

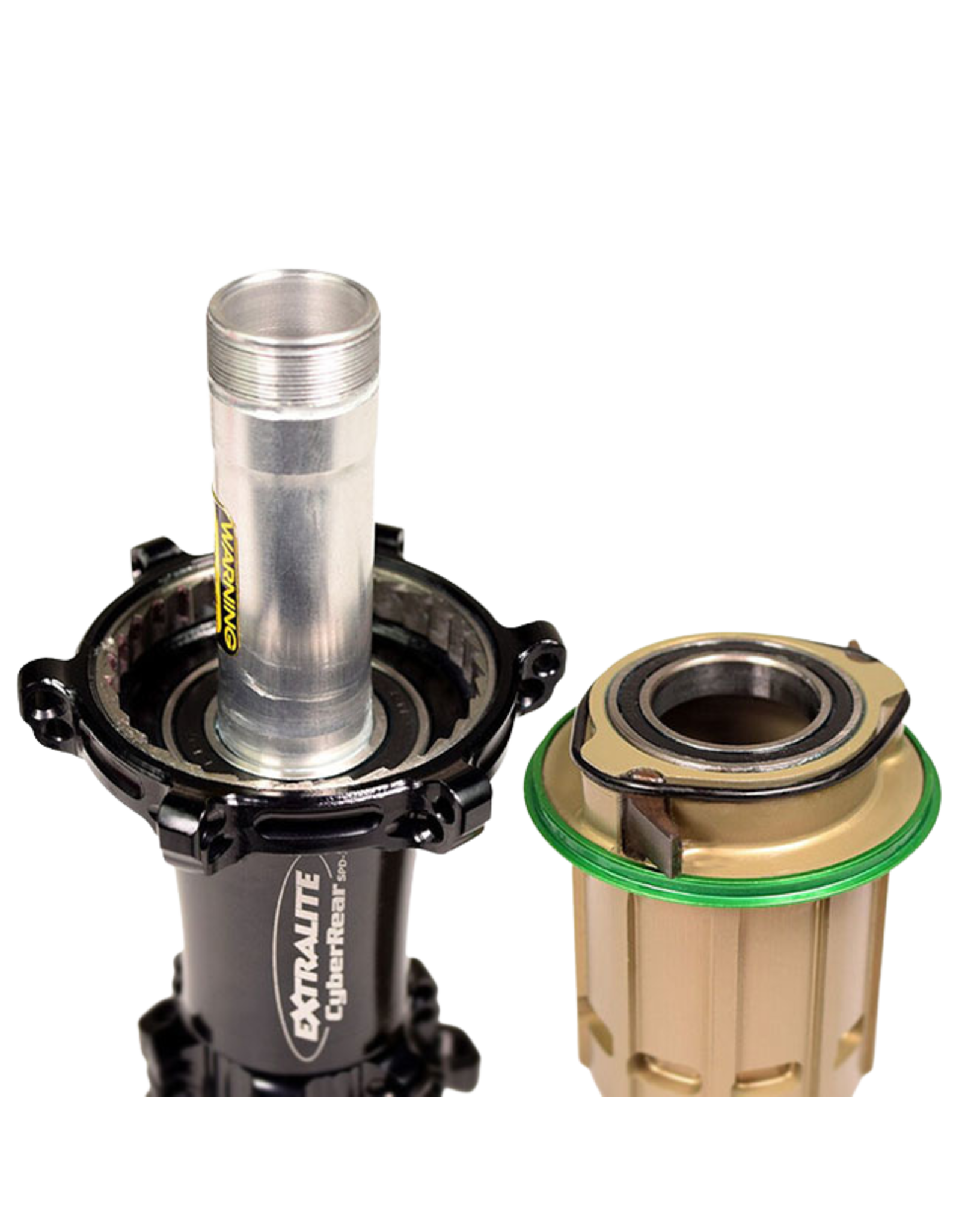

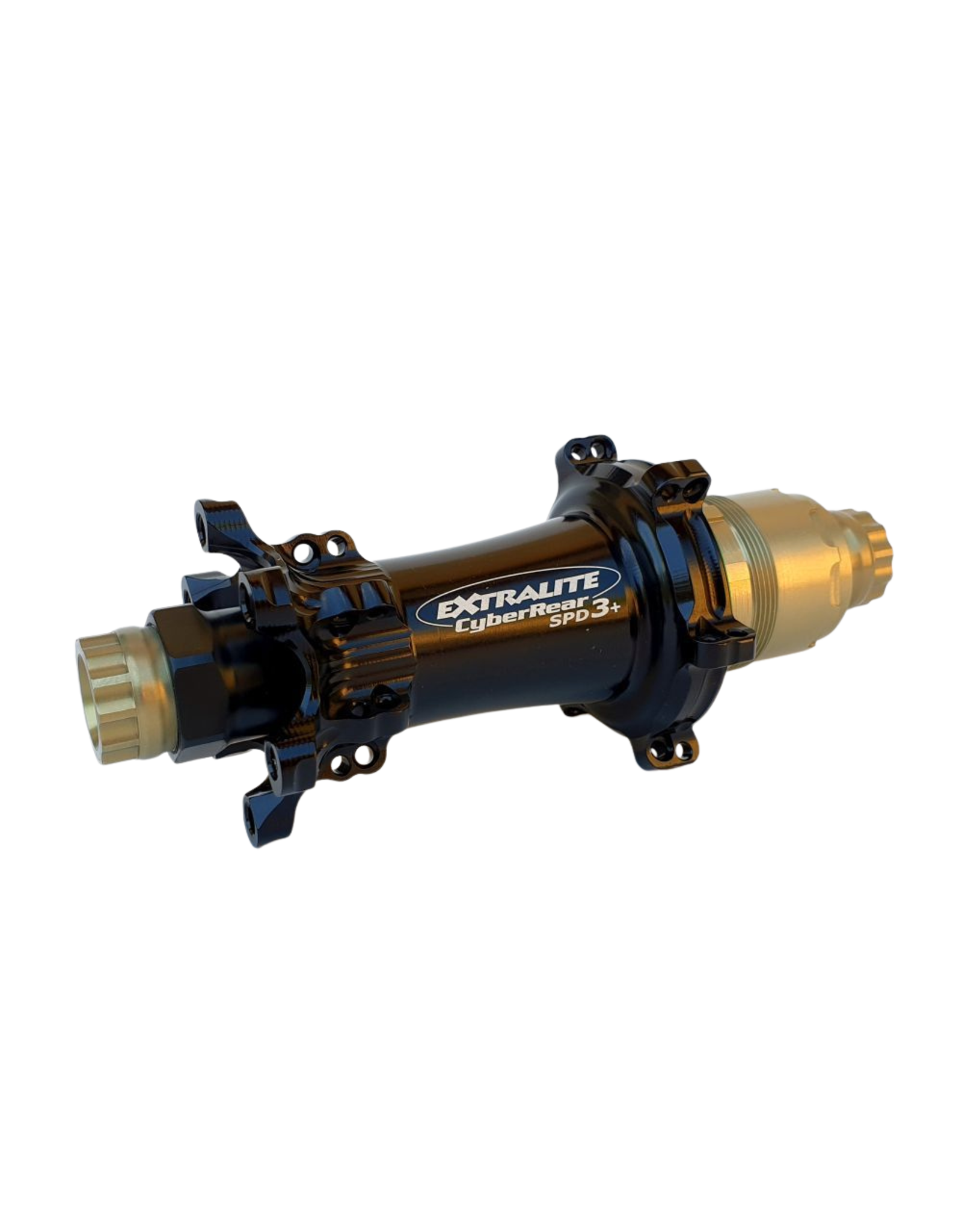

The CyberRear SPD-3+ ranges from ~140–146 g depending on freehub body, featuring a dual-pawl freehub with 32-tooth engagement for efficient power transfer.

Both hubs include Extralite’s signature micro-tuner preload system, stainless or ceramic bearing options, and EN-certified strength for riders up to 200 lbs (90 kg). Together, they deliver a complete lightweight hubset for modern road disc wheel builds.

SERVICE

Due to the lightweight construction of Extralite hubs, it is recommended that service be performed at frequent intervals to ensure proper function and the longest possible wear life of the internal components. Detailed service instructions can be found here. We recommend Extralite's Alugrease or Buzzy's Slick Honey for proper and effective lubrication of the seals and freehub mechanism.

WHEEL BUILDING

Trust a skilled wheelbuilder for Extralite hubbed wheels. We offer expert service and rim/spoke advice. Contact us for custom wheels.



  Front Rear
 Weight ~66g ~140 - 146g
 Spoke Holes 24h
 Axle Standard 12 x 100 mm 12 x 142 mm
 Bearing Size* 6903 / 6803 6903 / 6803 (3)
 Brake Interface 6-Bolt
 Freehub Engagement N / A 32t
*Can be ordered with either XD15 Ceramic, HDC Ceramic, or 440c Stainless Bearings
CyberRear Freehub Options
 Shimano Road 11Spd
 SRAM XDR
 Campagnolo N3W
  Road 11 / 12 Speed

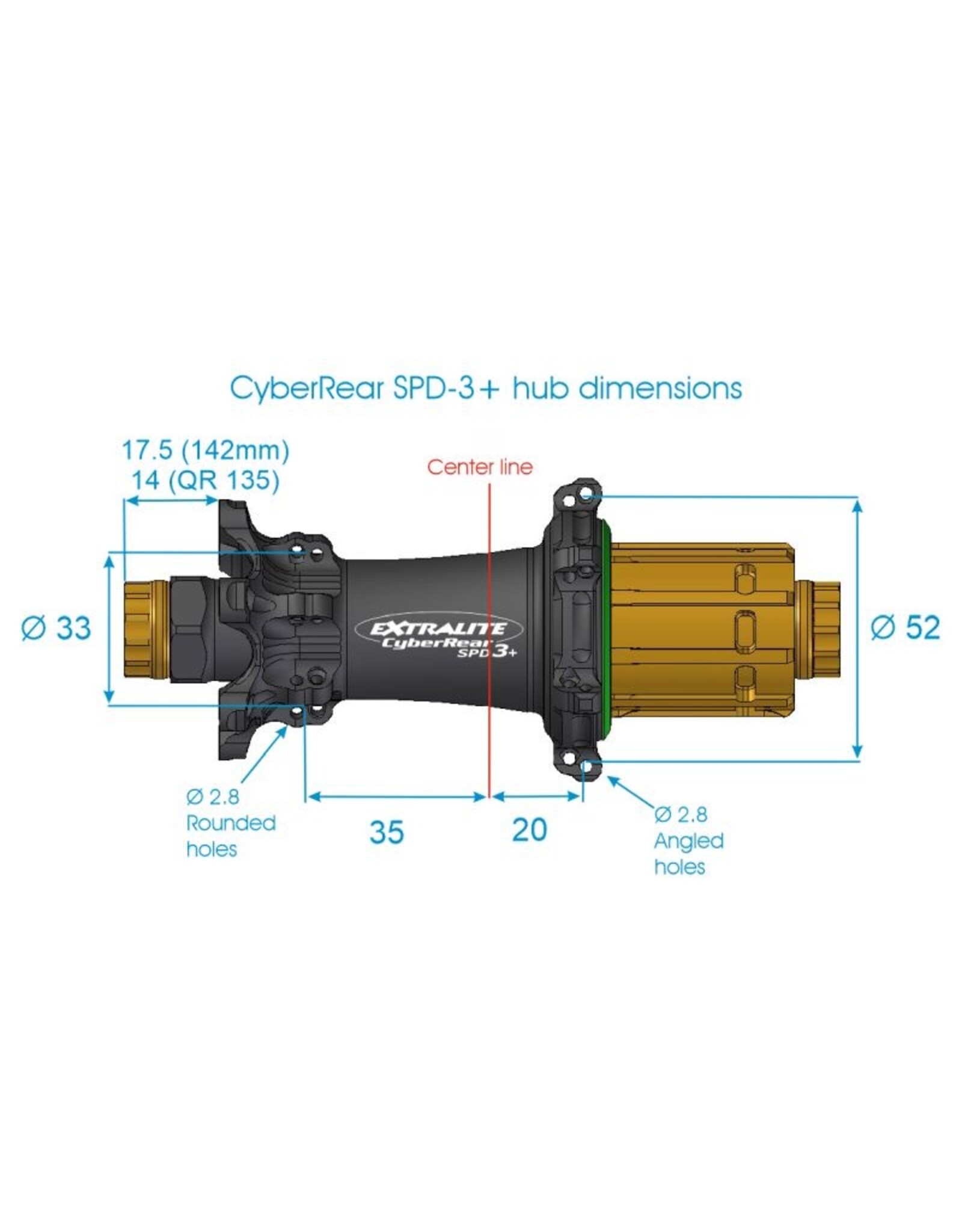

--Wheel Building Dimensions--
  FRONT REAR
  LEFT RIGHT LEFT RIGHT
 Flange Diameter 30.0 mm 42.0 mm 33.0 mm 52.0 mm
 Center to Flange 33.0 mm 25.0 mm 35.0 mm 20.0 mm

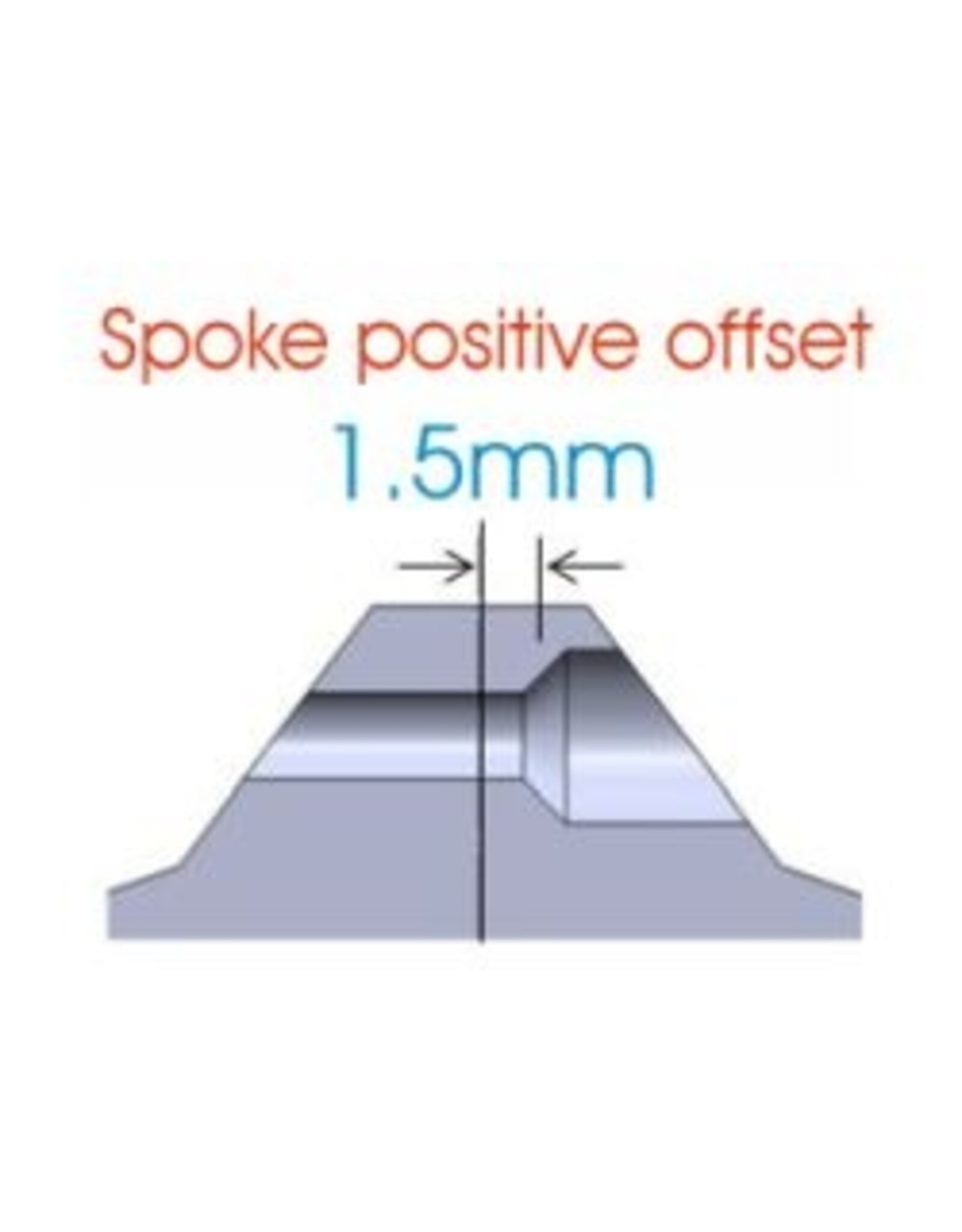

 Spoke Hole Offset 1.5 mm
 Spoke Hole Diameter 2.8 mm
*for accurate spoke lengths, please use Extralite's Cyber SPD3 hub Lacing Instructions



  • Match with the Extralite HyperStem or HyperStealth for a lightweight cockpit upgrade.
  • Build with Carbon-Ti X-Rotor Aero Centerlock Rotors or Ashima AiRotor Disc Rotors for maximum braking efficiency at minimal weight.
  • Compare alternatives such as the Carbon-Ti X-Hub SP Road Disc Hubset or DT Swiss 180 EXP Road Disc Hubs.
  • Browse our Grips, Bar Tape & Hoods section to finish your build with precision control.
___________________: ________________________
Spoke Hole: • 24 / 28 / 32
Axle Standard: • 12 x 100 / 12 x 142
Hub Interface: • Straight-Pull / J-Bend
Brake Interface: • Centerlock / 6-Bolt
Material: • 7075TX Aluminum | Grade 5 Titanium
