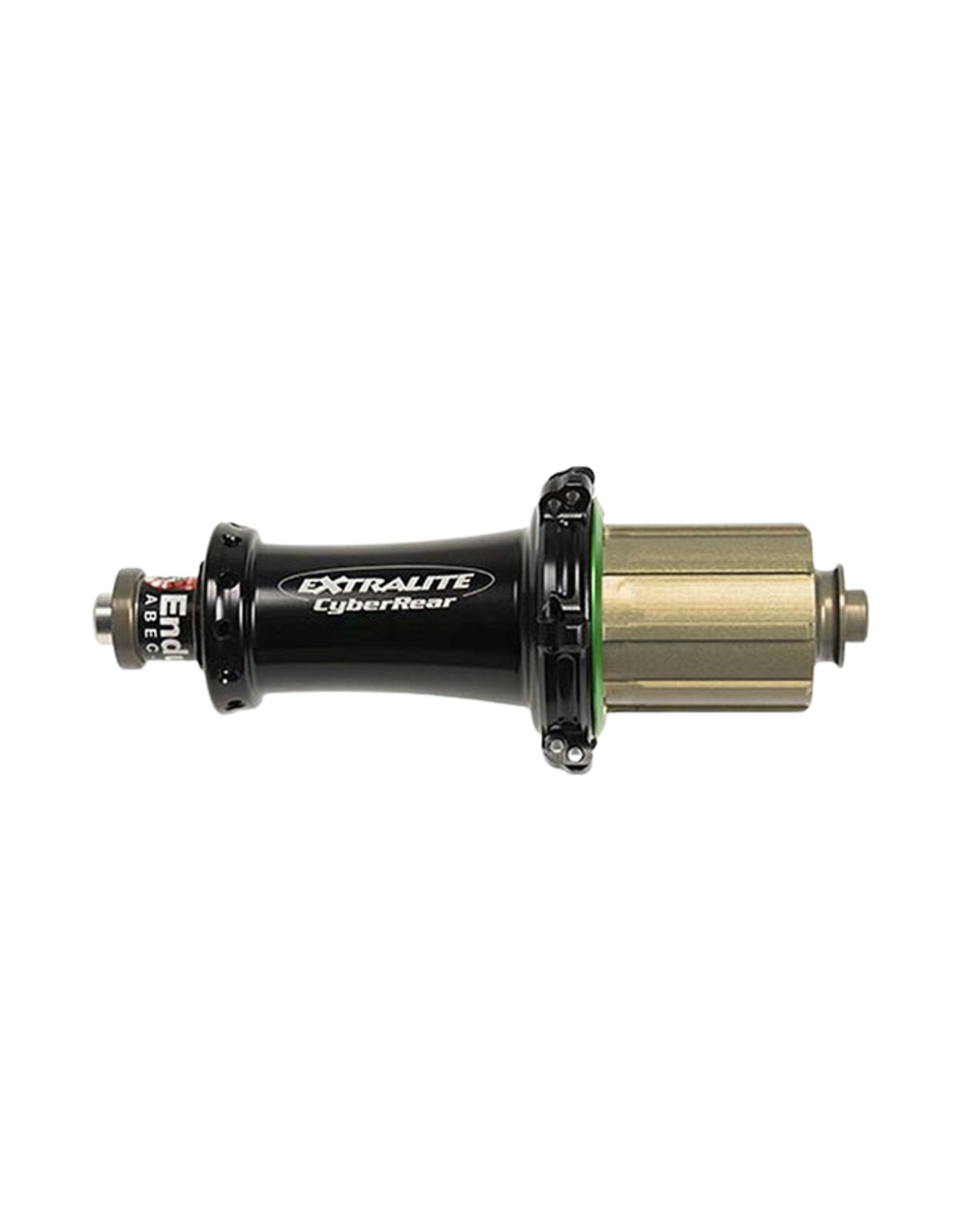

Extralite CyberRear SP Rear Road Hub
| Article number: | 010-02-03 |
| Availability: | Out of stock |
The Extralite CyberRear SP Road Hub brings elite-level precision and ultralight performance to rim brake wheelset builds. Weighing just ~134g, it’s crafted in Italy from 7075TXX aluminum with a titanium freehub mechanism. Its dual-pawl, 32t engagement system ensures fast response and exceptional power transfer.
The SP (Straight Pull) configuration enhances tension balance and reduces spoke fatigue for high-performance wheel builds. The Micro-Tuner bearing preload system allows perfect adjustment with minimal friction, while available ceramic bearing upgrades (HDC or XD15) further improve durability and efficiency.
Compatible with Shimano/SRAM 11-speed, XDR, and Campagnolo (N3W) freehubs, the CyberRear SP combines stiffness, smoothness, and reliability at one of the lowest weights in its class.
SERVICE
Due to the lightweight construction of Extralite hubs, it is recommended that service be performed at frequent intervals to ensure proper function and the longest possible wear life of the internal components. Detailed service instructions can be found here. We recommend Extralite's Alugrease or Buzzy's Slick Honey for proper and effective lubrication of the seals and freehub mechanism.
WHEEL BUILDING
Trust a skilled wheelbuilder for Extralite hubbed wheels. We offer expert service and rim/spoke advice. Contact us for custom wheels.
| Weight | ~124 - 142g |
| Spoke Holes | 24h / 28h |
| Axle Standard | 5 x 130 mm |
| Bearing Size | 6903 - (1)* / 6803 - (1)* |
| Brake Interface | Rim Brake |
| Freehub Engagement | 32t |
| *Can be ordered with either XD15 Ceramic, HDC Ceramic, or 440c Stainless Bearings | |

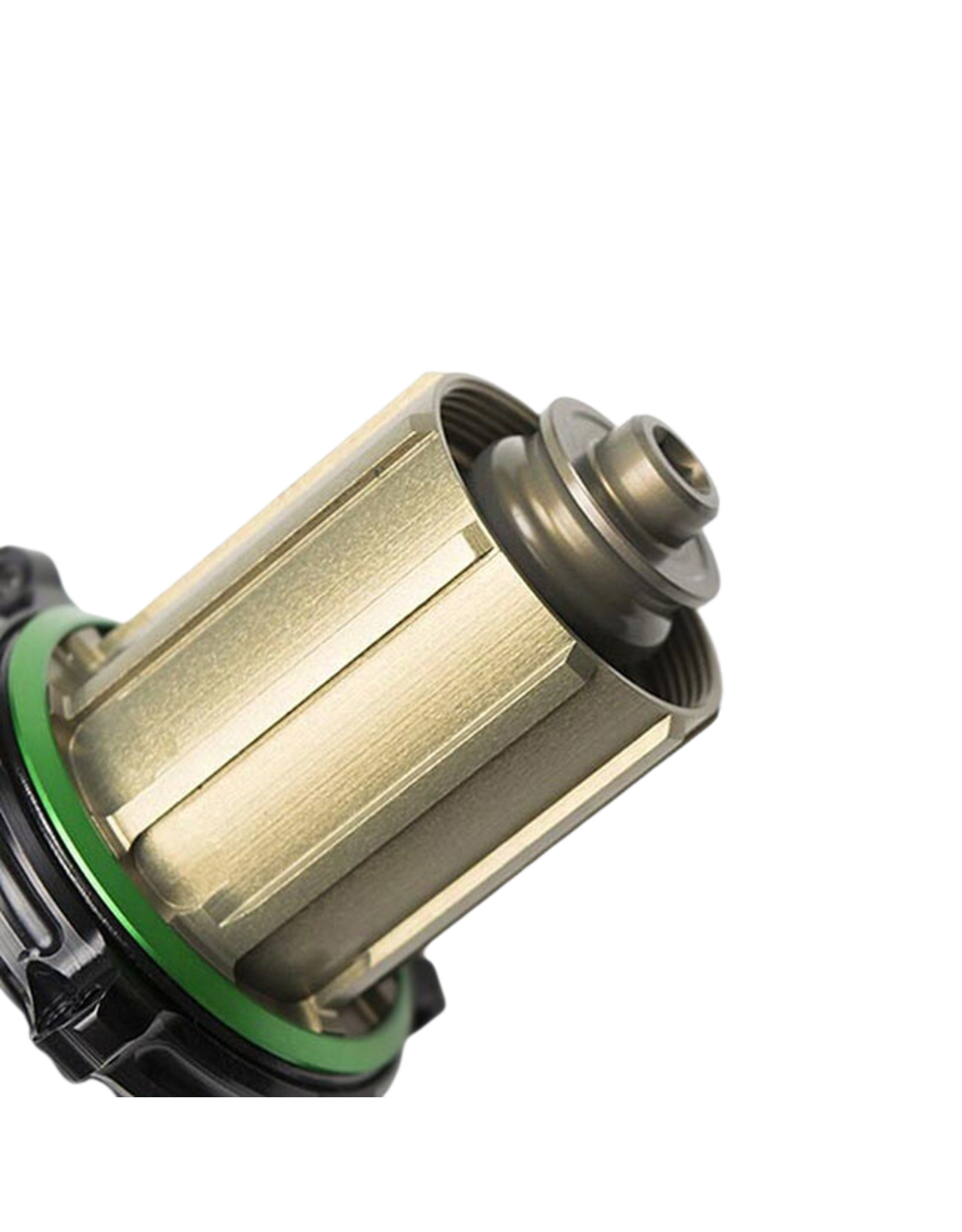

| CyberRear Freehub Options | |
| Shimano | Road 11Spd |
| SRAM | XDR |
| Campagnolo | N3W |
| Road 11 / 12 Speed | |

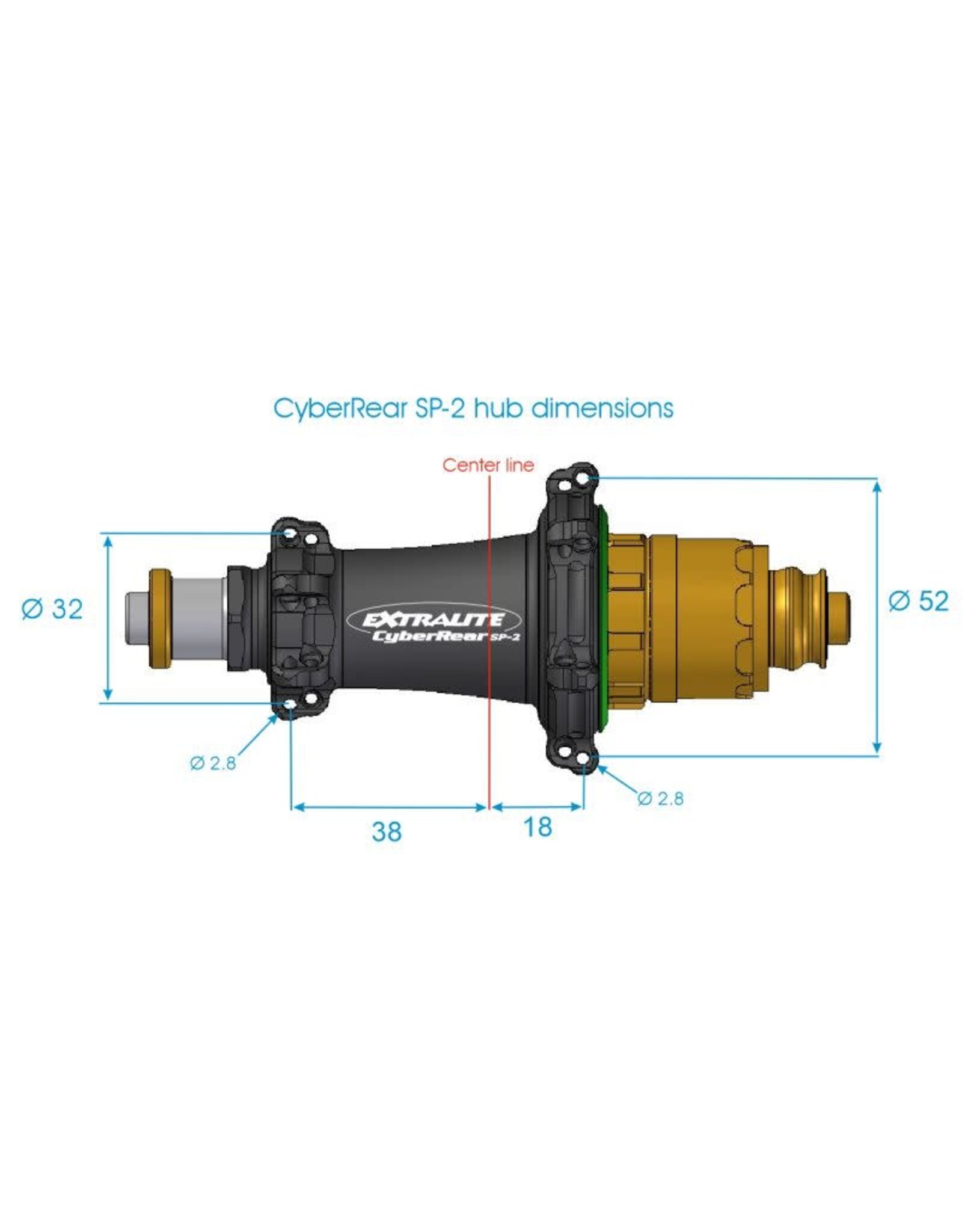

| --Wheel Building Dimensions-- | ||
| LEFT | RIGHT | |
| Flange Diameter | 32.0 mm | 52.0mm |
| Center to Flange | 38.0 mm | 18.0 mm |
| Spoke Hole Offset | 1.5 mm | |
| Spoke Hole Diameter | 2.6 mm | |
| *for accurate spoke lengths, please use Extralite's Cyber SP hub Lacing Instructions | ||
| ___________________: | ________________________ |
| Spoke Hole: | • 24 / 28 |
| Axle Standard: | • Quick Release - 5 x 130 mm |
| Hub Interface: | • Straight-Pull |
| Brake Interface: | • Rim Brake |
| Material: | • AL7075TX Aluminum | Grade 5 Titanium |
