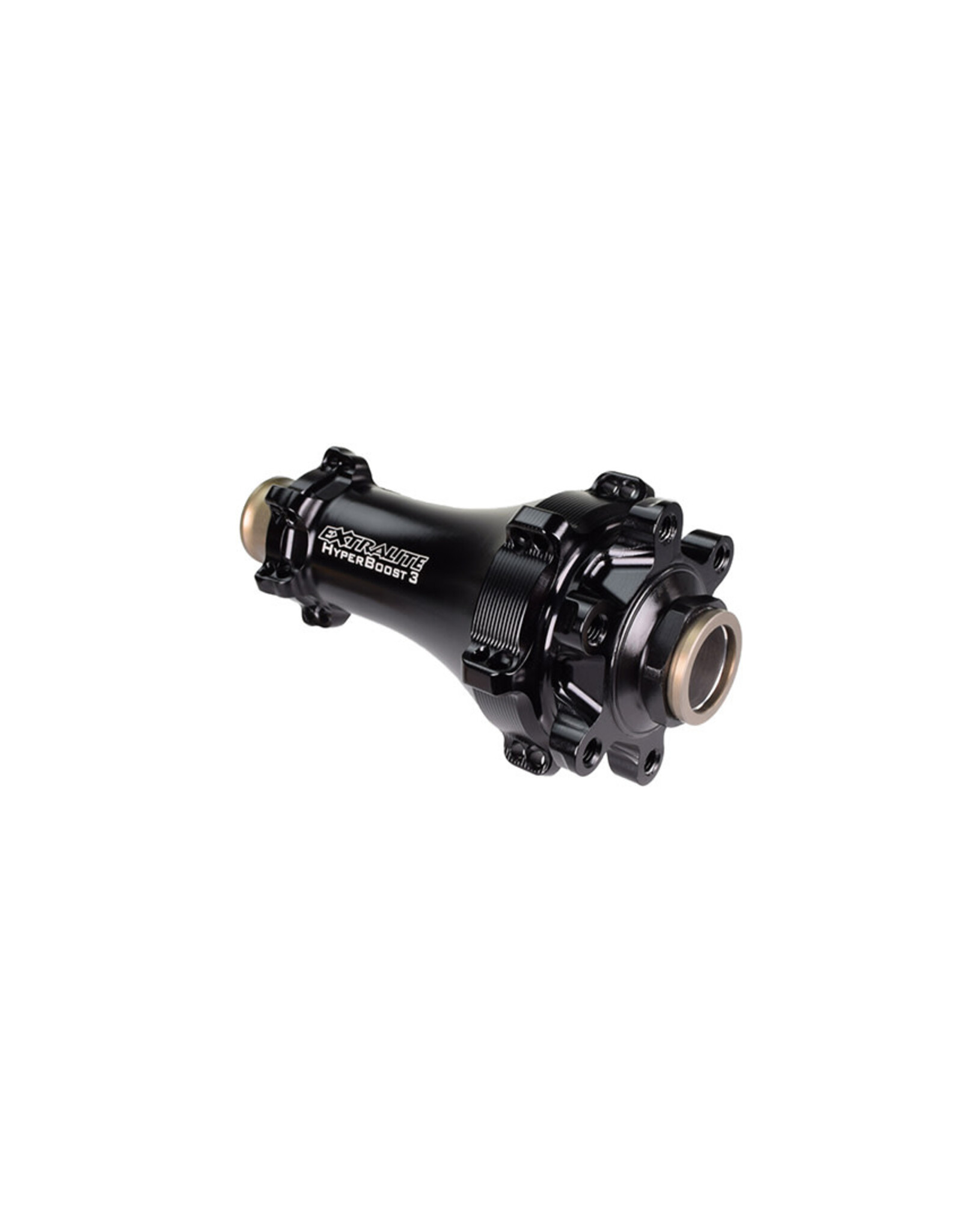

Extralite HyperBoost3 Disc Front Hub

$220.00
* Unit price: $220.00 /
Article number: 019-02-05
Availability: In stock (1)

The HyperBoost from Extralite is a prime example of this company's dedication to keeping up with an ever-evolving industry. Rather than simply swapping out the axle on their incredibly lightweight HyperFront to create a Boost 110 compatible hub, Extralite adapted their hub design to take advantage of the Boost standard's increased dropout width. The wider straight-pull spoke flanges are spaced to improve the spoke tension balance between the two sides of the wheel while increasing the wheel's lateral stiffness and overall strength. Internally, the HyperBoost hub retains Extralite's tried-and-true lightweight design, with durable stainless steel bearings housed within an expertly-machined 7075TX aluminum hub shell.



ORDERING

The HyperBoost is compatible with Boost 110 forks, and is available in 24, 28, and 32 hole configurations. It requires an appropriate 15x110mm thru axle. To calculate spoke lengths, see Extralite's spoke length table.



SERVICE

Due to the lightweight construction of Extralite hubs, it is recommended that service and inspection be performed at frequent intervals to ensure proper function and the longest possible wear life of the internal components. Detailed service instructions can be found here



Weight 78 grams
Hub Shell Material 7075TX aluminum
Bearing Sizes 17-26 2RS (2)
Technical Info
Hub Dimensions
Left Flange Diameter 53.6 mm
Right Flange Diameter 32 mm
Center to Flange Left 30 mm
Center to Flange Right 44 mm
