Extralite CyberRear SP-2+ Road Rear Hub

Home / Extralite CyberRear SP-2+ Road Rear Hub

Information

Availability:

Out of stock

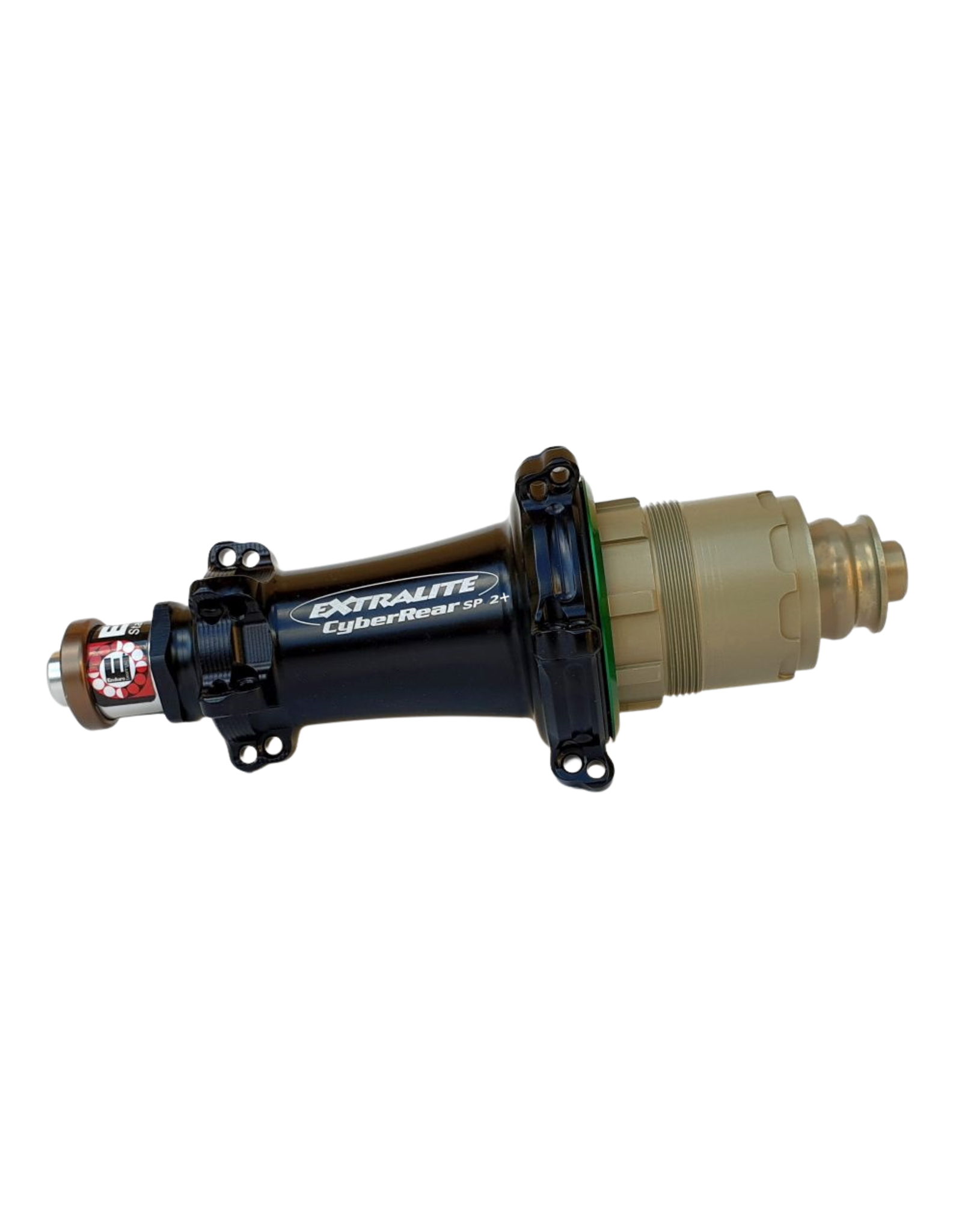

The Extralite CyberRear SP-2+ is Extralite's ultralight straight-pull rear road hub, engineered for custom rim brake wheel builds where low weight, precise engagement, and long-term serviceability remain priorities. CNC machined in Italy from high-strength 7075 aluminum with Grade 5 titanium components, the CyberRear SP-2+ combines refined machining with one of the lightest rear hub platforms available.

The updated hub shell features 2.8 mm straight-pull spoke holes for improved spoke compatibility, a 32-tooth dual-pawl drive mechanism for quick engagement, and Extralite's Micro-Tuner bearing preload system for precise adjustment. Ceramic bearing upgrades are also available for riders seeking the lowest possible rolling resistance.

Fair Wheel Bikes currently offers the CyberRear SP-2+ as part of the complete Extralite Cyber SP-2 Rim Brake Hubset. This page provides technical specifications, wheelbuilding information, and service resources for the rear hub.

Specification	CyberRear SP-2+
Weight	~124 - 142 g
Spoke Holes	24h / 28h
Axle Standard	QR 5 x 130 mm
Bearing Size	6903 - (1) / 6803 - (1)
Brake Interface	Rim Brake
Material	7075 Aluminum / Grade 5 Titanium
Freehub Engagement	32T
Bearing Options	XD15 Ceramic, HDC Ceramic, or 440C Stainless

Service & Maintenance

Extralite hubs are engineered for minimum weight and close manufacturing tolerances. Periodic inspection, cleaning, and lubrication help maintain smooth bearing performance, reliable freehub engagement, and maximum component life.

Detailed service procedures are available in the Extralite CyberRear SP Service Manual.

For lubrication, we recommend Extralite Alugrease or Buzzy's Slick Honey.

Compatible Freehub Bodies

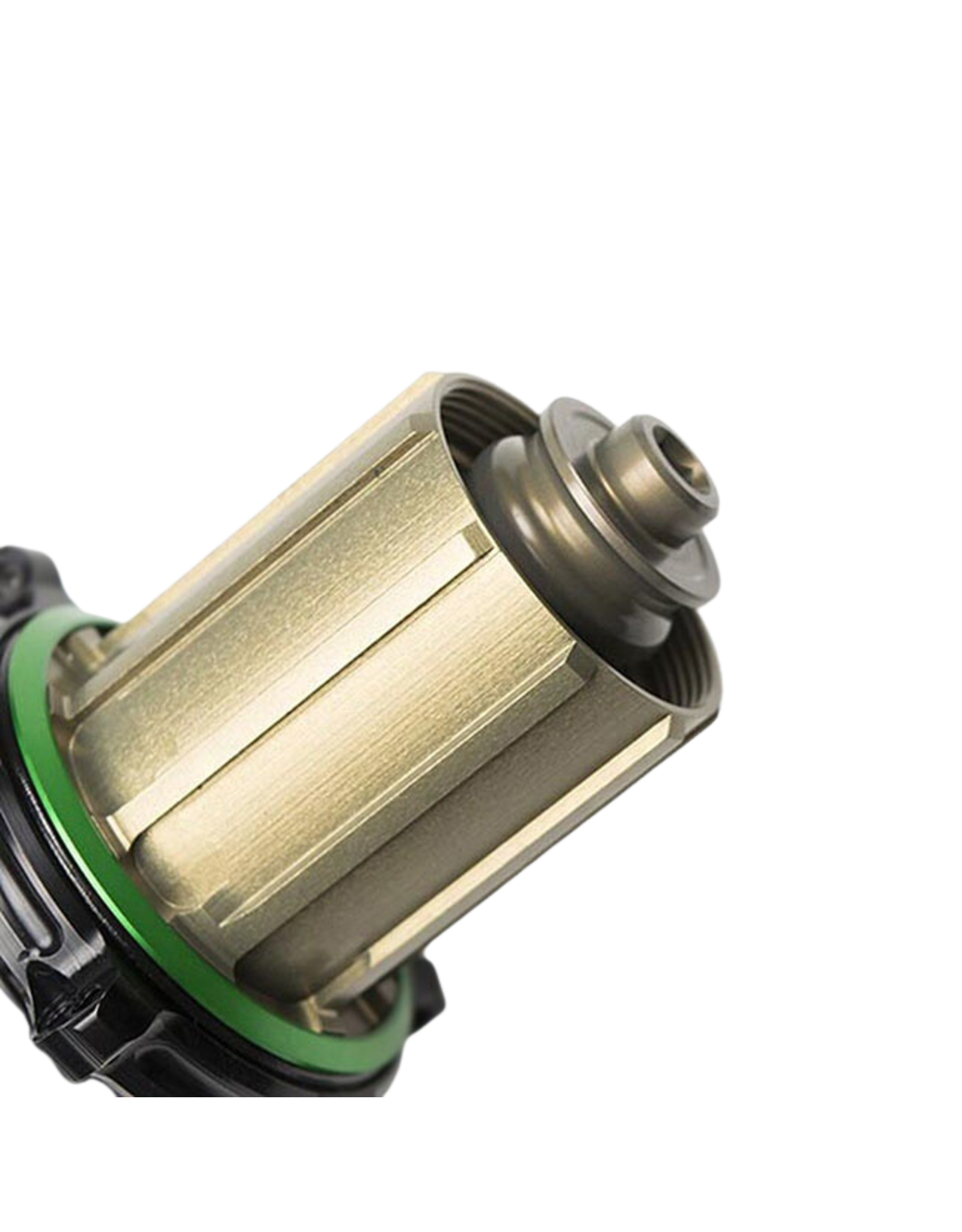

The CyberRear SP-2+ uses Extralite CyberRear freehub bodies for Shimano HG, SRAM XDR, and Campagnolo cassette standards. Replacement and conversion kits are available for riders changing drivetrains or servicing worn freehub components.

View Extralite CyberRear Freehub Body Kits

Wheel Building

The CyberRear SP-2+ is designed for lightweight custom road wheelsets using straight-pull spokes. Proper spoke selection, tension balance, and lacing technique are critical for optimum wheel performance. Our wheelbuilding team can recommend compatible rims, spokes, nipples, and complete custom wheel configurations.

For spoke length calculations and lacing specifications, refer to Extralite's official wheelbuilding guide, or contact us for assistance.

Wheel Building Dimensions	Left	Right
Flange Diameter	32.0 mm	52.0 mm
Center To Flange	38.0 mm	18.0 mm
Spoke Hole Offset	1.5 mm
Spoke Hole Diameter	2.8 mm

Compatible Components

The CyberRear SP-2+ is part of Extralite's lightweight rim brake hub platform. For complete wheel projects, see the Extralite Cyber SP-2 Rim Brake Hubset, pair with compatible quick release skewers, or maintain the hub with Extralite hub small parts.
