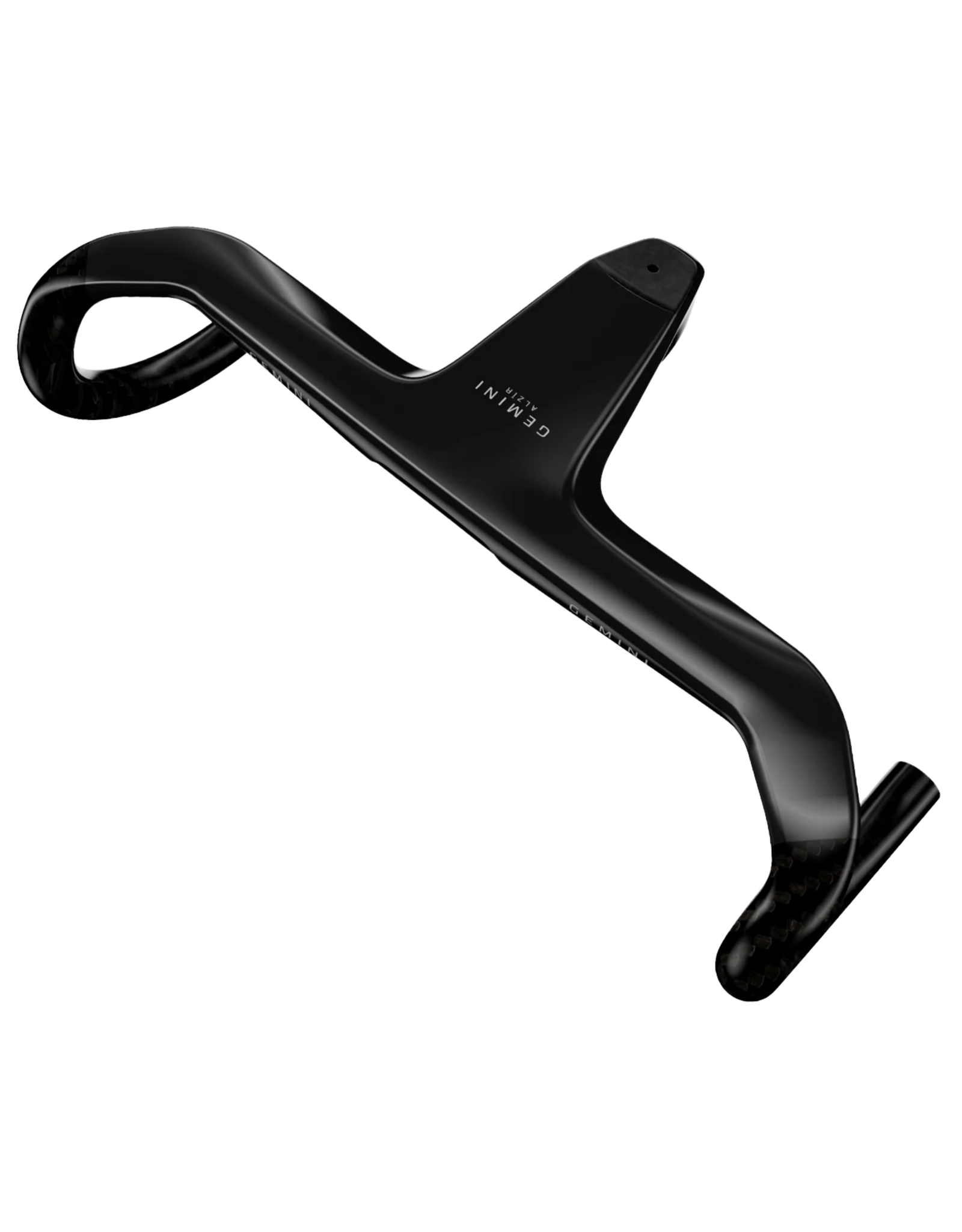

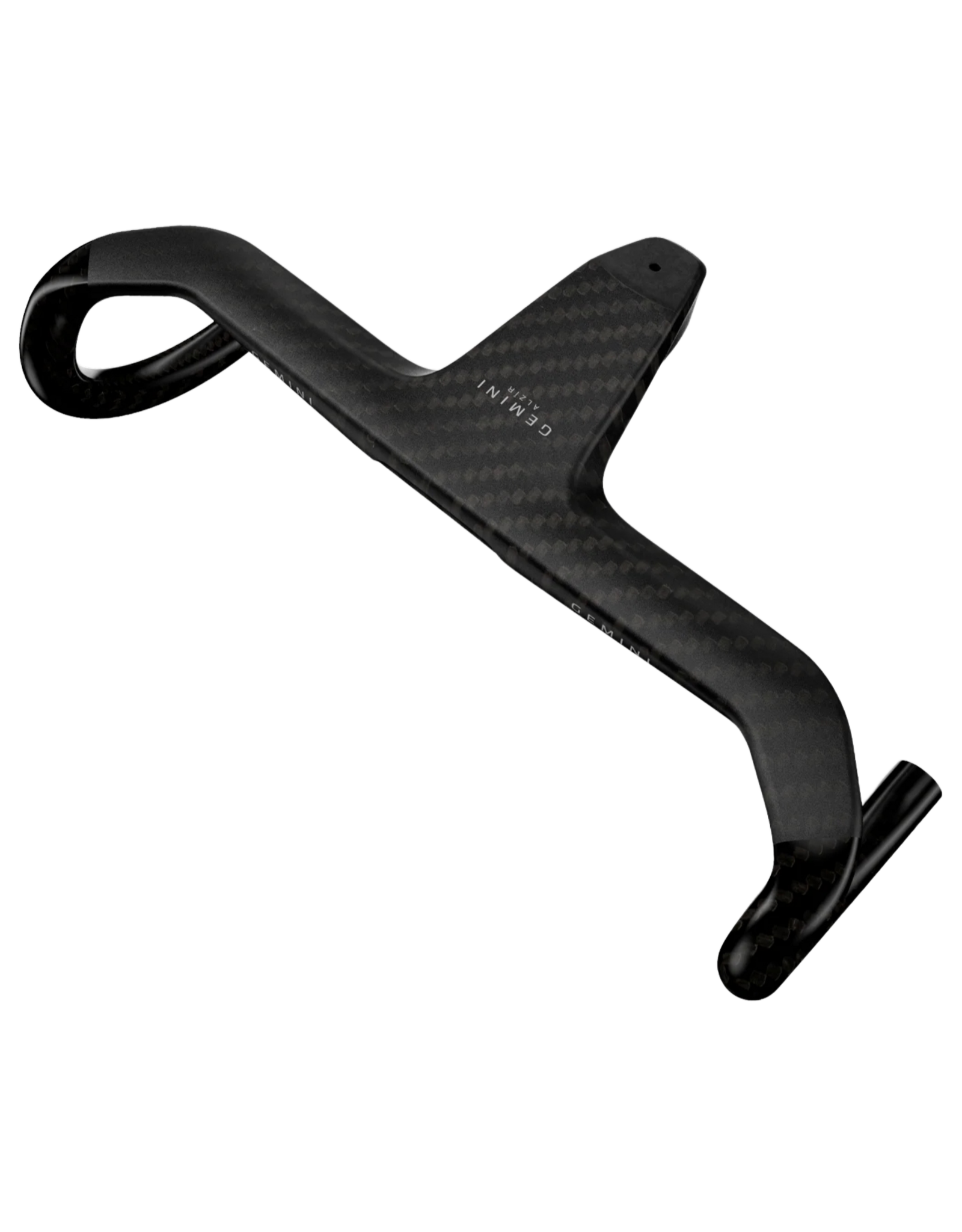

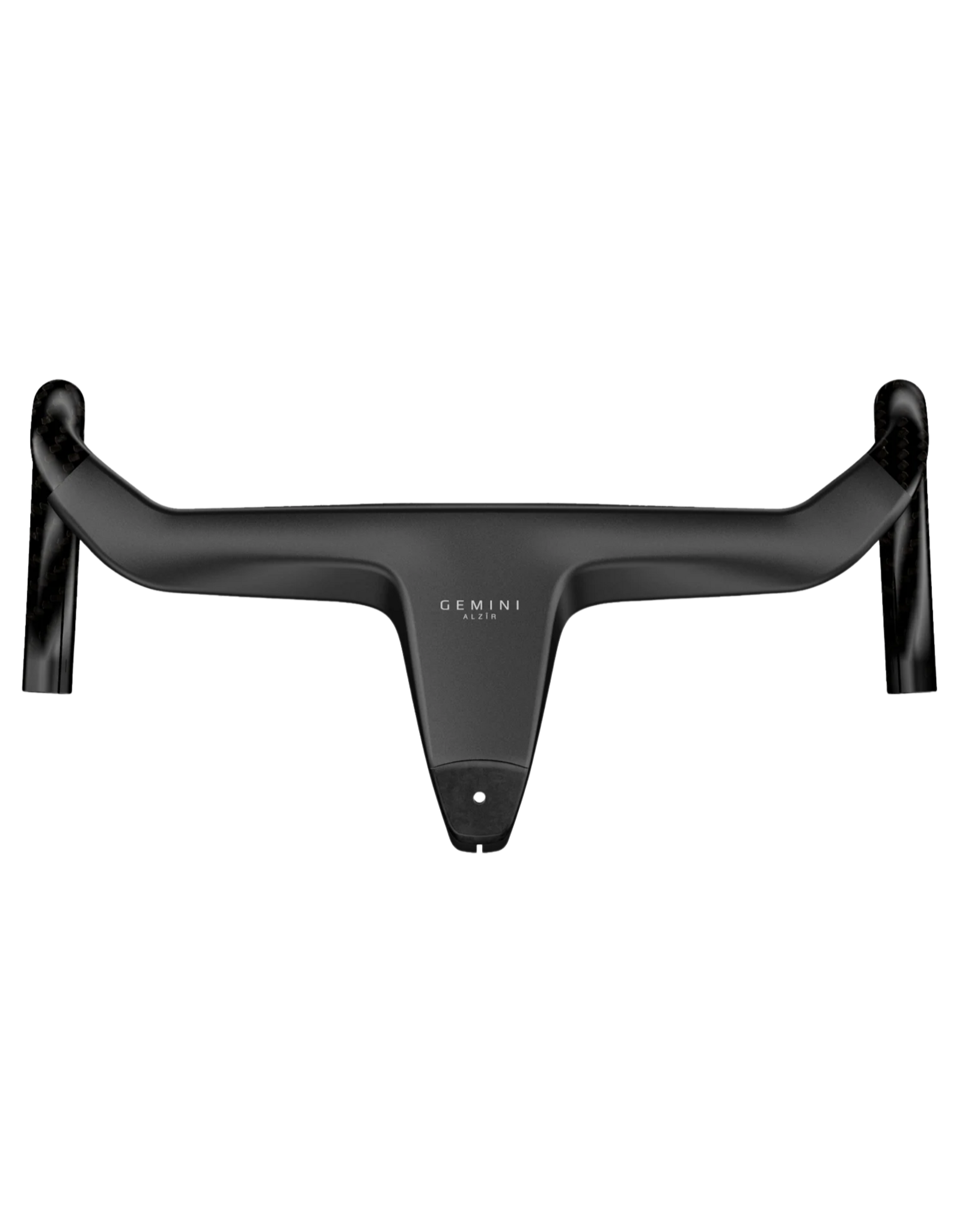

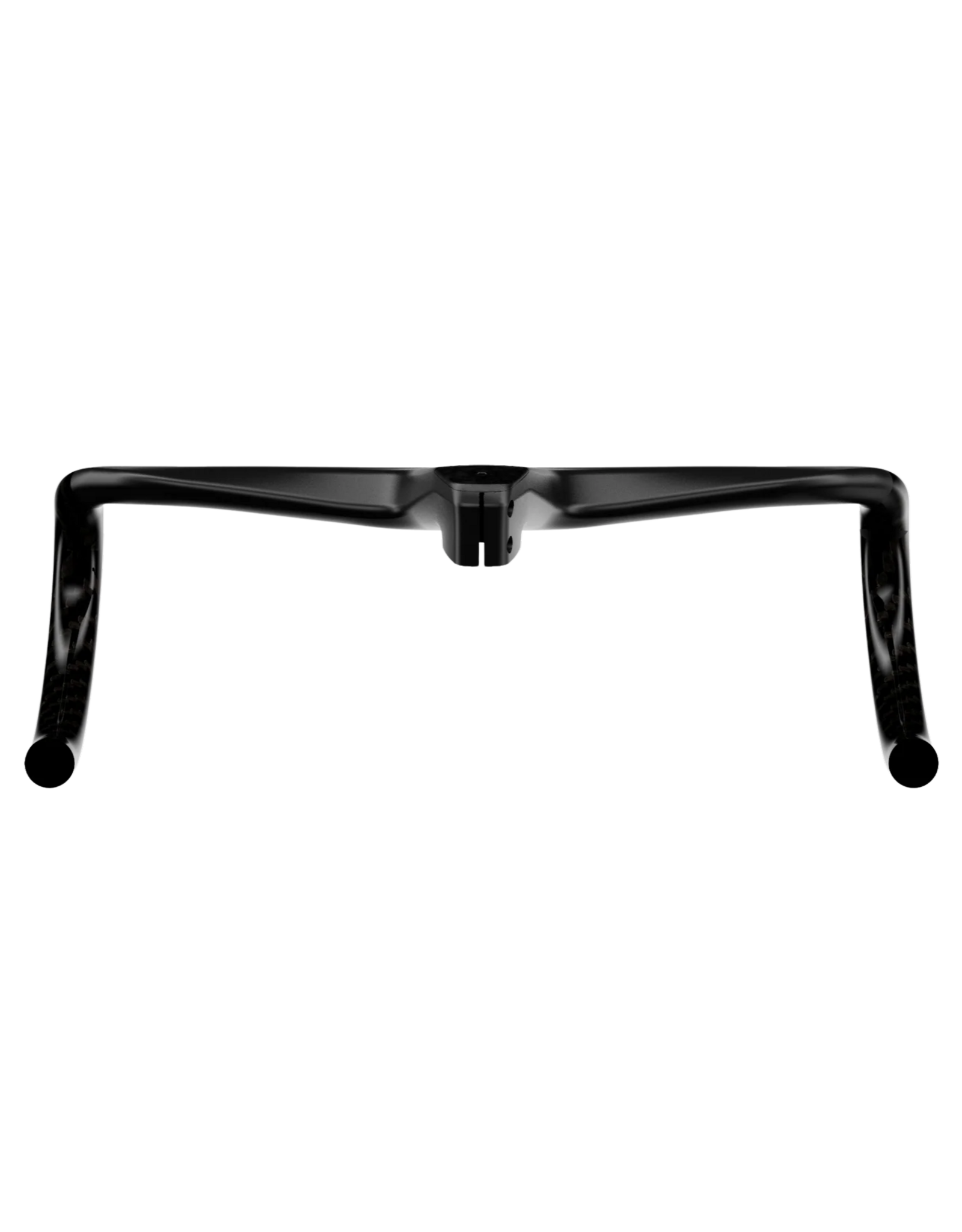

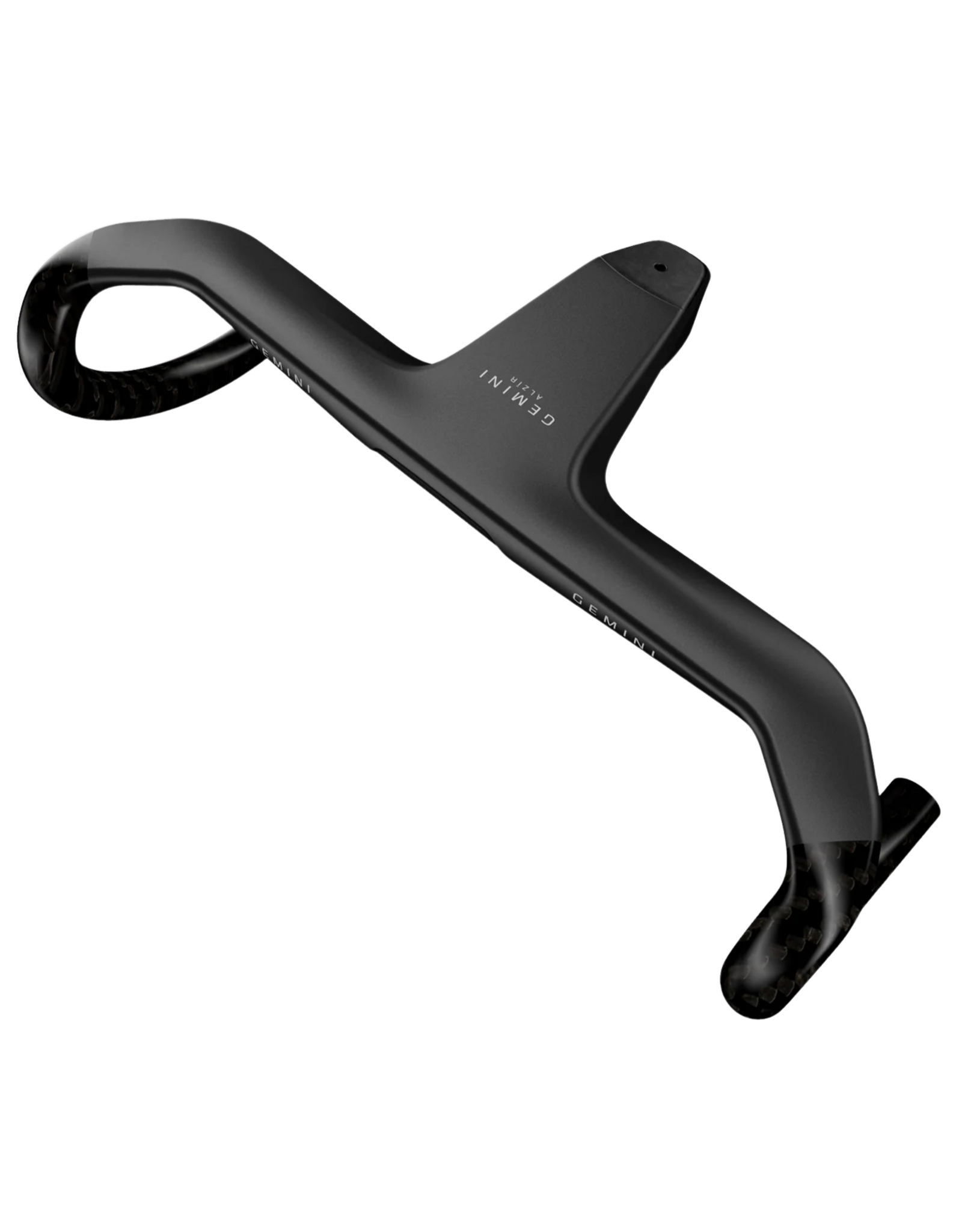

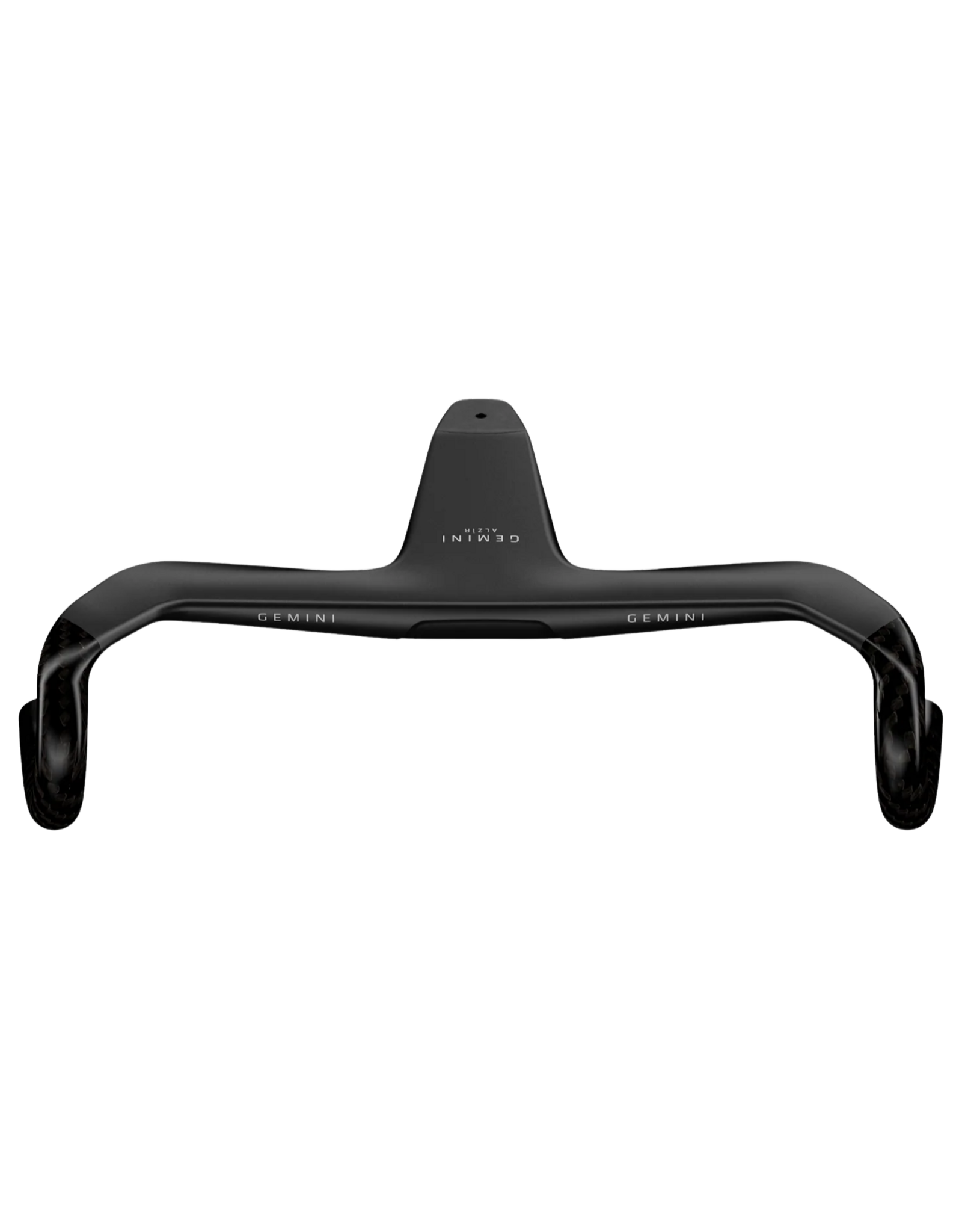

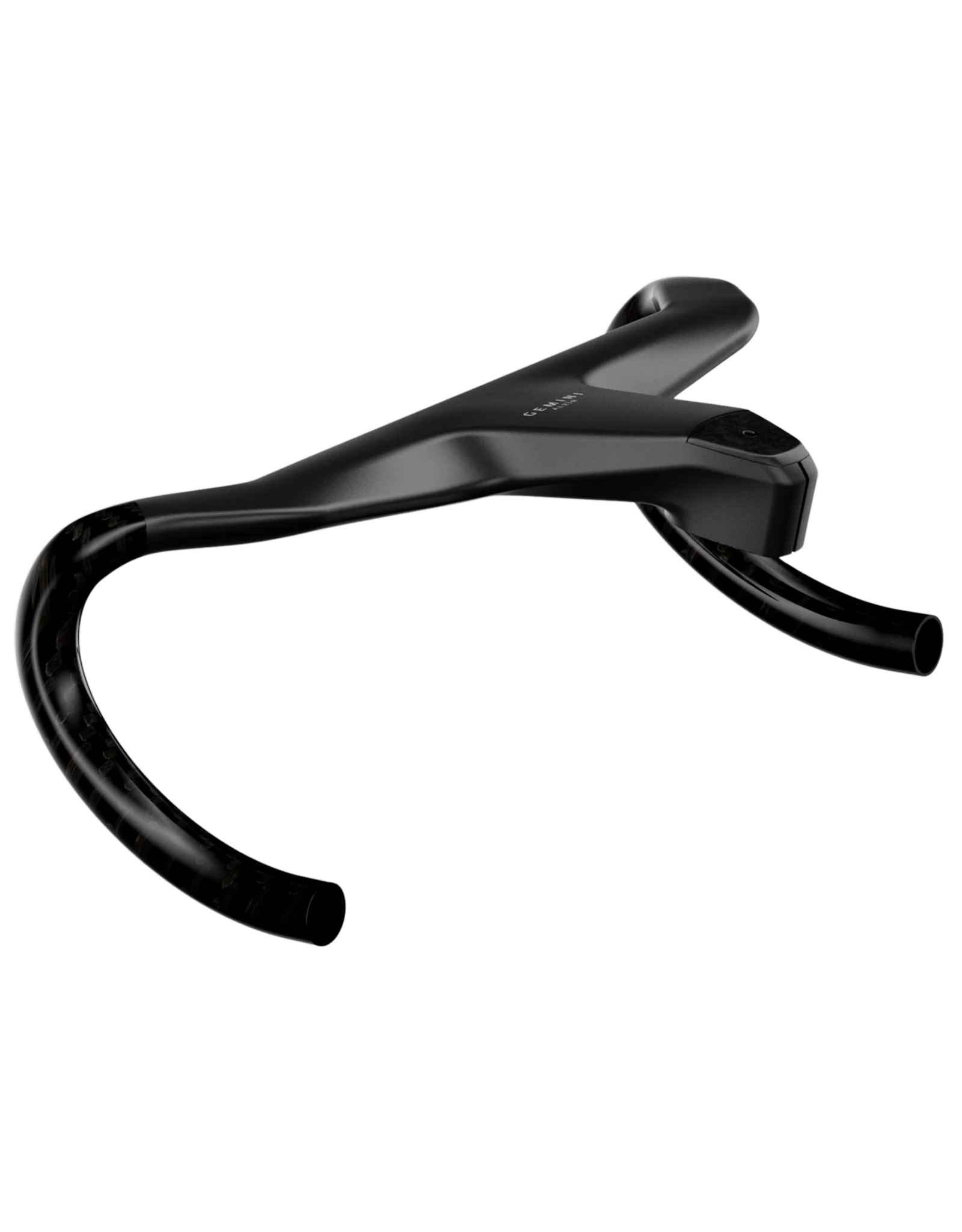

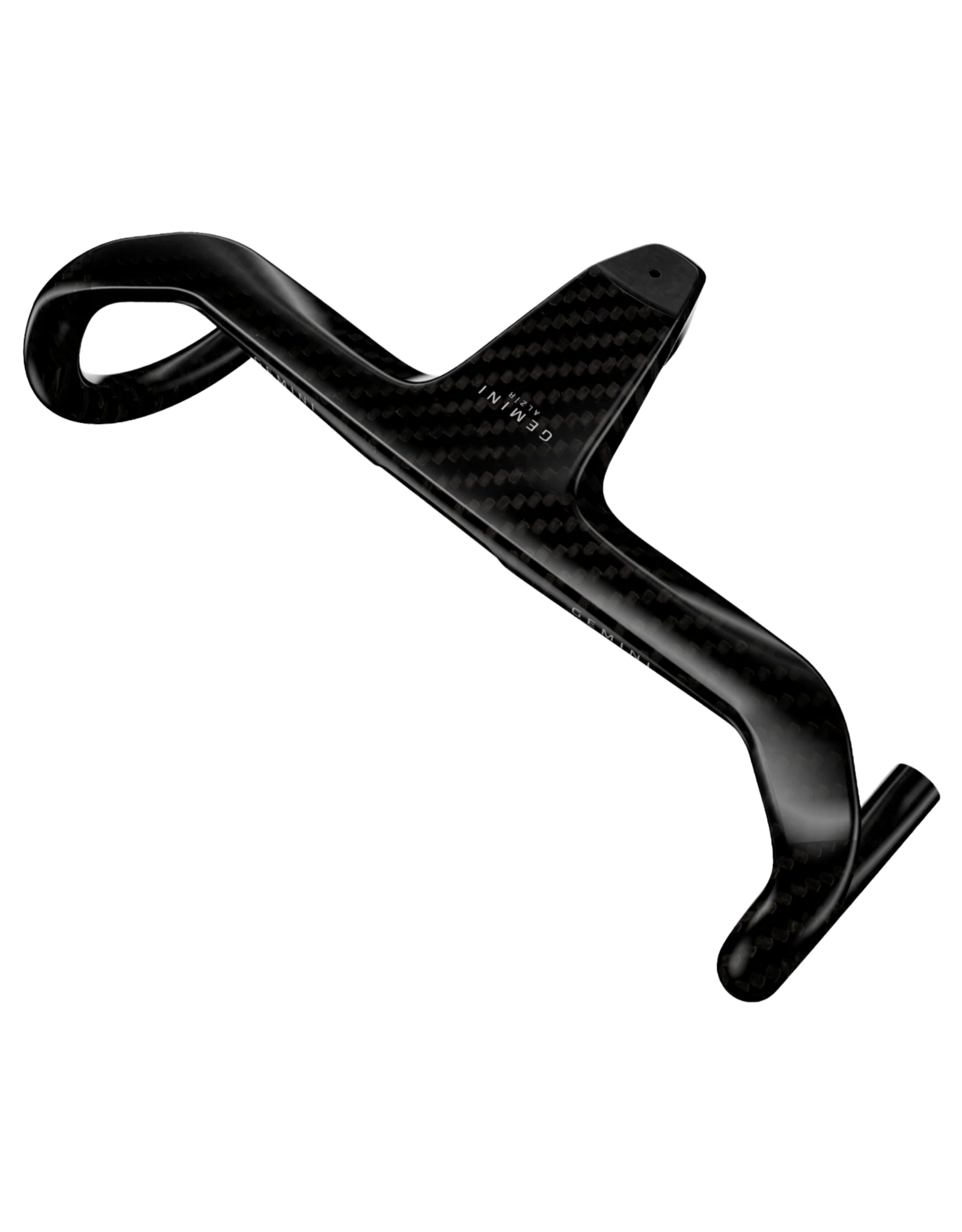

Gemini Älzir Carbon Road Handlebar
| Availability: | Out of stock |
The Gemini Älzir Integrated Carbon Road Handlebar is a configurable one-piece carbon cockpit for road bikes using internal, external, or frame-specific routing systems. Each bar is configured by steerer standard, routing style, width, stem length, reach, layup, and finish.
Configuration & Ordering
Älzir handlebars are special-order items. Final compatibility, headset cap requirements, routing style, geometry, finish availability, pricing, and lead time are confirmed through Fair Wheel Bikes before ordering.
Note: Some routing versions, headset caps, stem/width combinations, and finish options can incur an upcharge.
Routing Compatibility
ICR Internal Routing
Available for 1-1/4" and 1-1/8" steerer systems using fully integrated cable routing through the headset area.
ECR / Standard Cable
Designed for bikes using external or partially integrated cable systems where full headset routing is not required.
Frame Specific Compatibility
Scott Addict 2025
Frame-specific Älzir cockpit designed for the Scott Addict 2025 platform and compatible headset integration system.
Pinarello Dogma 2024 Oval
Purpose-built Älzir cockpit for the Pinarello Dogma 2024 using the oval steerer and proprietary integration layout.
Configuration Options
Geometry
Choose bar width, stem length, and reach from the available geometry options listed below.
Layup
Choose from Lightweight or Performance carbon layup options. Lightweight prioritizes low weight and comfort; Performance adds stiffness and durability.
Finish
Finish options include UD Matte (standard)
Upcharge:
UD Gloss, 12K Matte, and 12K Gloss.
Headset Covers
Some builds require frame-specific or routing-specific headset covers and spacer systems.
Compatible options include:
Handlebar Geometry
| Specification | Options |
| Stem Length | 90 / 100 / 110 / 120 mm |
| Reach | 65 / 75 mm |
| Drop | 125 mm |
| Flare | 3° |
| Outward Bend | 3° |
| Width (C-C) | 380 / 400 / 420 mm |
| Width At Ends | 408 / 428 / 448 mm |
Before Ordering
Confirm your exact frame model, frame year/generation, steerer size, cable routing style, current headset/spacer system, desired handlebar width, stem length, reach, layup, and finish. Integrated handlebars are not universal and must match the bike’s headset and routing system.
Confirm Fit & Availability
Call (520) 624-3045 or email [email protected] for compatibility, geometry selection, lead time, and final pricing.
