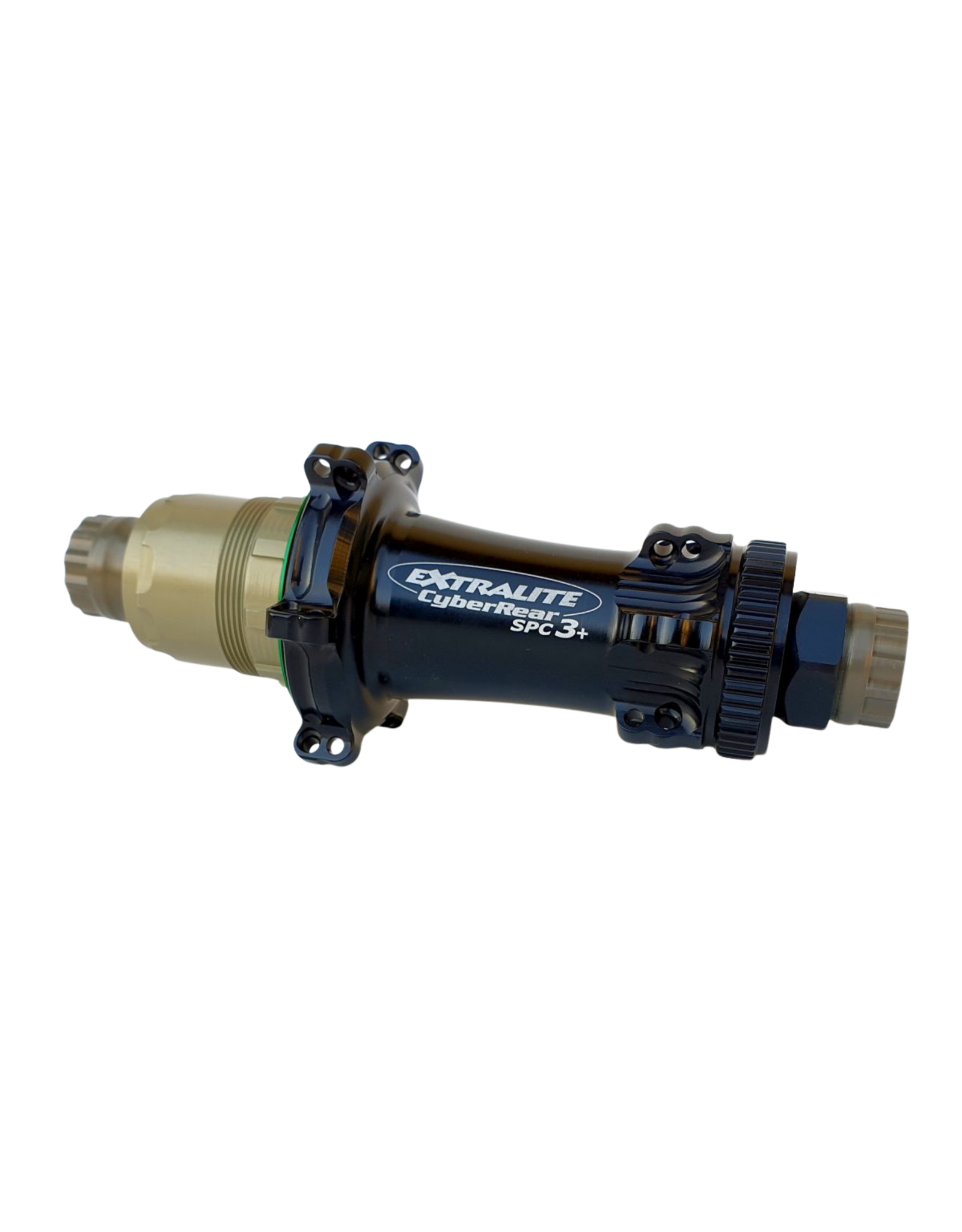

Extralite Cyber SPC-3+ Road Centerlock Disc Hubset
| Article number: | 010-02-03 |
| Availability: | Out of stock |

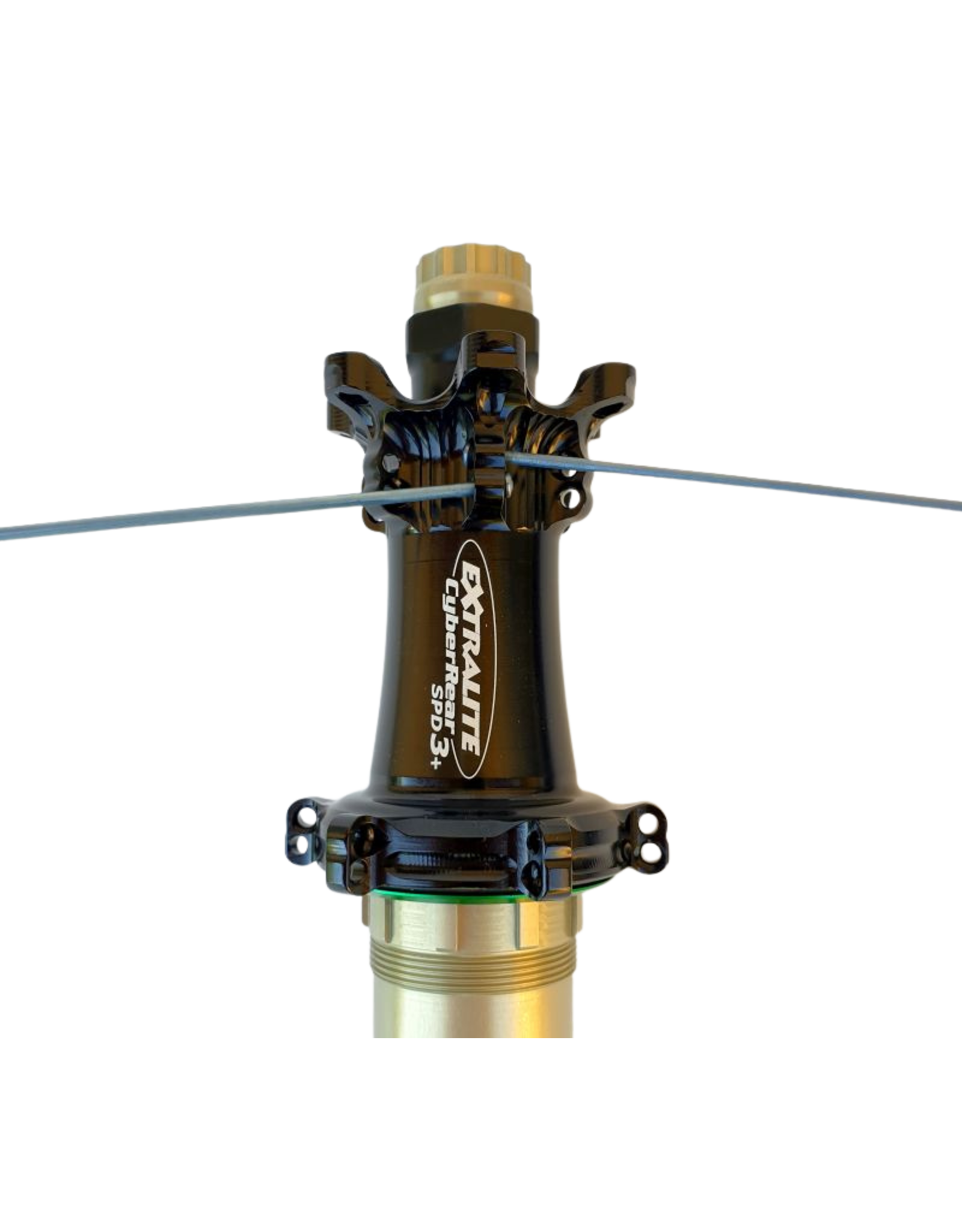

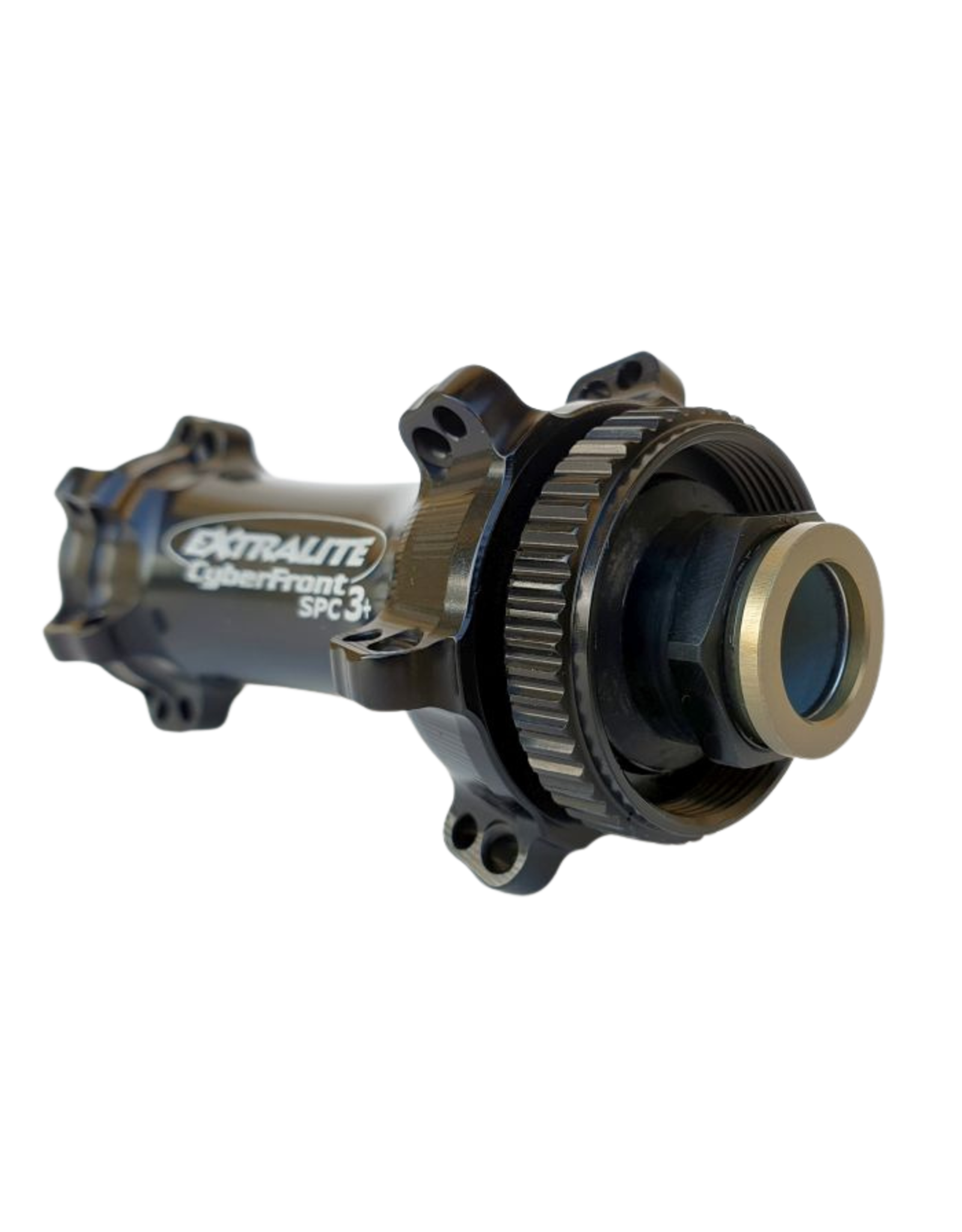

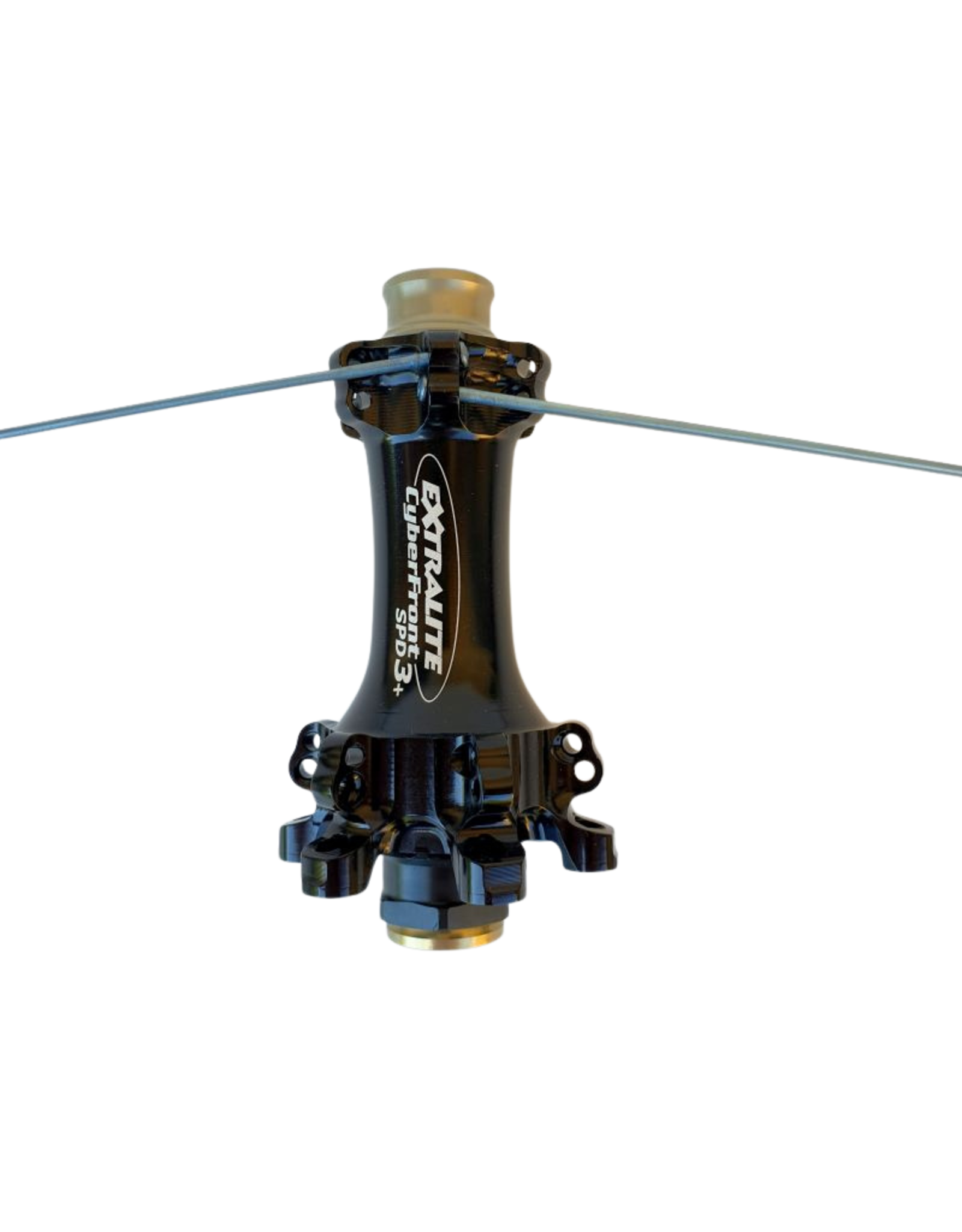

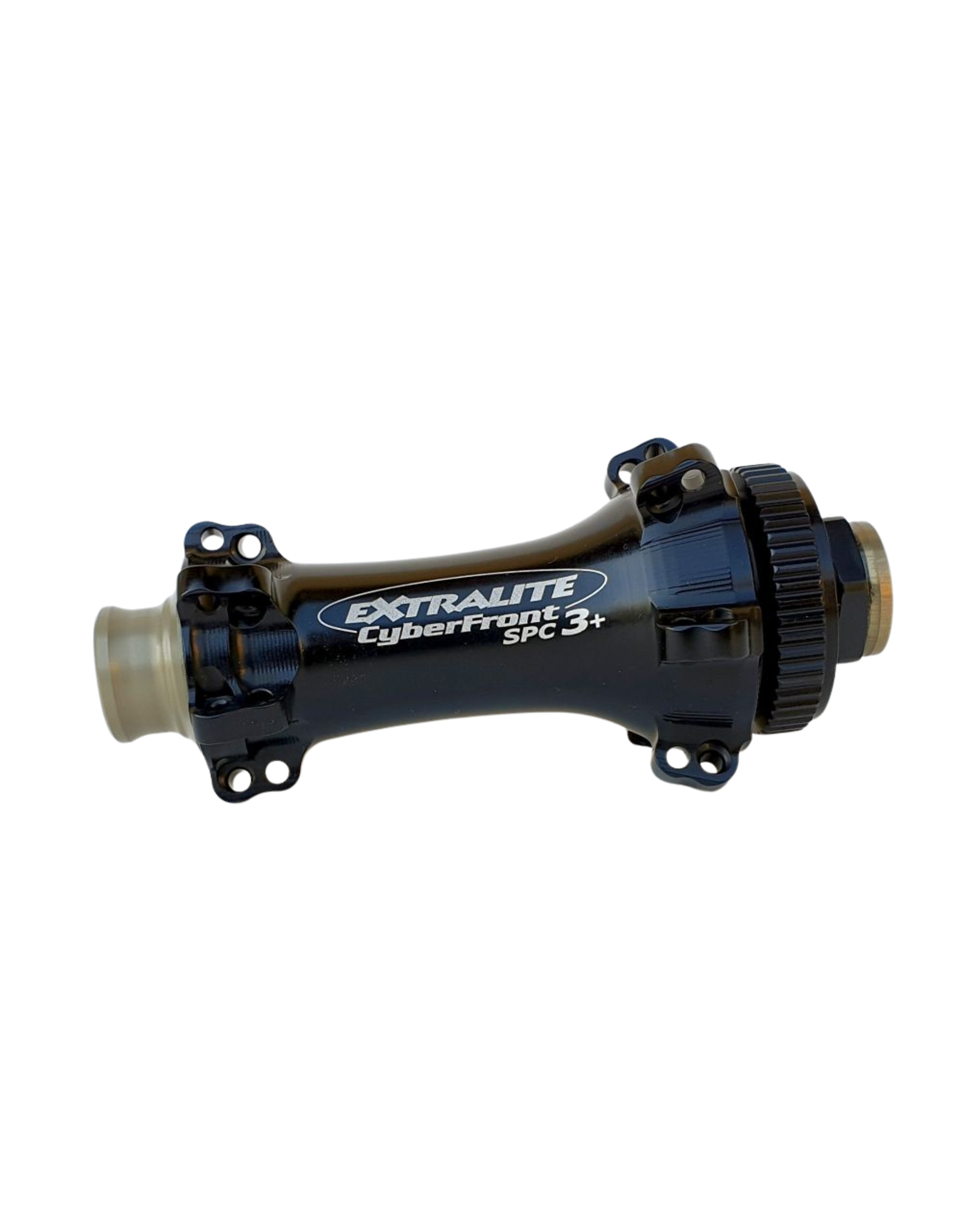

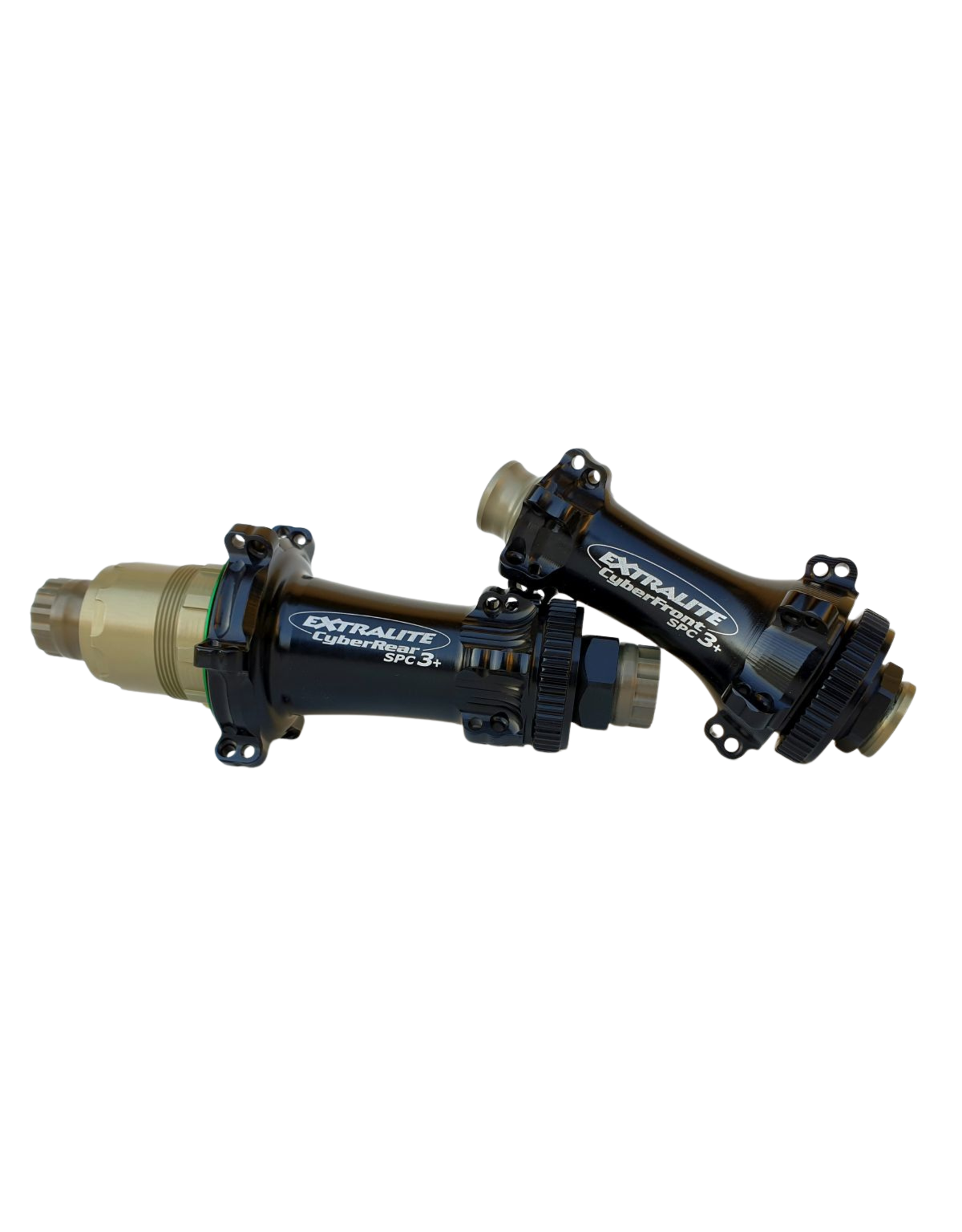

The Extralite Cyber SPC-3+ hubset represents the next evolution of ultralight road disc hubs, now optimized for Centerlock rotor mounting. Combining the CyberFront SPC-3+ (~61 g) and CyberRear SPC-3+ (~140–147 g depending on freehub), this hubset delivers unmatched stiffness-to-weight for elite road and gravel disc builds.
Machined in Italy from aerospace-grade 7075TXX aluminum and Grade 5 titanium, the SPC-3+ hubs feature cross-laced straight-pull flanges, Extralite’s signature Micro-Tuner preload system, and ceramic or stainless bearing options. Both hubs are EN-tested and approved for riders up to 200 lbs (90 kg).
Together, the pair weighs as little as ~214g, making the Cyber SPC-3+ hubset one of the lightest and most advanced Centerlock options on the market.
SERVICE
Due to the lightweight construction of Extralite hubs, it is recommended that service be performed at frequent intervals to ensure proper function and the longest possible wear life of the internal components. Detailed service instructions can be found here. We recommend Extralite's Alugrease or Buzzy's Slick Honey for proper and effective lubrication of the seals and freehub mechanism.
WHEEL BUILDING
Trust a skilled wheelbuilder for Extralite hubbed wheels. We offer expert service and rim/spoke advice. Contact us for custom wheels.
| Front | Rear | |
| Weight | ~65g | ~140 - 146g |
| Spoke Holes | 24h | |
| Axle Standard | 12 x 100 mm | 12 x 142 mm |
| Bearing Size* | (2) - 6802 | 6903 / 6803 (3) |
| Brake Interface | 6-Bolt | |
| Freehub Engagement | N / A | 32t |
| *Can be ordered with either XD15 Ceramic, HDC Ceramic, or 440c Stainless Bearings | ||

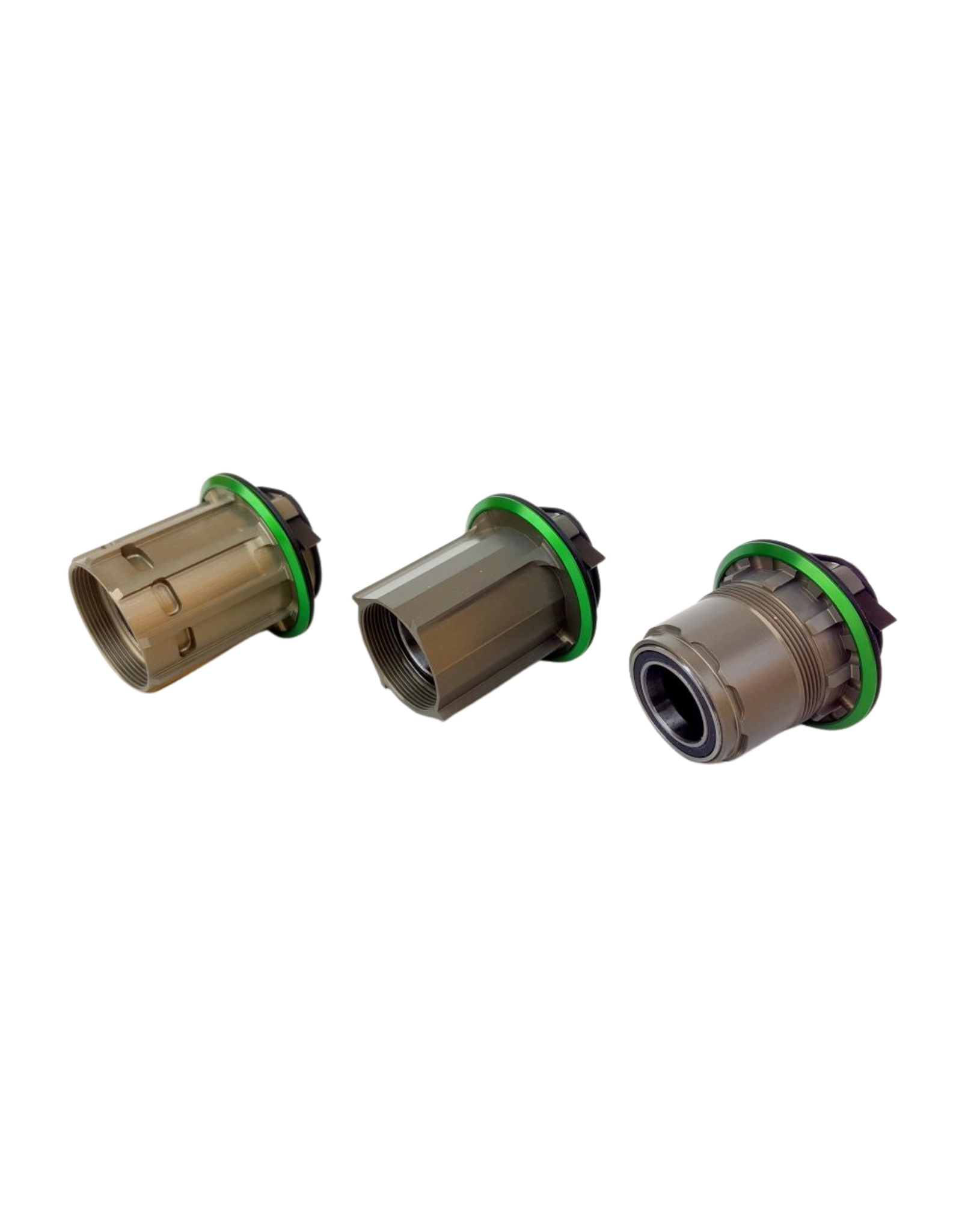

| CyberRear Freehub Options | |
| Shimano | Road 11Spd |
| SRAM | XDR |
| Campagnolo | N3W |
| Road 11 / 12 Speed | |

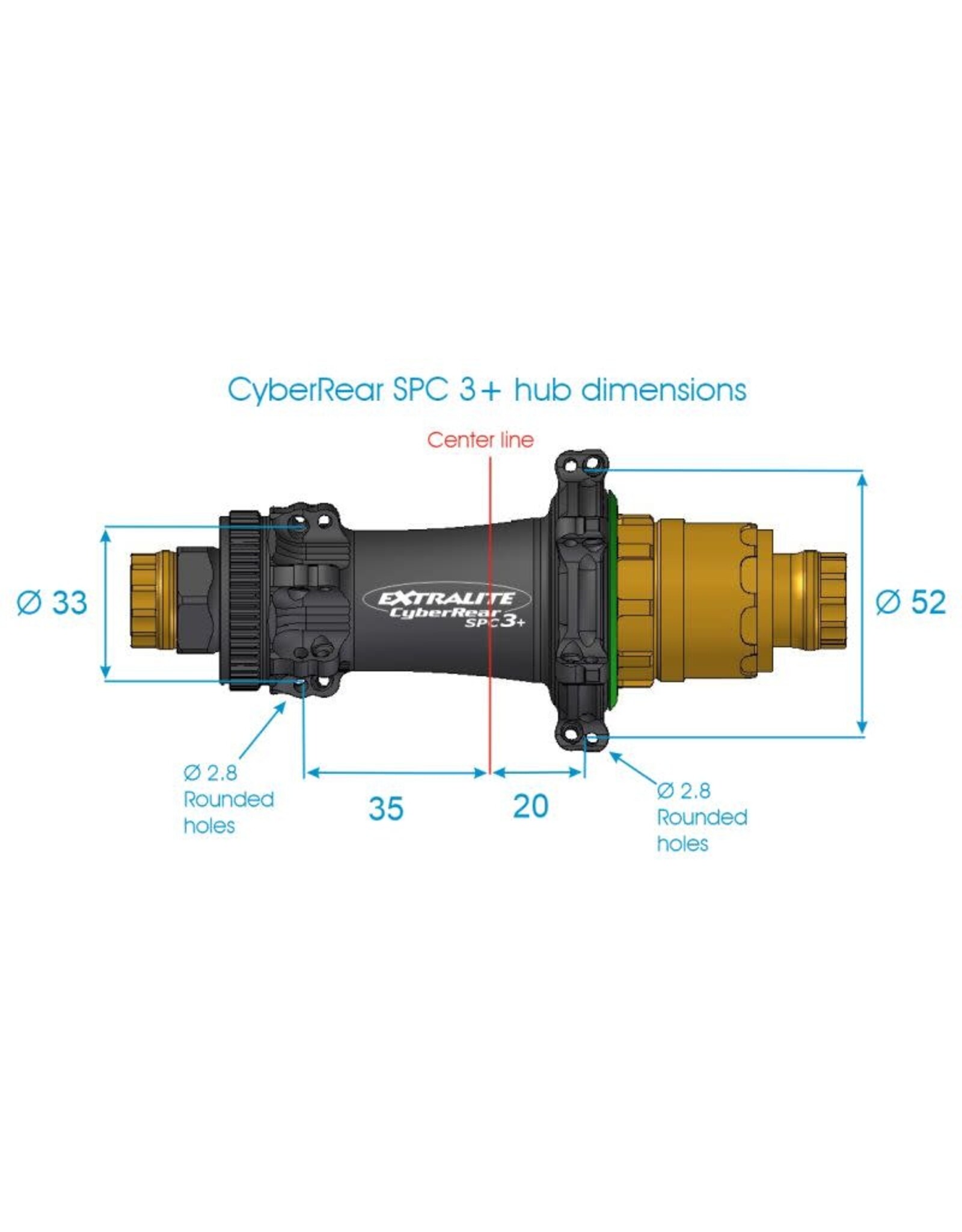

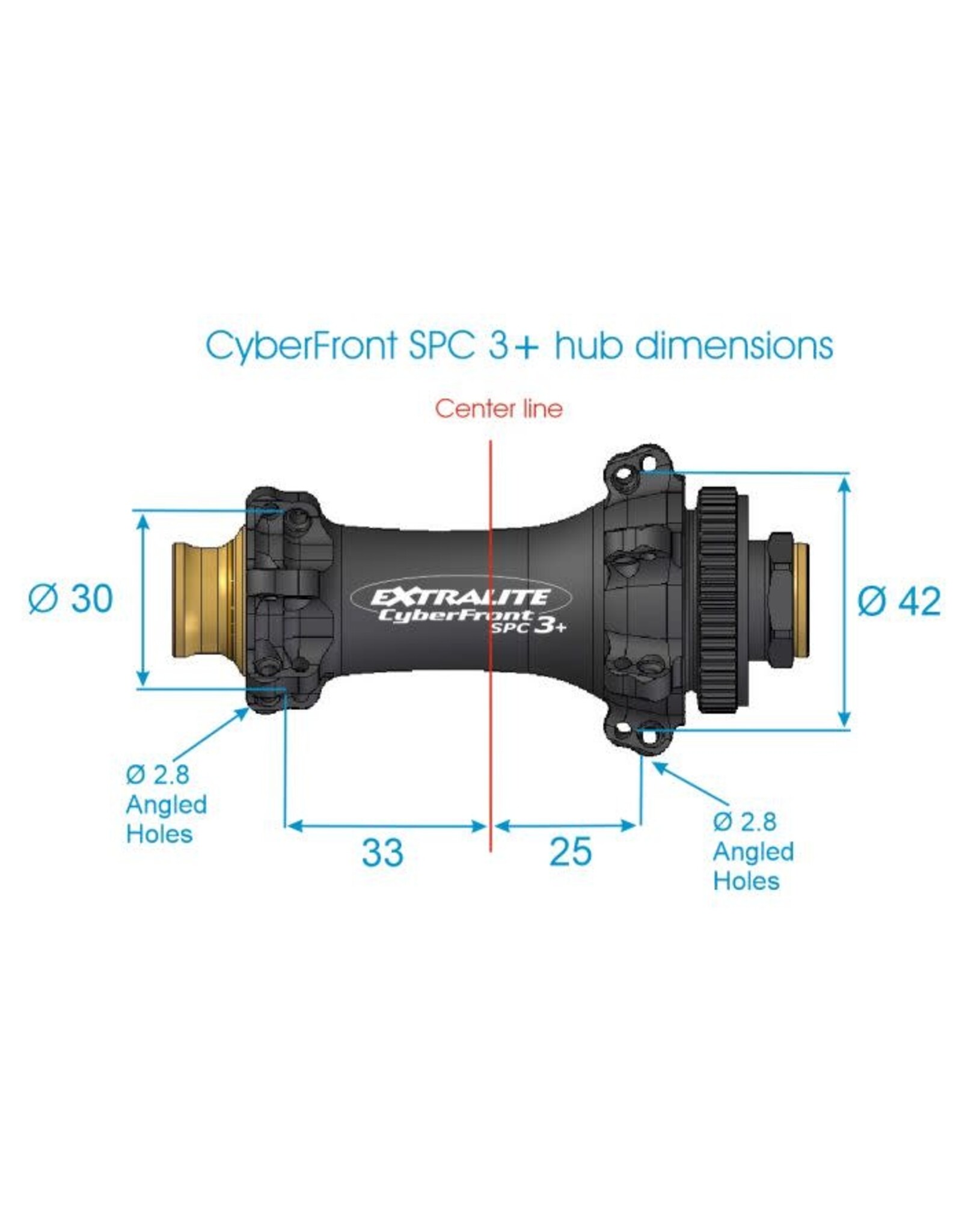

| --Wheel Building Dimensions-- | ||||
| FRONT | REAR | |||
| LEFT | RIGHT | LEFT | RIGHT | |
| Flange Diameter | 30.0 mm | 42.0 mm | 33.0 mm | 52.0 mm |
| Center to Flange | 33.0 mm | 25.0 mm | 35.0 mm | 20.0 mm |

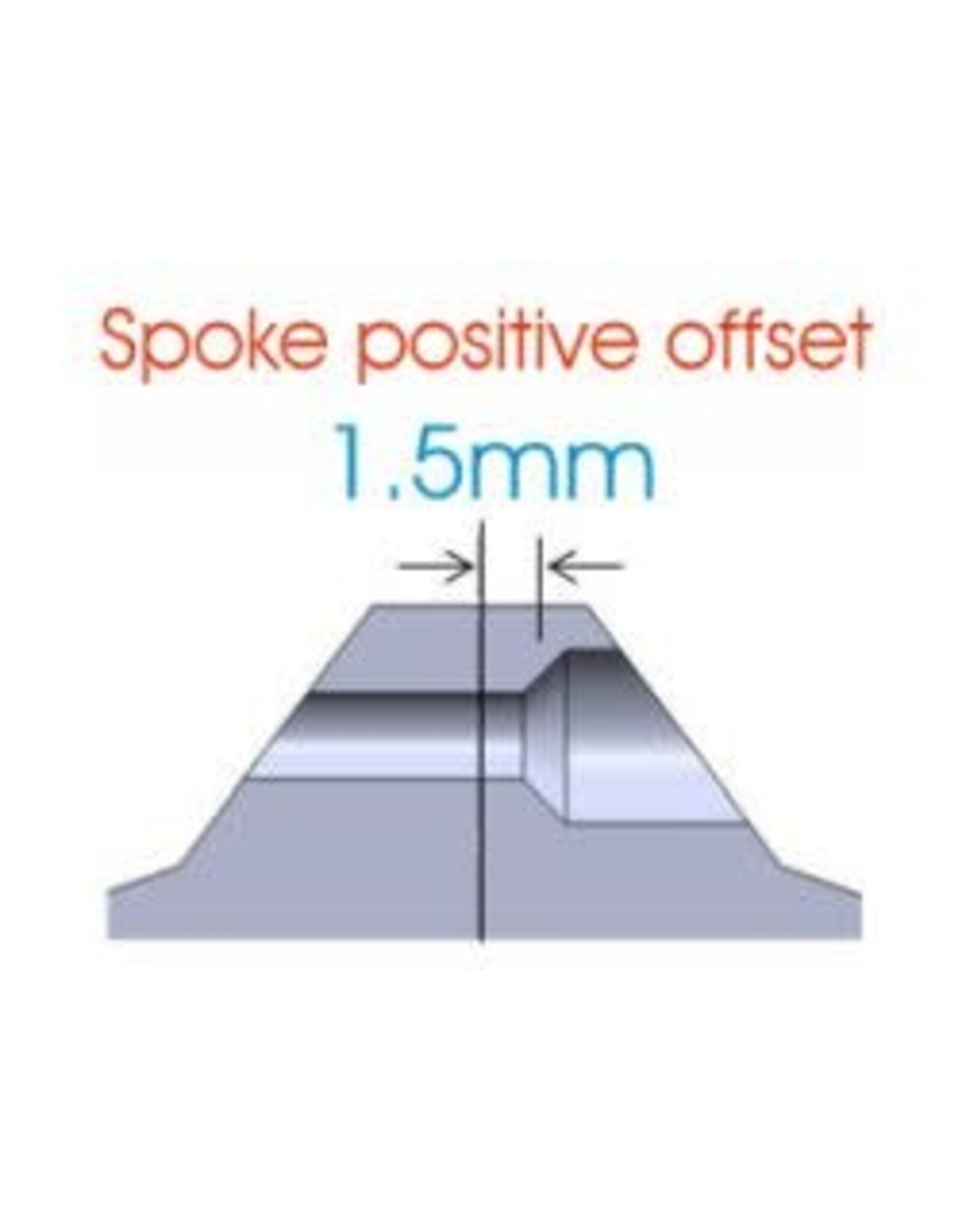

| Spoke Hole Offset | 1.5 mm | |||
| Spoke Hole Diameter | 2.8 mm | |||
| *for accurate spoke lengths, please use Extralite's Cyber SPD3 hub Lacing Instructions | ||||
- Match with the Extralite HyperStem or HyperStealth for a lightweight cockpit upgrade.
- Build with Carbon-Ti X-Rotor Aero Centerlock Rotors or Ashima Centerlock Rotors for minimal weight.
- Compare alternatives such as the Carbon-Ti X-Hub SP Road Disc Hubs or DT Swiss 180 EXP Road Disc Hubs.
- Browse our Bar Tape & Hoods section to finish your build with precision control.
| ___________________: | ________________________ |
| Spoke Hole: | • 24 |
| Axle Standard: | • 12 x 100 / 12 x 142 |
| Hub Interface: | • Straight-Pull |
| Brake Interface: | • Centerlock |
| Material: | • AL7075TX Aluminum | Grade 5 Titanium |
