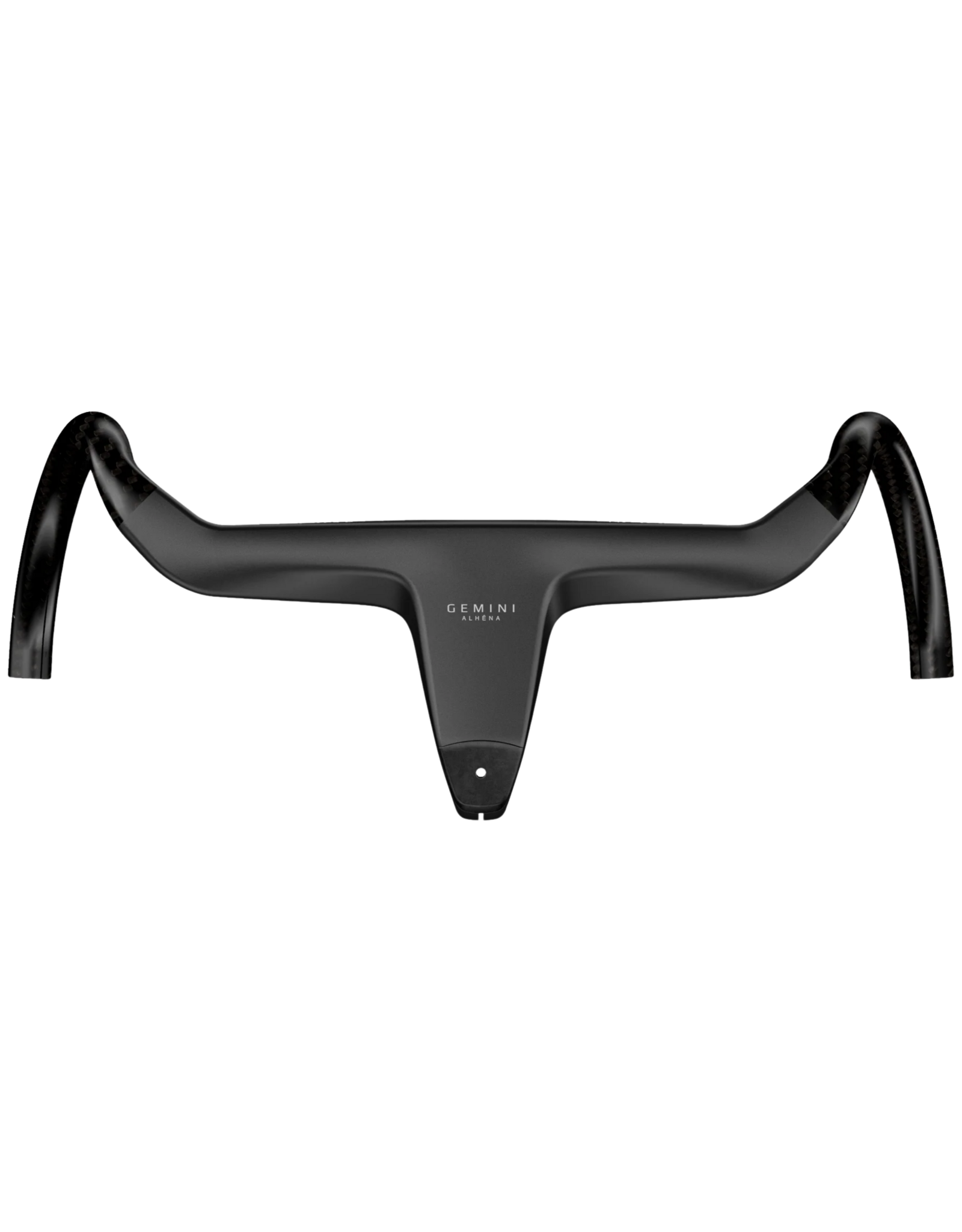

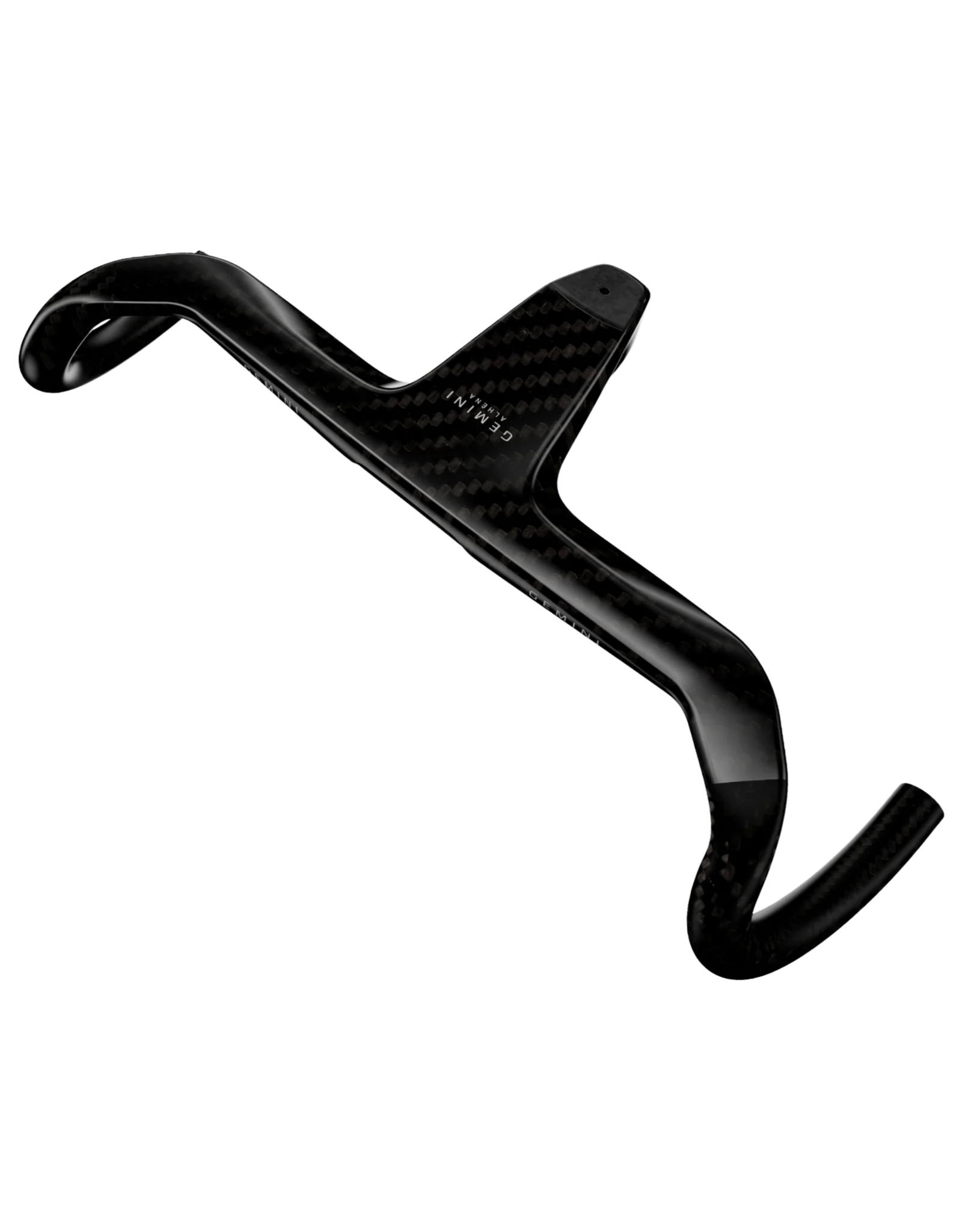

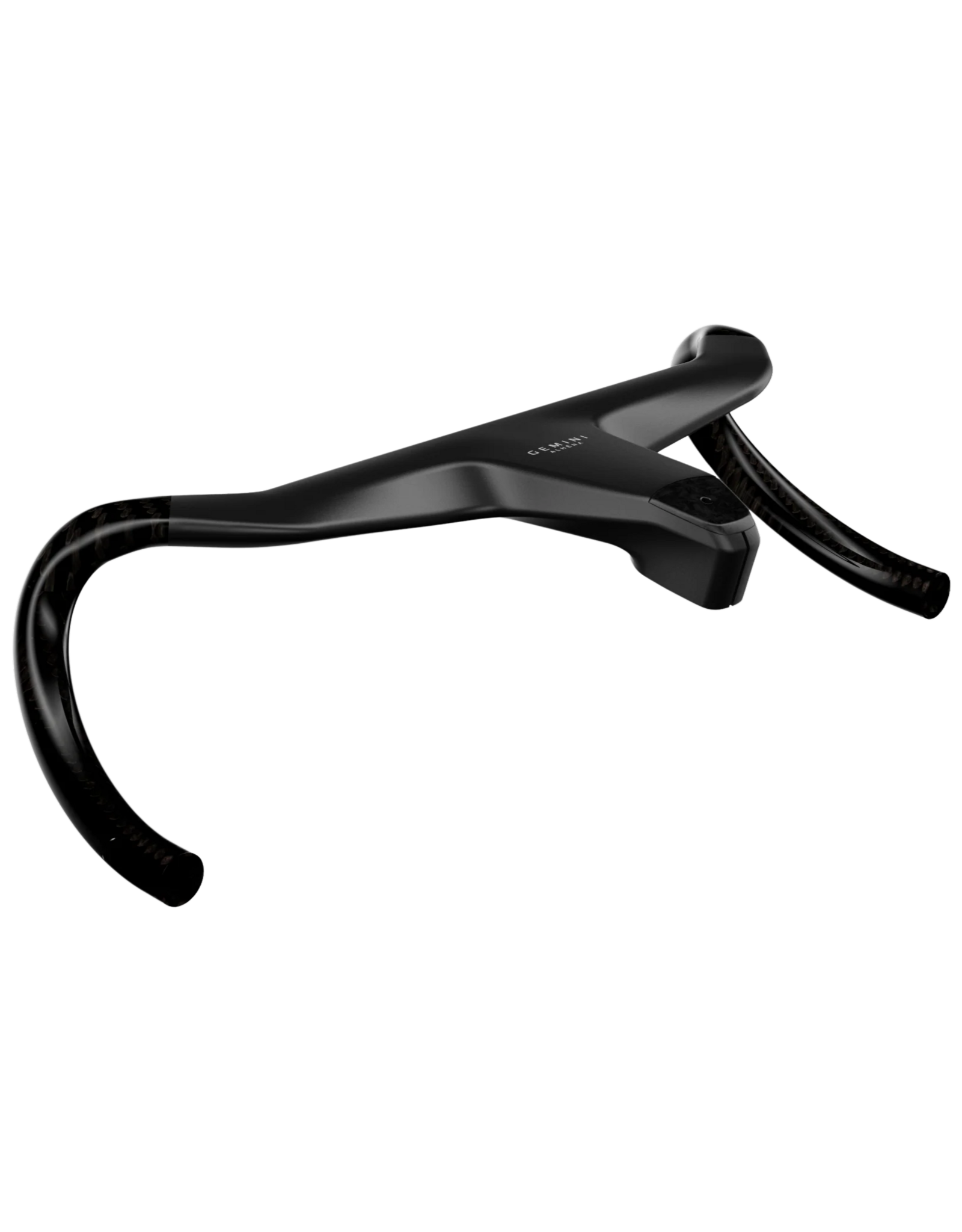

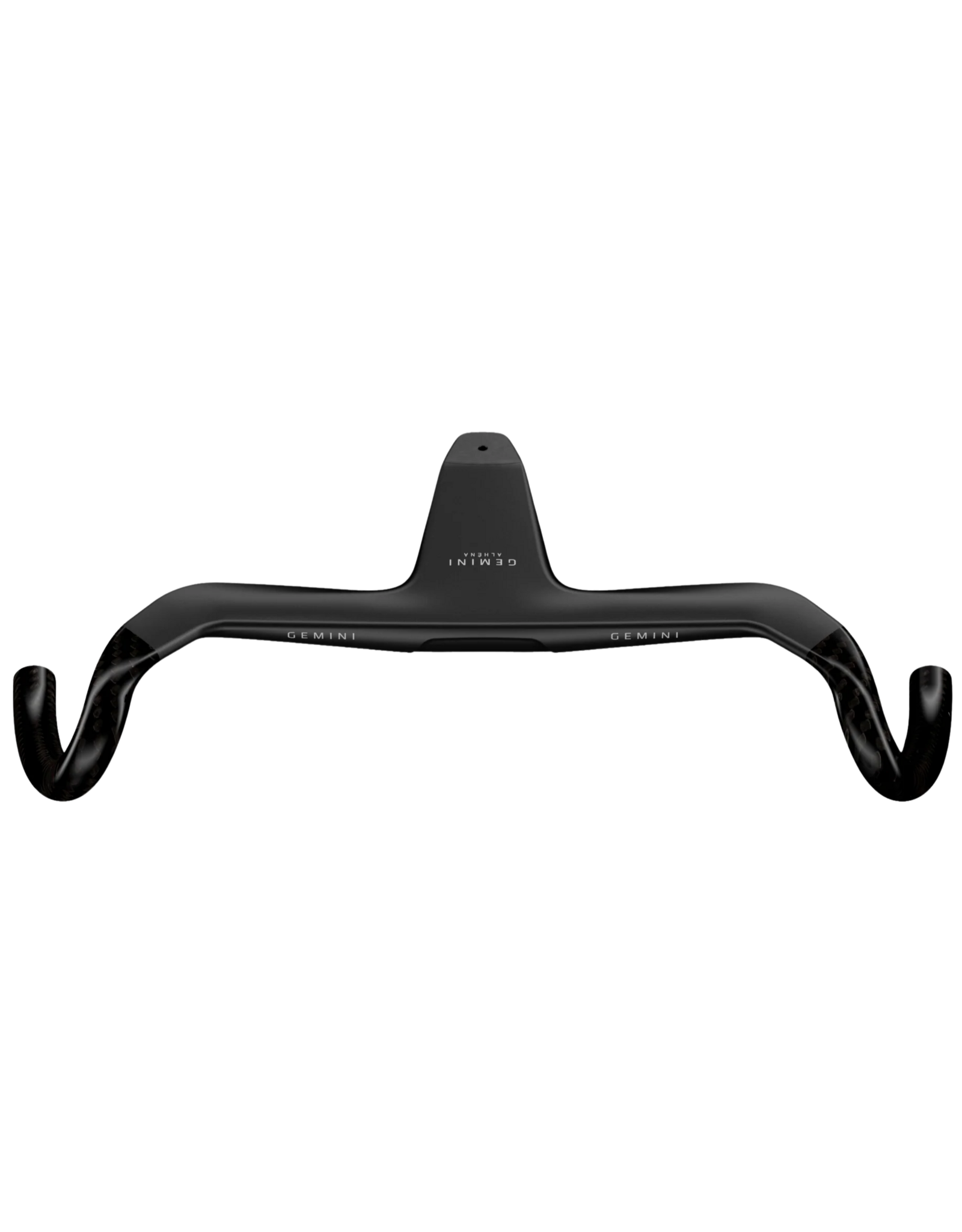

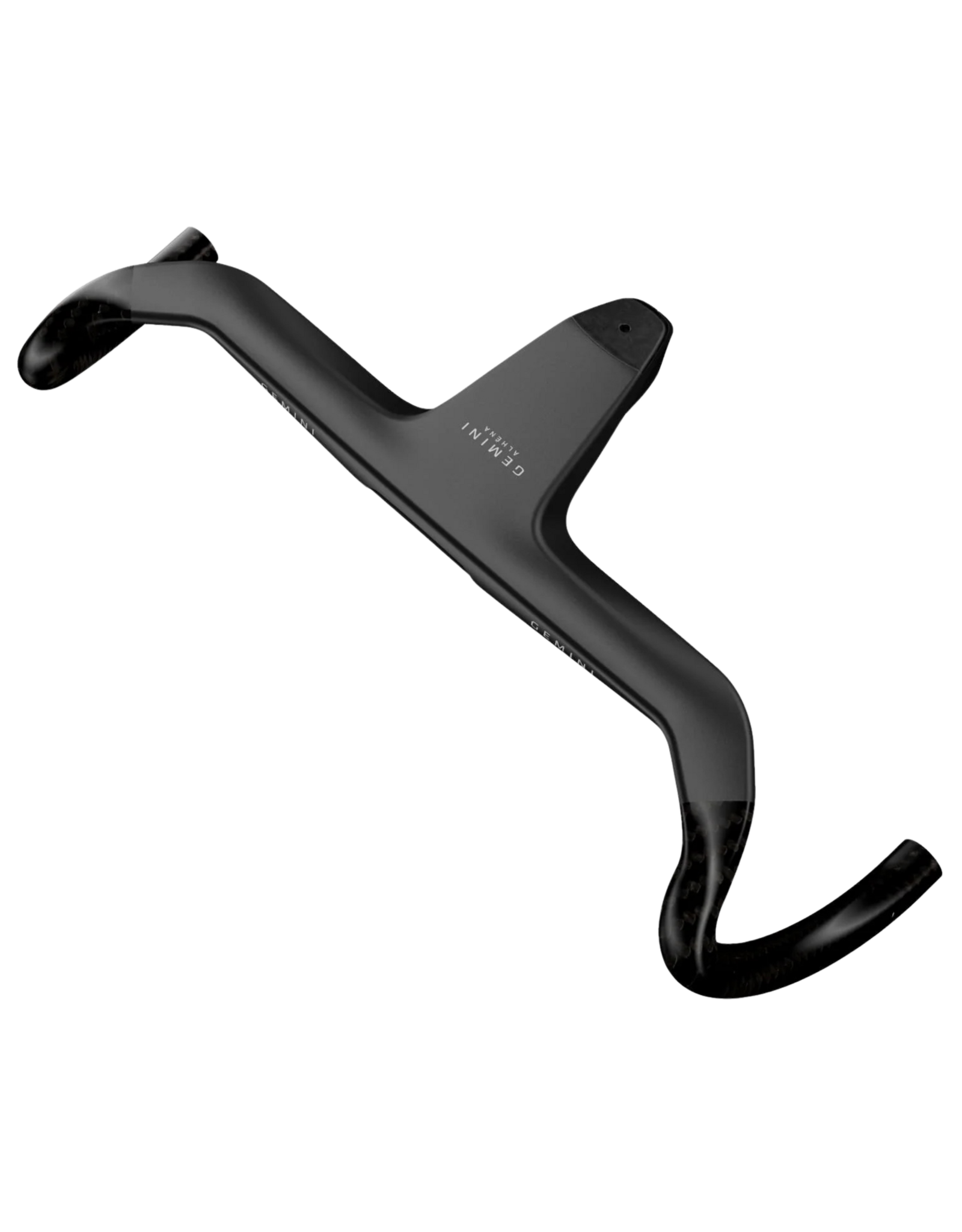

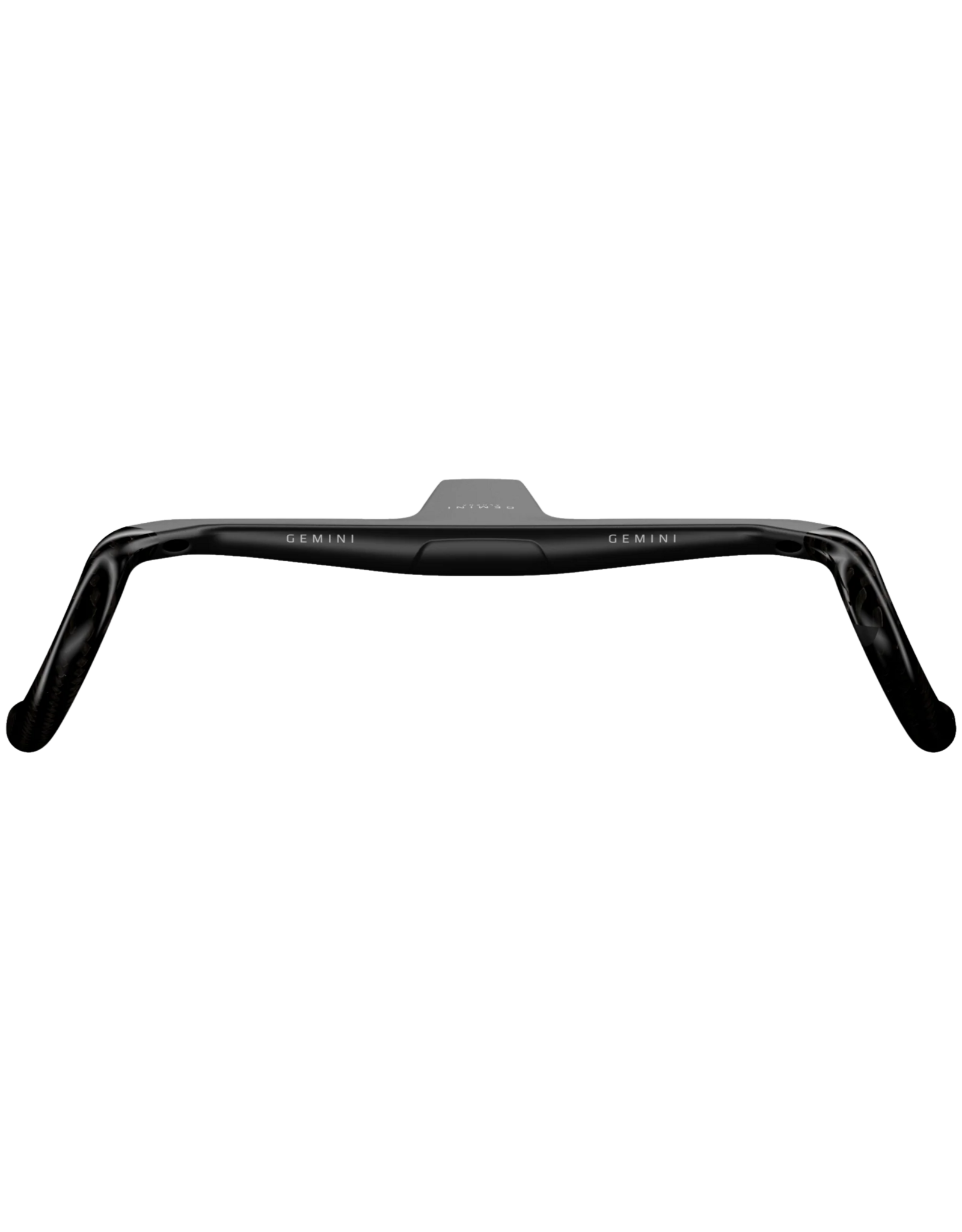

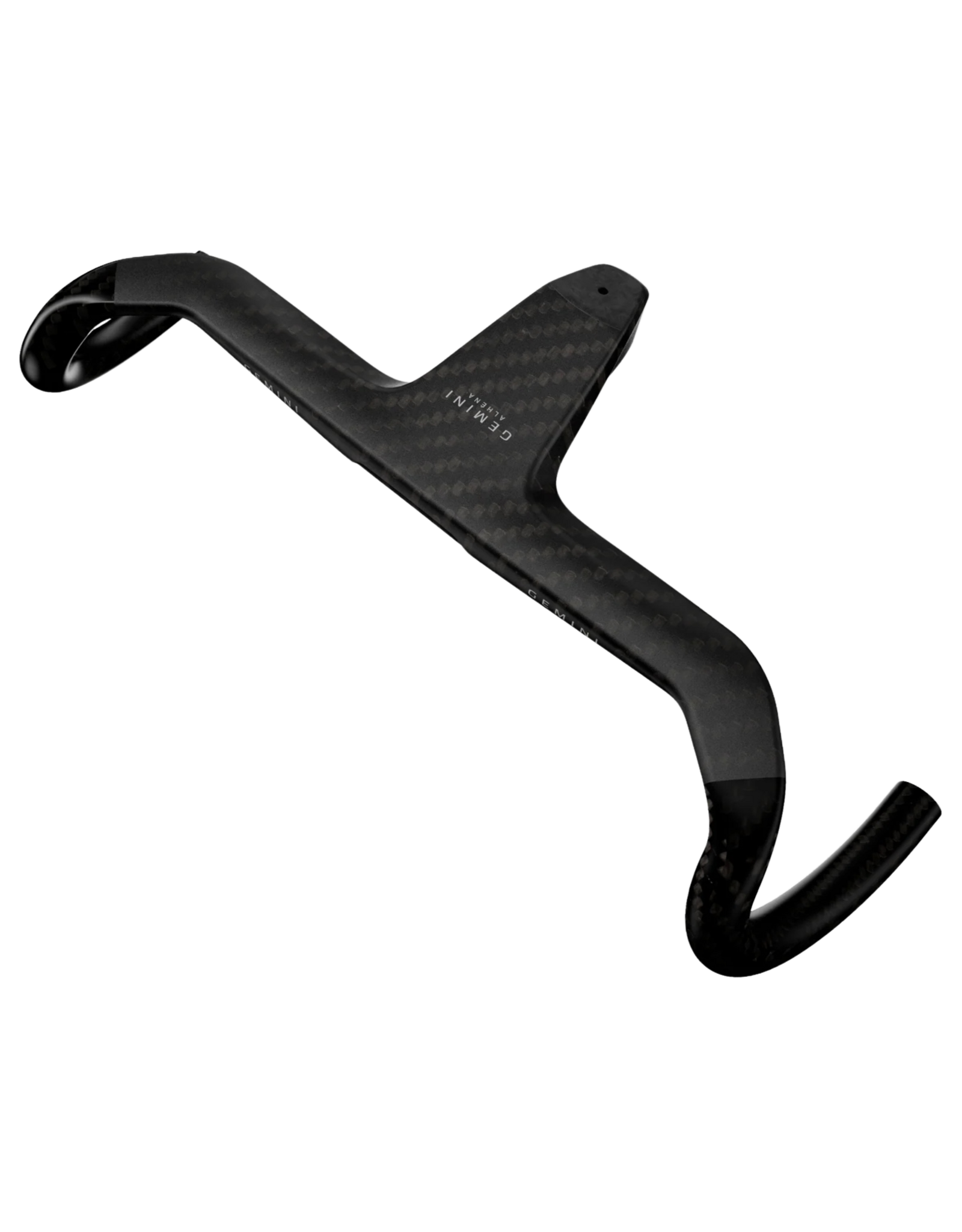

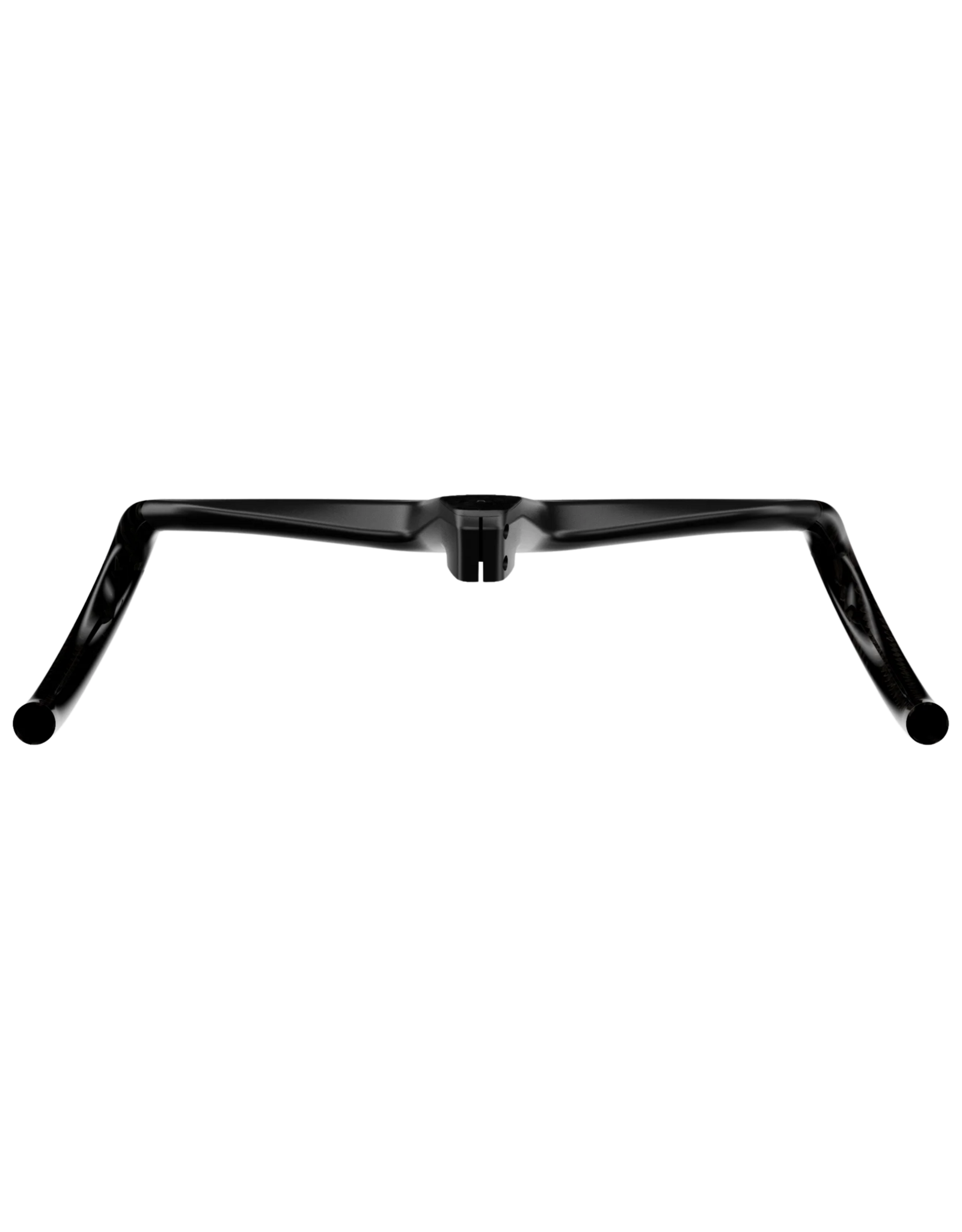

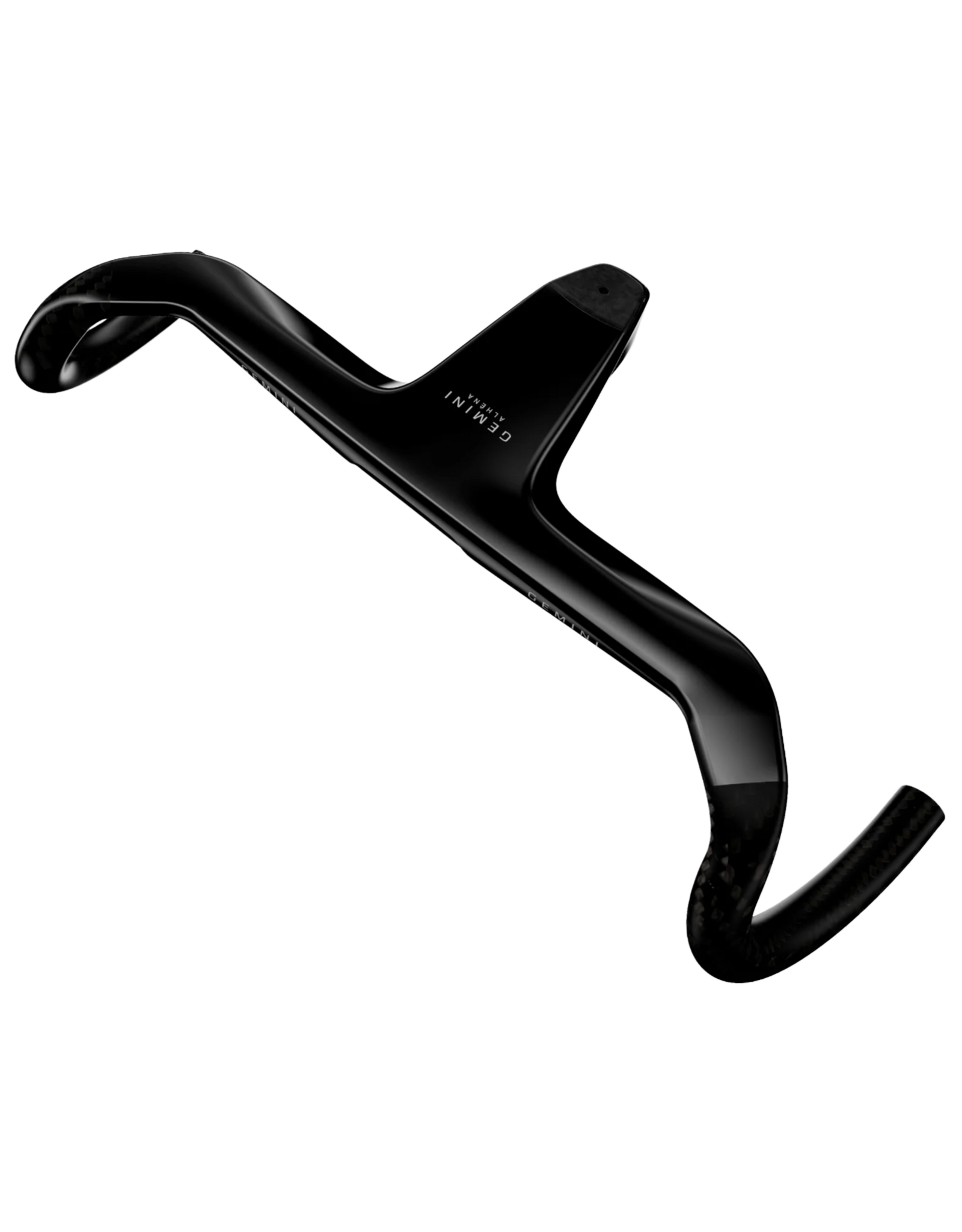

Gemini Alhëna Carbon Gravel Handlebar
| Availability: | Out of stock |
The Gemini Alhëna Integrated Carbon Gravel Handlebar is a configurable one-piece carbon cockpit for gravel and all-road bikes using internal, standard, or bike-specific routing setups. Each bar is configured by steerer standard, routing style, width, stem length, layup, and finish.
Configuration & Ordering
Alhëna handlebars are special-order items. Final compatibility, headset cover requirements, routing style, geometry, finish availability, pricing, and lead time are confirmed through Fair Wheel Bikes before ordering.
Note: Some routing versions, headset covers, stem/width combinations, and finish options can incur an upcharge.
Routing Compatibility
ICR Internal Routing
Available for 1-1/4" and 1-1/8" steerer systems using fully integrated cable routing through the headset area.
ECR / Standard Cable
Designed for bikes using external or partially integrated cable systems where full headset routing is not required.
Gravel Cockpit Fit
Gravel Geometry
Alhëna uses a compact 65 mm reach, 110 mm drop, and 24° flare for control, comfort, and bar clearance on mixed-surface rides.
All-Road Use
The shape is built for gravel, endurance, and all-road bikes where a stable flared drop, clean routing, and integrated cockpit fit are priorities.
Configuration Options
Geometry
Choose bar width, stem length, and routing configuration from the available geometry options listed below.
Layup
Available in Performance layup for increased stiffness and control. Gemini lists Performance weights from approximately 320–350 g.
Finish
Finish options include UD Matte (standard)
Upcharge:
UD Gloss, 12K Matte, and 12K Gloss.
Headset Covers
Some builds require frame-specific or routing-specific headset covers and spacer systems.
Compatible options include:
Handlebar Geometry
| Specification | Options |
| Width | 380 / 400 / 420 mm |
| Stem Compatibility | 90 / 100 / 110 / 120 mm depending on model |
| Reach | 65 mm |
| Drop | 110 mm |
| Flare | 24° |
Before Ordering
Confirm your exact frame model, frame year/generation, steerer size, cable routing style, current headset/spacer system, desired handlebar width, stem length, layup, and finish. Integrated gravel handlebars are not universal and must match the bike’s headset and routing system.
Confirm Fit & Availability
Call (520) 624-3045 or email [email protected] for compatibility, geometry selection, lead time, and final pricing.
